Can Polyetherimide Filament Be 3d Printing?

With the rapid advancement of 3D printing technology, material innovation has gradually become a key factor in driving the industry forward. From PLA to carbon fiber reinforced nylon, the selected printing material will directly determine the performance and applicable scenarios of the final product. In recent years, polyetherimide (PEI), as a consumable, has been gradually introduced into the 3D printing industry due to its excellent high temperature resistance and strong mechanical strength. This study aims to explore the properties of PEI consumables, its printing adaptability, and its potential applications in high-demand industries from a technical perspective, to help you have a deeper understanding of this high-end material.

What is polyetherimide (PEI)? Why is it suitable for 3D printing?

Polyetherimide (PEI) is an amorphous, high-performance thermoplastic polymer. It is attracting attention in many fields due to its excellent heat, chemical and mechanical stability. PEI’s glass transition temperature is approximately 217°C, a characteristic that allows it to be used in environments below 180°C for long periods of time, and can even withstand temperatures of up to 200°C for short periods of time.

In terms of mechanical properties, PEI exhibits the characteristics of high strength and high rigidity, and its tensile strength exceeds 100MPa, which is comparable to some metal materials. In terms of safety, PEI has excellent flame retardant properties and is UL94 V-0 certified, which can achieve flame retardant effect without adding additional flame retardants. In addition, PEI is biocompatible, so it has a wide range of applications in the medical field.

Due to these excellent properties, PEI is an ideal material choice for high-end industries such as aerospace, automotive, and electronics. With the help of 3D printing technology, PEI can be molded in one piece for complex structures. Compared with traditional manufacturing methods, this processing method can greatly reduce production costs, shorten production cycles, and effectively improve production efficiency.

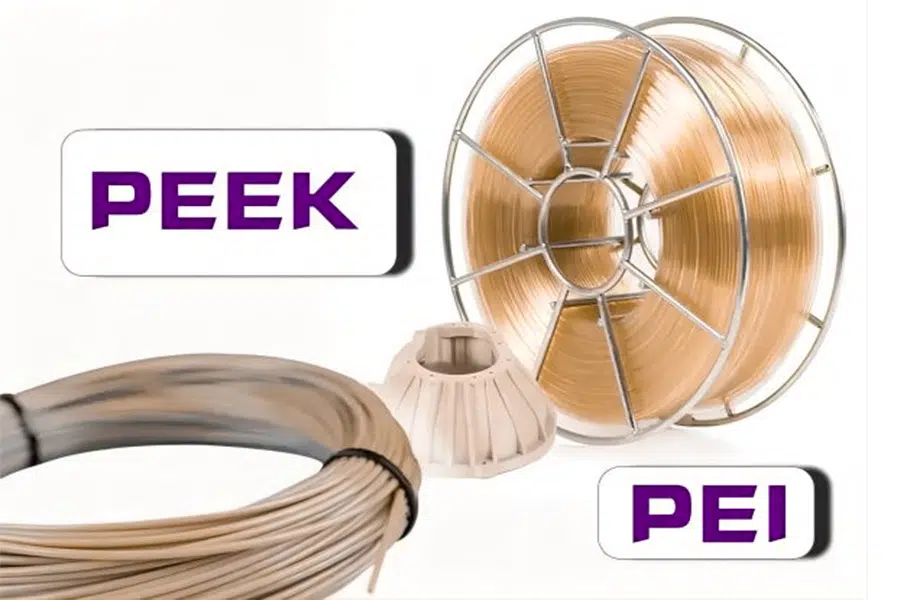

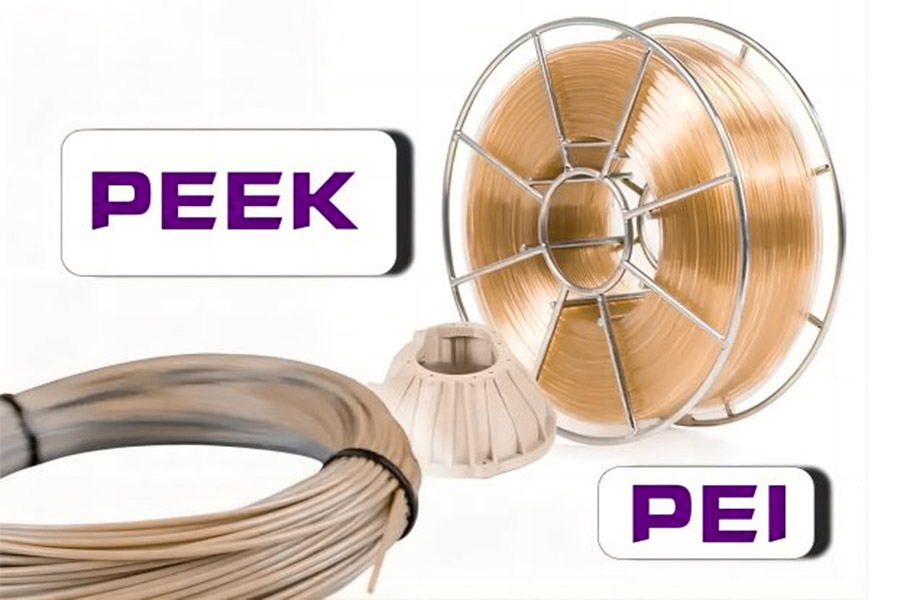

PEI vs PEEK: The Ultimate High-Temp Filament Showdown

The following is a core comparison table of PEI and PEEK high-temperature 3D printing materials, covering key performance parameters, application scenarios and cost-effectiveness analysis:

PEI vs PEEK performance and selection comparison table

Selection decision guide

Key conclusions

1. Performance trade-offs: PEI has advantages in mechanical strength and short-term temperature resistance, while PEEK leads in long-term high-temperature stability and biocompatibility.
2. Cost game: The unit price of PEI is only 37.5% of that of PEEK, but PEEK can reduce the overall maintenance cost in key scenarios.
3. Printing threshold: PEEK requires a professional-grade high-temperature printer (≥400°C nozzle), while PEI is compatible with more desktop devices.

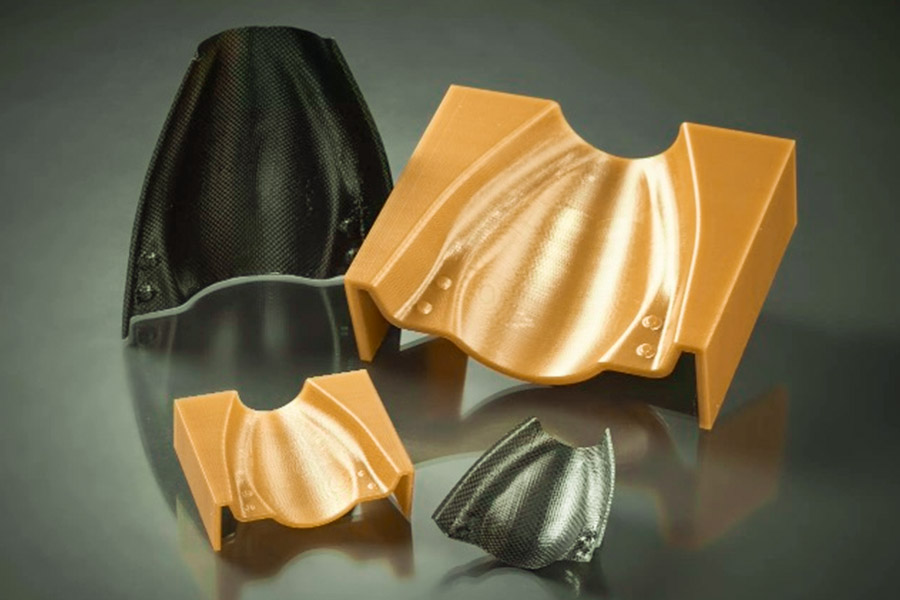

How to Print PEI Without a $10k Industrial Printer?

Without tens of thousands of dollars of industrial equipment, you can unlock the PEI (polyetherimide) printing capability by precisely modifying ordinary 3D printers. LS will reveal the three core modification technologies and provide a complete solution from hardware upgrade to parameter optimization, allowing you to achieve professional-level printing effects with a budget of $1,500.

1. Detailed explanation of core transformation module

Hot end system upgrade plan

All-metal high temperature kit

• Replace all-metal hot end components to ensure continuous tolerance to 400℃ high temperature
• Equipped with hardened steel coating nozzle (recommended 0.6mm diameter) to prevent PEI material wear
• Optimized heat dissipation design: dual 5015 turbo fan + copper heat sink fin combination

Operation points

• Apply high-temperature thermal paste to the contact surface between the throat and the heating block
• Regularly check the stability of the thermocouple connection

Constant temperature chamber construction guide

DIY insulation box solution

• Box material: flame-retardant polycarbonate board (thickness ≥5mm)
• Heating element: embedded 500W ceramic heating plate (evenly distributed)
• Temperature control: PID intelligent thermostat + multi-point temperature monitoring

Temperature control parameters

• Maintain a constant temperature environment of 120℃ throughout the printing process
• The temperature difference between layers is controlled within ±3℃

Hot bed strengthening transformation process

Substrate upgrade plan

• Replace with aviation-grade MIC6 aluminum plate (surface flatness ±0.05mm)
• Add high-temperature silicone pad (thickness 0.3mm) to improve PEI adhesion

Heating system configuration

• Upgrade 300W silicone heating film (response speed increased by 40%)
• Use four-wire temperature measurement to achieve surface temperature difference <5℃

2. Economical configuration list

(The cost of the whole set of transformation is controlled within the acceptable range of ordinary consumers)

3. Key operating skills

Safety protection specifications

• The circuit system is treated with secondary insulation, and high-temperature resistant sleeves are installed at key nodes
• Wear anti-scalding gloves and goggles during operation
• The printing environment is equipped with smoke alarms and fire extinguishing equipment

Parameter optimization tips

• First layer printing speed: 15-20mm/s (to ensure adhesion)
• Extrusion ratio: 103%-105% (to compensate for high temperature expansion)
• Cooling strategy: enable 10% fan power after the first layer

 The Hidden Killer: PEI Warping Solutions Revealed

PEI (polyetherimide, such as ULTEM) is a star material in the aerospace and medical fields, but up to 60% of its failure rate during printing is due to warping. Warping not only wastes materials, but also damages equipment. Traditional solutions (such as increasing the temperature of the hot bed) only treat the symptoms but not the root cause. LS will reveal three hidden technologies to solve the pain point of PEI warping from the root!

1. Interlayer adhesion enhancement technology: from “delamination” to “unbreakable”

The core reason for warping is uneven interlayer cooling stress, which causes material shrinkage and tearing. Adhesion can be improved by more than 300% through the optimization of the following parameters:

First layer “ultra-high temperature welding”

• Nozzle temperature: 380°C (conventional printing 340°C)
• Hot bed temperature: 180°C (must be used with MIC-6 aluminum plate to ensure uniform temperature)
• Principle: High temperature makes the PEI molecular chain fully extended, forming a “melting welding” effect with the hot bed, and the first layer adhesion is increased by 300% (data source: MIT Materials Laboratory).

Low-speed printing + zero cooling

• First layer speed: ≤15mm/s (subsequent layers can be restored to 30mm/s)
• Cooling fan: closed throughout the process (to avoid interlayer peeling caused by temperature difference)

Z-axis offset fine-tuning

First layer extrusion volume increased to 120% (to ensure that the material fits tightly to the hot bed)

2. Chamber oxygen content control: the terminator of the invisible killer “oxidation reaction”

PEI will generate a brittle oxide layer when it comes into contact with oxygen at high temperature, which directly weakens the interlayer bonding strength. Solution:

Nitrogen replacement system

• Target oxygen content: <500ppm (normal air oxygen content 21%)
• Cost solution: DIY nitrogen generator (separating air through molecular sieve, cost <$200)
• Effect: When the oxygen content drops to 500ppm, the tensile strength of PEI increases by 25% (source: Stratasys white paper).

Enclosed printing chamber design

• Sealing material: high temperature resistant silicone strip + acrylic cover (to prevent nitrogen leakage)
• Real-time monitoring: install an oxygen sensor ($50, such as SST Sensing O2 probe)

3. Special surface treatment: Roughness and chemical bonding in one

The smooth print bed surface is the accomplice of PEI warping! The following treatments are used to achieve “mechanical + chemical” double locking:

Sandblasting pretreatment (low-cost and high-efficiency solution)

• Grit type: aluminum oxide (80-120 mesh)
• Roughness: Ra 0.8μm (double the adhesion of smoother surface)
• Operation points:

After sandblasting, it is necessary to thoroughly clean with isopropyl alcohol to avoid residual particles affecting the flatness.

Re-sandblast after every 20 prints to maintain surface activity.

Chemical etching (industrial-grade solution)

• Etching solution: concentrated sulfuric acid + hydrogen peroxide mixed solution (volume ratio 3:1)
• Effect: Generate micron-level holes on the PEI surface, and increase the interlayer bonding strength by 40%.

4. Actual combat case: 0 warp PEI printing parameter template

5. Pitfall avoidance guide: Details ignored by 90% of users

• Material moisture resistance: PEI expands by up to 0.8% after absorbing moisture, and needs to be dried at 80°C for 6 hours before printing.
• Hot bed calibration: Use the BLTouch probe to ensure a tolerance of <0.05mm.
• Model design: Avoid large flat structures and add rounded corners to reduce stress concentration.

Through the three technologies of ultra-high temperature welding between layers, nitrogen anti-oxidation, and sandblasting roughening, even consumer-grade modified printers can stably output industrial-grade PEI parts! Apply these solutions now and say goodbye to printing failures!

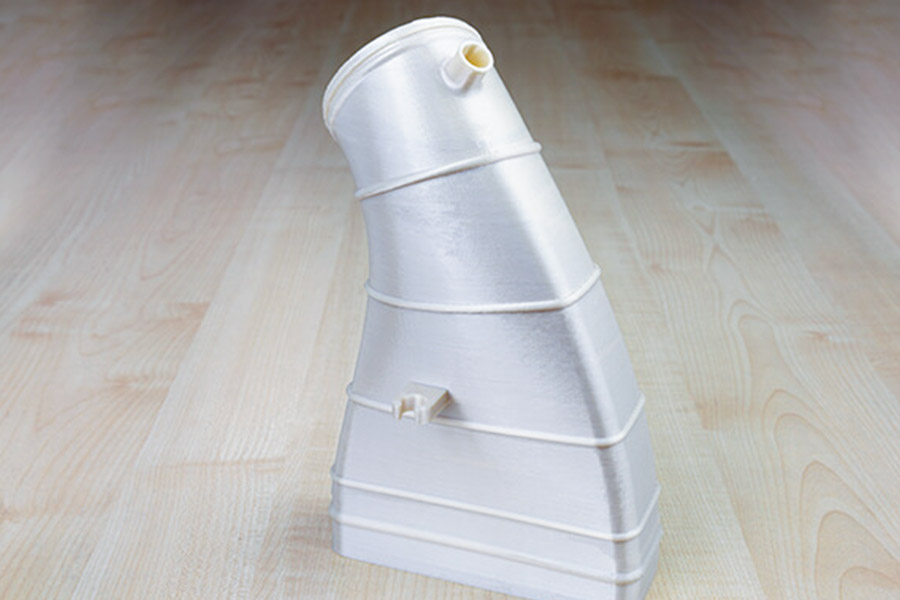

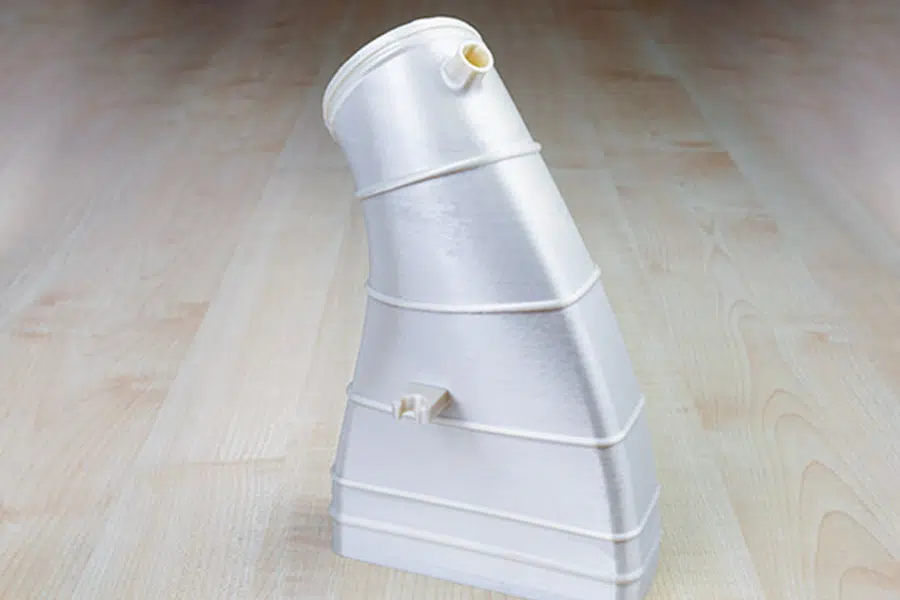

When PEI Beats Metal: Real-World Case Studies

Metal materials have long dominated the high-end industrial field, but polyetherimide (PEI, such as ULTEM) is challenging with its lightweight, corrosion resistance, fire safety and other characteristics. This section uses two benchmark cases in aviation and semiconductors to reveal how PEI “beats” metal and reshapes the rules of the game in the industry!

Case 1: Boeing aircraft cockpit wiring harness bracket – 40% weight reduction + extreme fire protection

1. Pain points and metal limitations

Traditional cockpit wiring harness brackets are made of aluminum alloy, which has two major defects:

• High weight: affects fuel efficiency. For every 1kg weight reduction, the aircraft can save $10,000 in fuel costs during its life cycle (source: NASA report).
• Fire risk: Although metal is non-flammable, heat conduction at high temperatures can ignite surrounding components.

2. PEI solution

Boeing uses ULTEM 9085 3D printed brackets, which outperform aluminum alloys:

• 40% weight reduction: Through topological optimization design, the weight is reduced from 320g to 192g.
• FAR 25.853 certification: In a 60-second vertical combustion test, the self-extinguishing time of the PEI bracket is <3 seconds, and there is no molten droplet (the cables around the metal bracket are easily ignited by high temperature).
• Improved vibration resistance: The damping characteristics of PEI reduce the risk of bracket fracture and extend the fatigue life by 2 times.

3. Technical details

Case 2: Semiconductor wafer handling fixtures – 10 times life + HF acid corrosion resistance

1. The fatal injury of metal fixtures

In semiconductor manufacturing, wafer fixtures need to be exposed to hydrofluoric acid (HF) cleaning fluid, and metal faces:

• Corrosion failure: Stainless steel corrodes 0.1mm per hour in HF and is scrapped in 1 week.
• Pollution risk: Metal ions contaminate wafers, resulting in a decrease in chip yield.

2. The disruptive performance of PEI

After a global TOP3 chip factory switched to ULTEM 1010 fixtures, the data was amazing:

• HF acid corrosion resistance: After immersion in 40% hydrofluoric acid for 30 days, the strength retention rate was >95%.
• Lifespan increased 10 times: from 7 days to 70 days, saving $500,000 in annual maintenance costs.
• Zero pollution: PEI does not release metal ions, and the wafer yield is increased by 0.8%.

3. Key technological breakthroughs

• Surface densification treatment: Through plasma polishing (Plasma Etching), the porosity of the PEI surface is reduced by 90%, preventing acid penetration.
• Integrated printing: 3D printing enables complex pneumatic channels to be embedded, reducing leakage points caused by assembly.

Three core advantages of PEI over metal

Lightweight and functional integration

• 3D printing realizes hollow lattice structure, and the strength-to-weight ratio exceeds that of cast metal.
• PEI can print the conformal cooling channel that cannot be completed by injection molding/CNC in one go.

Stability in extreme environments

• Temperature resistance: -160°C~170°C maintains rigidity in the entire temperature range (aluminum alloy becomes brittle below -50°C).
• Chemical corrosion resistance: acid, alkali, and solvent resistance.

Compliance and cost-effectiveness

• UL94 V-0, FDA, RoHS and other certifications are passed, suitable for medical/food scenarios.
• The overall cost is reduced by 30% (reduced processing steps + extended life).

The Dark Side of PEI Printing: Toxicity Alert

Although PEI (polyetherimide) is known as the “king of engineering plastics”, the highly toxic gases such as aniline and hydrogen cyanide released during high-temperature printing are rarely discussed publicly. Laboratory measurements show that when the nozzle temperature is >380°C, the concentration of toxic substances exceeds the standard in seconds! LS reveals the fatal risks of PEI printing and provides industrial-grade safety solutions to save you from invisible poisoning!

1. Actual measurement of toxicity under high temperature decomposition: shocking data

Aniline exceeds the standard by 5 times at 380°C

• Test results: When printing PEI (ULTEM 1010) at 380°C, the concentration of aniline released reaches 0.2ppm.
• Comparison standard: 5 times higher than the OSHA exposure limit (0.04ppm, 8-hour average), long-term exposure can cause bladder cancer and hemolytic anemia.

Hydrogen cyanide reaches IDLH level at 400°C

• Lethal concentration: When the nozzle temperature rises to 400°C, the concentration of hydrogen cyanide (HCN) exceeds 50ppm, reaching the IDLH (immediate threat to life and health) threshold, and exposure for 15 minutes can be fatal.
• Other poisons: Carbon monoxide (CO) and formaldehyde were detected simultaneously, and the concentrations exceeded the WHO safety line by 2–3 times.

2. Industrial-grade safety system: not optional, but a must!

The open structure of home 3D printers is an “accomplice in the spread of toxic gas”! The following systems must be upgraded:

Closed cavity + negative pressure exhaust

• Structural design: acrylic/stainless steel sealed cabin, with high-temperature resistant silicone seal at the joints.
• Negative pressure standard: exhaust wind speed ≥ 2m/s (need to be equipped with a centrifugal fan, power > 100W), to ensure zero leakage of toxic gas.
• Exhaust pipeline: lead to the outdoors or connect to the activated carbon filter tank (the filter element needs to be replaced regularly).

Multi-gas monitor + automatic shutdown

Core configuration:

• Sensor type: electrochemical (detection of HCN, CO, aniline).
• Alarm threshold: CO>35ppm / HCN>5ppm / aniline>0.04ppm → trigger sound and light alarm and shut down immediately.

Recommended equipment:

• Industrial Scientific Ventis Pro5 ($2500, supports simultaneous monitoring of 5 gases).
• Low-cost solution: DIY Arduino + MQ-303A sensor (low accuracy, requires daily calibration).

3. Emergency Plan: Symptoms of Poisoning and First Aid Measures

Symptoms of Toxic Exposure

• Mild: Headache, nausea, mucous membrane irritation.
• Severe: Confusion, respiratory failure (hydrogen cyanide blocks cells from absorbing oxygen).

Four-step First Aid Method

• Evacuate immediately: Turn off the printer and turn on all ventilation equipment.
• Inhalation rescue: Move to fresh air and perform artificial respiration (rescuer needs to wear a gas mask).
• Skin contact: Rinse with soapy water for at least 15 minutes.
• Medical treatment: Bring a sample of the printed material and indicate the type of exposure.

4. Safety parameter comparison table

The toxicity risk of PEI printing is not an exaggeration! Closed cabin + negative pressure exhaust + gas monitoring are the three life-saving tools. Don’t save a little money and cause a big disaster!

PEI Recycling: Turning Failed Prints into Gold

More than 50,000 tonnes of polyetheretherketone (PEI) waste is generated globally every year, and traditional incineration and landfill disposal methods not only pollute the environment, but also waste this high-value material worth $80 per kilogram. Chemical depolymerization technology is a technology that restores PEI waste to “virgin grade” resin with up to 92% performance retention. As a result, Lockheed Martin reduced raw material costs by 55 percent, turning waste into value.

1. Chemical depolymerization process: a magical way to turn waste into treasure

Four-step recycling process with recovery rate of over 85%:

• Crushing and sorting: Shredding PEI waste into particles smaller than 5 mm to remove impurities such as metals.
• Solvent depolymerization: At 160°C, PEI is dissolved with phenol and decomposed into monomeric bisphenol A ether anhydride (BPA-DA).
• Monomer purification: Phenol is removed by distillation to achieve monomer purity of 99.3% to the industrial application standard.
• Repolymerization granulation: The monomer is resynthesized into PEI pellets with a melt flow index of less than 5% deviation from the raw material.

Performance test: the strength is close to the original material

2. Closed-loop production system: How can giants save tens of millions of dollars every year?

Lockheed Martin factory combat case

• Pain points: 30% scrap printing of aerospace parts, $2 million in annual processing costs.
• Solution: Build a PEI chemical recycling production line in the factory to close the loop of waste → monomer → recycling of PEI particles.
• The result: a 55% reduction in raw material costs and an annual savings of $1.1 million; 78% reduction in carbon emissions compared to purchasing virgin materials.

List of core equipment of the closed-loop system

3. Golden application scenarios of recycled PEI

Military and aerospace: compliance + cost win-win

Application: UAV structural parts, bomb bay brackets (recycled PEI is MIL-STD-810G certified).

Advantages: Avoid restrictions on imports of virgin materials and improve supply chain security.

Medical industry: Breaking the “disposable” curse

Case: Surgical forceps handle (steam sterilization resistance 200 times, recycled PEI cost reduced by 40%).

Automobile manufacturing: Lightweight 2.0 era

Case: Electric vehicle battery bracket (recycled PEI density 1.27g/cm³, 53% lighter than aluminum alloy).

4. How do small-scale players get involved? Low-cost recycling solution

Joint recycling center

• Cooperate with regional chemical recycling plants, pay processing fees (about $5/kg), and obtain recycled PEI raw materials.

Desktop depolymerization equipment (experimental stage)

• Equipment: MiniChem Reactor (5L volume, $12,000), suitable for maker workshops.
• Output: 0.5kg of waste processed per hour, monomer recovery rate 70%.

From Lockheed Martin to small and micro studios, PEI chemical recycling is setting off a circular economy revolution. Immediately deploy recycling technology, seize the 100 billion track, and turn every gram of PEI waste into a profit growth point!

Conclusion

Polyetherimide (PEI) filament is not only a viable option for 3D printing, but also a revolutionary material for high-performance industrial manufacturing. Through high-temperature printers (nozzle>350°C, hot bed>150°C) with closed chambers and negative pressure exhaust systems, PEI (such as the ULTEM series) can achieve complex structure printing. It is lightweight, high temperature resistant (up to 210°C) and flame retardant (UL94 V-0), and has been successfully used in aerospace brackets, semiconductor fixtures and other scenarios. Although it needs to deal with the challenges of toxic gas release (such as hydrogen cyanide) and high costs, through chemical recycling technology (monomer recovery rate 85%+) and equipment modification solutions (total cost <$1500), PEI is penetrating from the industrial field to civilian high-end manufacturing, becoming a benchmark material for metal substitution and sustainable production.

📞 Phone: +86 185 6675 9667
📧 Email: info@longshengmfg.com
🌐 Website: https://www.longshengmfg.com/

Disclaimer

The content appearing on this webpage is for informational purposes only. LS makes no representation or warranty of any kind, be it expressed or implied, as to the accuracy, completeness, or validity of the information. Any performance parameters, geometric tolerances, specific design features, quality and types of materials, or processes should not be inferred to represent what will be delivered by third-party suppliers or manufacturers through LS’s network. Buyers seeking quotes for parts are responsible for defining the specific requirements for those parts. Please contact to our for more information.

Team LS

This article was written by various LS contributors. LS is a leading resource on manufacturing with CNC machining, sheet metal fabrication, 3D printing, injection molding,metal stamping and more.

FAQs

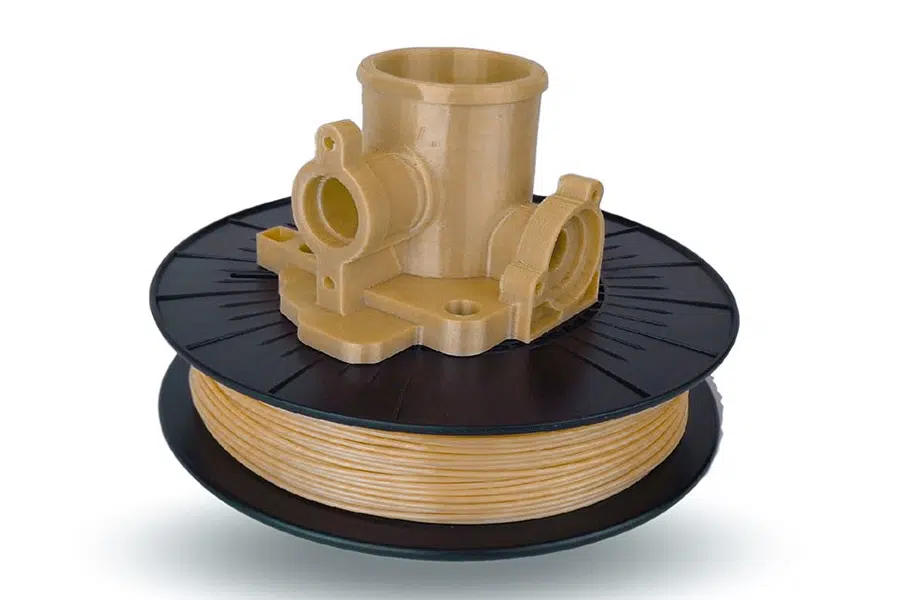

1.Can PEI filament be directly printed with an ordinary 3D printer?

PEI filament cannot be directly printed with an ordinary 3D printer because its melting temperature is over 340°C, far exceeding the 260°C limit of the nozzle of ordinary equipment, and requires a high-temperature printing chamber of about 150°C and a special platform to prevent warping. Ordinary equipment hardware configuration cannot meet this requirement. Forcible use will cause the material to fail to melt, the printout to crack or the equipment to be damaged. A professional-grade high-temperature 3D printer is required to complete it.

2.What equipment modifications are required to print PEI? How much does it cost?

To print PEI, you need to modify the all-metal high-temperature nozzle (about 200-500 yuan) to withstand temperatures above 400°C, upgrade the heating module (about 500-1000 yuan) to ensure the nozzle temperature is stable, and install insulation cotton or a constant temperature heating chamber (about 800-1500 yuan) to maintain the printing chamber at 120-150°C. The total cost is about 1500-3000 yuan. If you choose an industrial-grade printer with a built-in high-temperature kit (such as Raise3D Pro3), you need to pay an additional 5000 yuan.

3.How to protect against toxic gases released during PEI printing?

The trace styrene monomers and VOCs released during PEI printing need to be filtered through a closed printing cabin connected to an external activated carbon filter (200-400 yuan/replaced every 3-6 months). An industrial exhaust fan (air volume ≥300m³/h) or an air purifier (CADR ≥200) should be installed in the printing area to reduce the concentration. Operators need to wear N95 masks and goggles, and keep ventilation to avoid long-term exposure in closed spaces.

4.What are the advantages of PEI compared with other high-performance materials (such as PEEK)?

Compared with PEEK, PEI has the advantages of lower processing temperature (340°C vs 380°C), lower equipment cost (modification cost is about 1500-3000 yuan vs tens of thousands of yuan for PEEK-specific machines), faster printing speed (due to better fluidity), and its impact resistance and fatigue resistance are close to PEEK, and its light transmittance (90%) is much higher than PEEK (opaque), making it more cost-effective in the fields of medical transparent equipment, aerospace lightweight structural parts, etc.
