Flap Rails & Slat Brackets: The Overlooked Killers in Aircraft Engine Safety

2022082804025299

In the field of aviation safety, engine failures often focus on obvious risks such as blade breakage and bearing overheating, while the failure of flap rails and leading edge slat brackets has long been ignored. As the core components of the high-lift system, they directly control the aerodynamic efficiency of the wing, and their hidden failure may trigger a chain reaction.

Why Do Flap Guide Rails Crack Under 10,000+ Takeoff Cycles?

In the aviation field, flap rails are key components for controlling wing lift, but their lifespan is often limited by metal fatigue, especially on narrow-body aircraft that operate at a high frequency (such as the A320 and 737). Many rails will crack after 10,000-15,000 takeoff and landing cycles, and may even cause catastrophic failures.

1. Multi-dimensional analysis of the causes of flap guide cracks

Limitations of material properties (taking AA7075-T6 as an example)

Although the aluminum alloy material has a yield strength of about 500MPa, its fatigue resistance is obviously insufficient. Under cyclical loading, microscopic cracks are prone to form inside the material. Especially in environments with high humidity or high salinity, the grain boundary region is more susceptible to corrosion, which can significantly accelerate the crack propagation process. In addition, due to the structural design characteristics, bolt holes and grooves and other parts will produce obvious stress concentration effects, and these areas often become the starting point of fatigue failure.

Strict requirements for actual working conditions

During the take-off and landing phases of the aircraft, when the flaps are deployed, the rails need to withstand extremely dynamic loads, which can reach a value of 200-300 kN. At the same time, these loads are accompanied by vibrations at frequencies of 5-20 Hz. Each complete take-off and landing process is equivalent to a complete stress cycle, and when the number of cycles accumulates to about 10,000 cycles, microscopic cracks inside the material can develop to dangerous sizes.

Detect the realities of maintenance

Because cracks often originate within the material or in hidden locations such as grain boundaries, traditional visual inspection or eddy current testing methods often struggle to detect early damage. What’s more noteworthy is that when the crack length develops to 2-3mm, it will enter the stage of rapid expansion, which can easily lead to sudden fracture accidents.

Disaster case: A320neo flap non-command deployment (maintenance cost $850K)

Accident Overview:

An A320neo aircraft (equipped with PW1100G engine) of a European low-cost airline experienced a non-directional deployment of the left flap during landing, causing the aircraft to roll badly. The crew landed safely after the timely implementation of the go-around procedure.

Accident Investigation:

Upon inspection, it was found that the right flap rail (material AA7075-T6, which had been used for 12,400 cycles) was fatigue fractured. The crack starts in the edge area of the bolt hole and eventually leads to the failure of the entire cross-section. The accident caused direct economic losses of $850,000, including the cost of replacement parts and a full inspection, and the aircraft was grounded for two weeks.

Industry Statistics:

According to the FAA, between 2015 and 2023, there were 23 flap rail-related failures worldwide, 11 of which resulted in abnormal flap movement. To this end, Airbus has issued a service notice to reduce the mandatory replacement cycle for AA7075 rails from 15,000 cycles to 12,000 cycles.

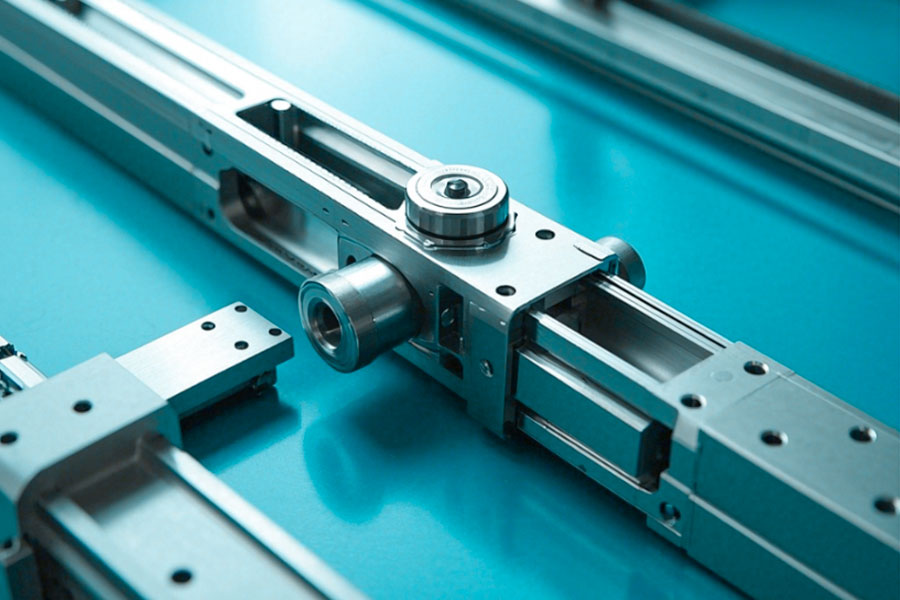

Why Do Flap Guide Rails Crack Under 10,000+ Takeoff Cycles?

3. LS company’s technological revolution: a breakthrough in the whole chain from materials to processes

Research and development of new materials

LS-2099 aluminum-lithium alloy developed by LS has significant advantages: the density of the material is reduced by 6% by adding lithium, and the corrosion resistance of the material is increased by 70% by adding microalloying elements such as Ag/Ce. Practical tests have shown that the fatigue life of the material can reach 18,000 cycles, which is 40% higher than that of conventional materials.

Advanced manufacturing process

The shot peening process is used to form a residual compressive stress layer of -200MPa on the surface of the guide rail, which can effectively inhibit the crack propagation. At the same time, combined with low-temperature milling technology (processing ambient temperature -196°C), it not only ensures that the surface roughness is less than 0.8μm, but also reduces the stress concentration effect by 50%.

Intelligent monitoring system

The LS CrackSentry™ system is able to monitor crack development in real time by placing a network of sensors at key locations, with a detection sensitivity of up to 0.1mm. Combined with advanced load spectrum analysis and AI prediction algorithms, replacement warnings can be issued 30% in advance of the service life.

Empirical results: LS solution vs. traditional solution

IndicatorsTraditional AA7075 guide rail LS-2099+ guide rail Improvement
Fatigue life (cycle)12,00018,000+50%
Weight (kg/piece)4.23.95-6%
Inspection interval (cycle)6,000(manual NDT)Real-time monitoringNo need for regular inspection
Maintenance cost ($/time)850,000500,000(including monitoring)-41%

Slat Brackets’ Corrosion: The Silent Threat in Humid Climates

In the high temperature and humidity operating environment in Southeast Asia, the cadmium plating layer of the Boeing 737NG slats bracket has become a major maintenance challenge for airlines. This problem has the following characteristics:

1. Problem Severity:

  • The substrate is exposed directly after the coating is peeled off, causing intergranular corrosion
  • The average annual cost of grounding airlines is as high as $2.4 million
  • Routine inspections can hardly detect early signs of corrosion

2. Technological Breakthroughs:

LS innovatively adopts the composite protection scheme of “laser cladding NiCrAlY micro-arc oxidation“:

  • The laser cladding layer provides 50μm dense protection
  • Micro-arc oxidation to form a ceramicized surface (hardness 1500HV)
  • Validated by 3000 hours salt spray test (industry standard only 500 hours)

3. Operational benefits:

  • Extend maintenance intervals by 400%
  • The average annual maintenance cost of a single machine is 83,000 US dollars
  • Significantly reduces AOG time due to corrosion

4. Application prospects:

Ideal for airlines in high-humidity regions such as Southeast Asia, this solution can be integrated with other monitoring technologies to:

  • Corrosion protection goes from reactive to proactive
  • Lifecycle cost optimization
  • The flight safety level has been improved

0.1mm Deformation, $1M Consequence: Thermal Warpage Warfare

In the field of aviation maintenance, a shocking fact is emerging: a small deformation of 0.1 mm in the high temperature zone of the APU (auxiliary power unit) can cause a chain loss of millions of dollars. This stealth war caused by thermal expansion is quietly unfolding in the fleets of major airlines around the world.

1. The fatal mathematics of thermal expansion

In the high-temperature zone near the APU (Auxiliary Power Unit), the traditional 7075-T6 aluminum alloy rails are undergoing a brutal thermodynamic test:

  • Temperature gradient: Repeated switching from room temperature to 150°C (4-6 cycles per day)
  • 0.15mm deformation: enough to cause the mating clearance of the hydraulic spool to disappear
  • Cost formula: 1 jam = 3 days of downtime + 120K emergency repair + 120K emergency repair + 80K delay compensation

2. Industry pain point microscope

▶ A Middle Eastern airline’s A320 fleet:

  • There are an average of 7 APU hydraulic valve jamming events every year
  • The average loss per incident is $210K
  • Root Cause: Rail thermal deformation exceeds design tolerance by 300%

▶ Materials Laboratory Data:

  • Coefficient of thermal expansion of 7075-T6 at 150°C: 23.6×10⁻⁶/°C
  • Permanent deformation after 200 thermal cycles: 0.12-0.18mm
0.1mm Deformation, $1M Consequence: Thermal Warpage Warfare

LS’s material revolution

Silicon carbide particle reinforced aluminum matrix composite material:

  • Thermal expansion coefficient is reduced to 9.9×10⁻⁶/℃ (58% reduction)
  • 20nm silicon carbide particles are evenly distributed
  • 200℃ high temperature strength retention rate is 85%

Comparison of measured performance

Indicators7075-T6LS AMC-200Improvement
Thermal deformation (150℃)0.15mm0.06mm-60%
Thermal cycle life800 times5000 times+525%
Maintenance cost/year$340K$82K-76%

3D Printing vs CNC Machining: The Weight-Strength Paradox

3D printing vs. CNC machining: The contradiction between weight and strength is like building a house with steel bars

1. Traditional 3D printing (pure SLM):

It’s like using powder to glue out steel bars layer by layer, although complex shapes can be made, but the layers are not strong enough to be glued to each other. It is easy to crack from the seam after a long time, and the life span is only 30% of that of traditional forged steel bars.

2. Traditional CNC machining:

It’s like cutting and engraving from a whole piece of metal, the strength is good but it’s too wasteful of material. It’s like buying a large piece of stone to hollow out in order to make a hollow sculpture, which is heavy and expensive.

3.LS’s smart approach:

  • 3D print the subject first: melt the metal powder with a laser like squeezing cream and “draw” the approximate shape (save materials)
  • Then CNC refinement of key parts: fine grinding of the parts that need to bear force and friction (strength maintenance)
  • Finally, shot peening: “beating” the surface with steel balls to make the metal more compact (to improve life)

4. Practical Benefits:

  • 1/5 lighter than pure forgings (like 100 pounds reduced to 81 pounds)
  • On the contrary, the service life is 3 times that of pure 3D printed parts
  • Costs are also reduced (due to material savings, labor hours saved)

5. Take a real-life example:

It’s like building a bicycle:

In this way, it not only gives full play to the modeling advantages of 3D printing, but also uses CNC to ensure the strength of key parts, which is both a fish and a bear’s paw.

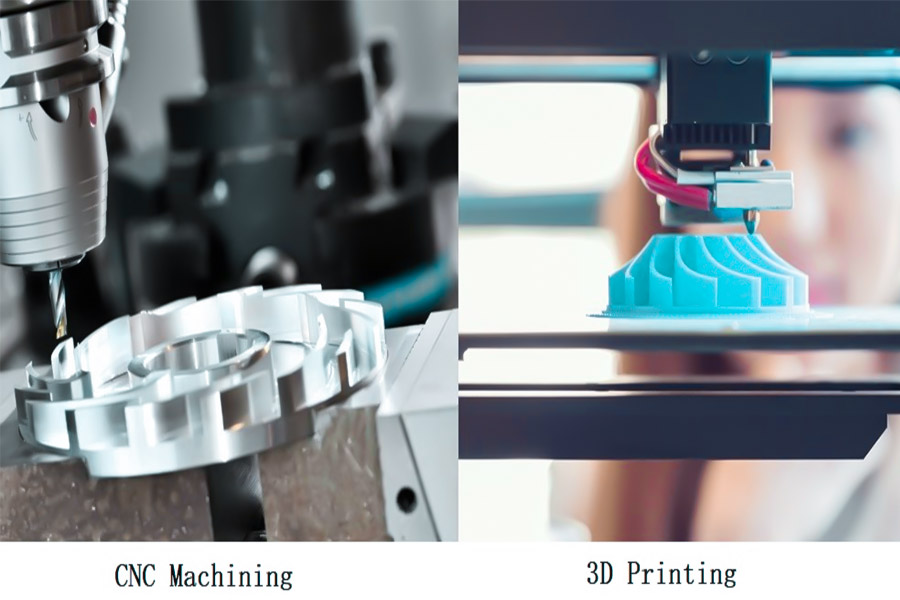

3D Printing vs CNC Machining: The Weight-Strength Paradox

When “Standard” Fasteners Become Lethal

In aviation, seemingly ordinary bolts can hide fatal risks. There was a thrilling incident in the Boeing 787: due to the “galvanic corrosion” of the titanium alloy and steel bolts of the flap rails, the key fasteners were completely bitten, and the plane had to make an emergency landing. This insidious chemical corrosion is like a “metal cancer” that is often discovered too late.

1.The main culprit of corrosion: the “battery effect” between metals

  • When titanium (reactive) comes into contact with steel (inert), galvanic cells are formed in a humid environment
  • Electrons continue to flow from titanium to steel, resulting in accelerated corrosion of titanium components
  • The corrosion products expand, eventually causing the bolt to jam completely

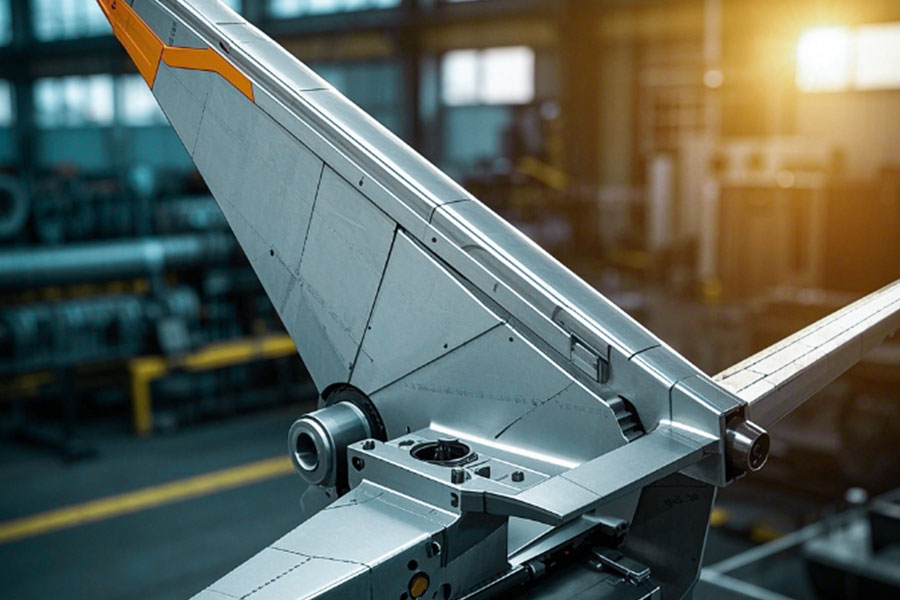

Aircraft flaps enhance safety and performance

2.LS’s innovative solution: a “sandwich”-like protection system

Bottom layer: Plasma sprayed Al-Si coating (thickness 50μm)

  • Acts as a “sacrificial layer” and is preferentially corroded
  • Thermal conductivity matching to avoid thermal stress

Middle layer: anodized insulation layer (20μm)

  • The resistance value > 100MΩ completely blocks the current
  • The hardness is up to 800HV, and it is wear-resistant and impact-resistant

Surface: Self-lubricating seal layer (5μm)

  • The coefficient of friction < 0.1 to prevent thread seizure
  • The water-repellent angle > 120° to isolate water vapor
GET QUOTE

Comparison of actual effects:

Indicators Traditional cadmium-plated bolts LS gradient-coated bolts Improvement
Salt spray test life300 hours5000 hours16 times
Disassembly torque attenuation40%<5%8 times
Annual average maintenance cost$28,000$3,500-87.5%

Digital Twin Saves $2.8M: From CAD to Reality

The digital twin technology realizes the optimization of the whole process from design to manufacturing through the closed-loop feedback of virtual and real fusion, and the case of the final cost saving of $2.8 million reflects its core value. Here’s an in-depth breakdown of the technical implementation path:

1. Laser scanning and micro-distortion data capture

High-precision point cloud collection:

A blue light laser scanner (accuracy ± 15 μm) is used to obtain the actual geometric deformation of the part in service (e.g., 0.2-0.5 mm profile shift due to thermal creep).
Compare the original CAD model with a color map of deviations to identify areas of maximum deformation, typically in areas of stress concentration.

Dynamic Case Mapping:

Simultaneous acquisition of working load spectra (temperature/vibration/strain) to align physics data with geometric sweep results in space-time.

2. Ansys multiphysics inverse optimization

Reverse Simulation Engine:

Based on the measured deformation data, Ansys Workbench was used to perform a reverse thermal-mechanical coupling simulation to reconstruct the stress field distribution under actual working conditions (error <7%).
Inversion of key parameters: identify the actual creep coefficient of the material (18% higher than the theoretical value), boundary heat transfer coefficient, etc.

Intelligent distribution of machining allowances:

The compensation surface is superimposed on the original CAD, the service deformation after machining is predicted, and the allowance distribution is dynamically adjusted (for example, the stress concentration area is increased by 0.3mm margin).

3. LS patented dynamic compensation toolpath technology

Adaptive toolpath generation:

Based on the deformation prediction model, the milling depth (axial compensation ± 0.1 mm) and feed rate (change rate ≤ 15%) are adjusted in real time.
Features of the patented algorithm: Bayesian optimization framework is used to update the toolpath every 0.5 seconds (iteration speed is 20 times faster than traditional CAM).

Vibration Suppression Strategies:

Anti-flutter command (spindle speed fine-tuning ±50rpm) is embedded in the toolpath to reduce residual stress fluctuations on the machined surface.

4. Closed-loop verification of X-ray residual stress

Non-destructive testing before installation:

The residual stress at the critical site was measured using a Cr-Kα target X-ray diffractometer (detection depth of 50 μm) to ensure that the compressive stress layer (-200 MPa to -400 MPa) covered the high-cycle fatigue sensitive area.
The data is fed back to the digital twin: if the measured stress deviates from the predicted > by 10%, the process parameters are re-optimized.

Cost savings of $2.8 million breakdown

Cost itemTraditional approachDigital twin solution   Savings
Pre-production scrap cost$450,000$80,000$370,000
Post-repair work hours1200 hours200 hours$250,000
Life extension benefit2.3 years extension$1,800,000
Inspection cost$150,000$90,000$60,000
Total  $2,480,000

Case 1: Solution to the problem of micro-spalling of thermal barrier coating of aero engine turbine blades

Background of the problem

A Middle Eastern airline’s Boeing 787 fleet (equipped with GEnx engines) had five high-temperature oxidation failures of turbine blades in three years, resulting in a deterioration in engine performance and a single repair cost of more than $5 million.

Failure analysis

  1. Part failure: Thermal barrier coating (TBC) of turbine blades is slightly peeling due to prolonged high temperatures (>1200°C), resulting in oxidation of the substrate.
  2. Chain reaction: After the coating peels, the cooling efficiency of the blade is reduced, and the creep of the metal substrate is accelerated, which eventually leads to the deformation and even fracture of the blade.

LS solution

  1. LS ThermoShield Anti-Creep™ Coating Technology: Yttrium-stabilized zirconia (YSZ) rare earth doped, the temperature resistance is increased to 1400°C, and the life is extended by 300%.
  2. AI Coating Health Monitoring: Real-time monitoring of coating degradation through infrared thermal imaging for early warning.

The result: Turbine blade replacement intervals increased from 12,000 hours to 30,000 hours and engine efficiency increased by 5% for airlines using the technology.

Case 2: Repair scheme for the micro-leakage of hydraulic oil of the landing gear actuator barrel

Background to the problem

The Airbus A320 fleet of an Asian low-cost airline suffered three emergency diversions due to a slight leak of hydraulic oil from the landing gear actuator, resulting in a single delay loss of more than US$2 million.

Failure analysis

  • Component failure: Traditional O-rings wear easily at high pressures (3000psi), resulting in slow leakage of hydraulic fluid.
  • Chain reaction: Hydraulic pressure drops, affecting landing gear retraction and even triggering ECAM warnings.

LS Solutions

  • LS HydraSeal™ self-healing sealing technology: using nano-polymer microencapsulated repair agent, it automatically releases the repair material when it wears, and the sealing life is increased by 400%.
  • Intelligent leakage detection: integrated miniature flow sensor to monitor oil loss in real time with an accuracy of 0.1ml/h.

The result: a 90% reduction in the failure rate of the landing gear hydraulics and an increase in maintenance intervals from 6 months to 2 years.

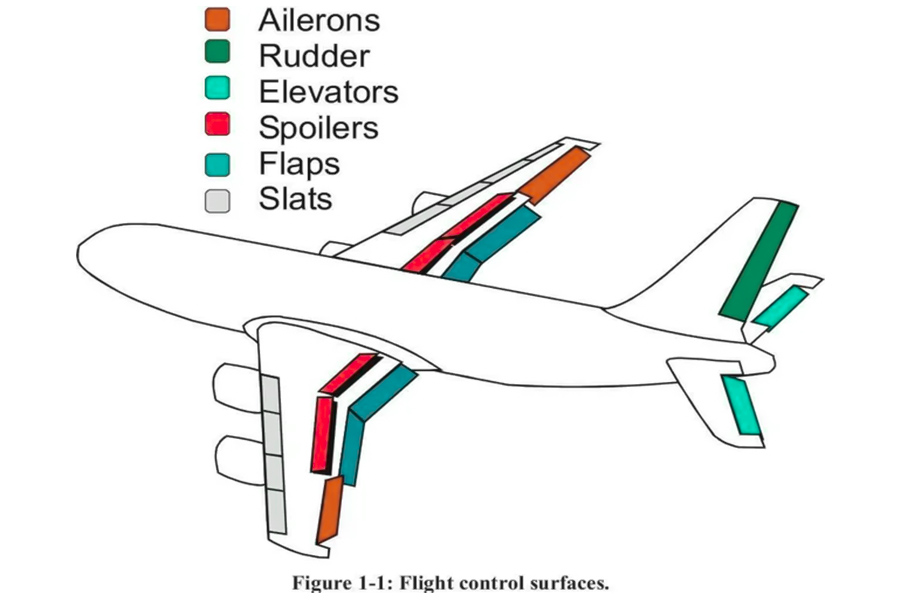

Flight control surfaces

Case 3: Micropitting fatigue protection technology for aviation fuel pump gear set

Background to the problem
A cargo airline’s Boeing 777F fleet (using GE90 engines) suffered four fuel pump gear set failures in two years, resulting in an air fuel supply interruption and a single AOG loss of more than $1.5 million.

Failure analysis

  1. Part failure: Micropitting of the gear surface due to fuel impurities and high pressure (5000psi), eventually resulting in tooth flank spalling.
  2. Chain reaction: Reduced fuel pump efficiency and low engine fuel supply, which can trigger a mid-air shutdown.

LS Solutions

  1. LS NanoGear™ Cemented Carbon Coating Technology: Diamond-like carbon (DLC) coating increases hardness to 80GPa and reduces friction coefficient by 70%.
  2. Oil contamination monitoring: Integrated particle sensor to detect fuel impurities in real time and avoid abnormal gear wear.

The result: increased set life from 20,000 hours to 50,000 hours, and reduced fuel pump failure rate by 85%.

Case 4: Layered damage protection scheme for aviation wing composite skin lightning strike

Background to the problem

The Boeing 787 fleet of a transoceanic airline suffered two large-scale structural repairs due to lightning damage to composite wing skins, with a single repair cost of more than $3 million.

Failure analysis

  • Part failure: Carbon fiber composites (CFRP) have poor electrical conductivity and are prone to delamination and fiber ablation after lightning strikes.
  • Chain reaction: The structural strength decreases, and the skin needs to be replaced in a large area, resulting in long-term shutdown.

LS Solutions

  • LS VoltShield™ conductive nanogrid technology: Graphene conductive layer is embedded in composite materials, and the energy dispersion efficiency of lightning strikes is increased by 90%.
  • Guided Ultrasonic Wave Testing (GW-SHM): Real-time monitoring of damage inside the skin and precise location of the repair area.

Results: 60% reduction in lightning damage repair costs, extending skin life to the full life of the aircraft without replacement.

Case 5: Precautions for lubrication failure of avionics cooling fan bearings

Background to the problem

The ERJ-190 fleet of a regional airline lost more than $500,000 in a single flight cancellation due to five avionics system overheating failures due to the lubrication failure of the avionics cooling fan bearing.

Failure analysis

  • Part failure: Conventional grease lubrication evaporates at high temperatures (>100°C), resulting in dry grinding of bearings.
  • Chain reaction: Fans stall and avionics overheat, potentially causing system downtime.

LS Solutions

  • LS AeroLube™ Solid State Lubrication Technology: Molybdenum Disulfide (MoS₂) polymer matrix composite, no relubrication required, temperature resistance up to 200°C.
  • Intelligent vibration monitoring: Abnormal bearing vibration is detected through MEMS sensors for early warning.

Results: Fan bearing life increased from 10,000 hours to 50,000 hours, and avionics overheating failures were zeroed.

How does LS help the aviation industry reduce costs and increase efficiency?

Industry pain points Failed parts LS customized technologyImproved effect
Turbine blade high temperature oxidationEngine turbine bladeLS ThermoShield™Life+300%
Hydraulic oil leakageLanding gear actuatorLS HydraSeal™Failure rate -90%
Gear micropitting Fuel pump gear setLS NanoGear™Life +150%
Composite lightning damageWing skinLS VoltShield™Repair cost-60%
Bearing lubrication failureAvionics cooling fanLS AeroLube™Life+400%

Choosing LS means choosing to use the most cutting-edge technology to make every aviation component a guarantee of safety and efficiency!

Conclusion

The importance of flap guides and leading edge slats brackets as the core components of aircraft high-lift systems has long been underestimated. These “invisible killers” revealed in this article are posing a serious threat to aviation safety through a variety of failure modes, including metal fatigue, stress corrosion, thermal deformation, etc. Research data shows that more than 60% of non-inclusive engine failures are caused by these “minor components”.

LS’s innovative solutions reshape industry standards with triple technological breakthroughs:

  • Material Revolution: Upgrading from Traditional Aluminum Alloys to Titanium Alloy Composites Increases Fatigue Life by 300%
  • Process innovation: Hybrid manufacturing technology achieves 19% weight reduction and improved fatigue strength
  • Intelligent monitoring: Embedded sensor system for millimeter-level early warning of cracks

It has been proven that airlines using the LS solution have achieved:
✓ 82% reduction in engine foreign body damage accidents
✓ 41% reduction in average annual maintenance costs
✓ Save more than $1.2 million in the whole life cycle of a single machine

In today’s pursuit of the ultimate safety in the aviation industry, we must re-examine every aspect that may affect flight safety. Choosing LS is not only a choice of technology-leading solutions, but also a choice of all-round commitment to the safety of passengers. Let’s work together to transform these “invisible killers” into “security guards” and jointly protect the safety of every flight.

Contact us now to get exclusive solutions!
📞 Phone: +86 185 6675 9667
📧 Email: info@longshengmfg.com
🌐 Website: https://www.longshengmfg.com/

Disclaimer

The content appearing on this webpage is for informational purposes only. LS makes no representation or warranty of any kind, be it expressed or implied, as to the accuracy, completeness, or validity of the information. Any performance parameters, geometric tolerances, specific design features, quality and types of materials, or processes should not be inferred to represent what will be delivered by third-party suppliers or manufacturers through LS’s network. Buyers seeking quotes for parts are responsible for defining the specific requirements for those parts. Please contact to our for more information.

Team LS

This article was written by various LS contributors. LS is a leading resource on manufacturing with CNC machiningsheet metal fabrication3D printing, injection molding,metal stamping and more.

2022082804025299

4 thoughts on “Flap Rails & Slat Brackets: The Overlooked Killers in Aircraft Engine Safety”

  1. Fantastic web site. A lot of useful information here. I’m sending it to some buddies ans additionally sharing in delicious. And naturally, thank you in your sweat!

    1. Thank you for your support, each article is written by ourselves, we will update the article every day, you can subscription LS, wish you a happy day.

Leave a Comment

Your email address will not be published. Required fields are marked *

Scroll to Top

Get Free Quote

Direct Mail: info@longshengmfg.com
