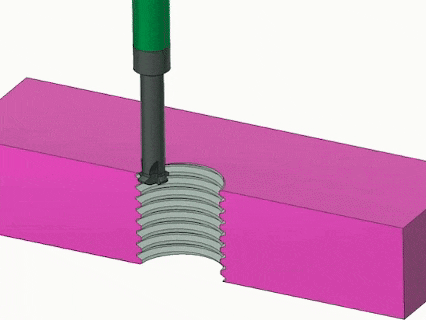

How to Make a Thread Cutting Tap？

When a bolt carries the dream of a tool: How to make a thread tap?
We have all had that moment of inspiration late at night – when the tap we urgently need is nowhere to be found, the bolt of similar size in the toolbox seems to be shining with temptation: “Let me try?” Yes, grinding an ordinary bolt into a usable tap is not a fantasy under extreme circumstances. This creative impulse from adversity is the simplest spark of the engineer’s spirit.

However, the transformation of a bolt carrying the dream of a tool is much more complicated than grinding a few edges on the surface. A slight difference in hardness may cause it to break on the first cut; the delicate balance between the groove and the back angle determines whether the chips can escape smoothly instead of blocking and tearing; the geometric accuracy of the edge directly affects the regularity and strength of the final thread. The charm of homemade taps lies in their possibilities, and the challenges are hidden in every key detail that affects performance.

At LS, we are well aware of the precision metallurgy, complex heat treatment and fine grinding process behind this seemingly simple tool. A true professional-grade tap is born from a deep understanding of material science, repeated verification of failure modes, and the ultimate pursuit of millimeter size. Next, let us explore what kind of transformation this small “bolt” needs to go through to become a thread shaper you can trust.

Thread Manufacturing Method Quick Check Comparison Table

This guide will first teach you how to make a simple tap from a bolt in an emergency. Then, we will reveal how professional tapping tools are made. Finally, a real case will show you why a professional solution is the only choice when faced with high-value laser cut parts.

Here’s What You’ll Learn:

1. A simple decision framework: How to make an informed choice between “emergency DIY” and “professional taps”, and assess risks and feasibility.
2. Detailed steps and key warnings for homemade taps: Revealing the “home-made” process of turning ordinary bolts into simple taps, as well as its inherent serious defects and risks.
3. The core technology of the birth of professional taps: In-depth analysis of the entire manufacturing process from top tool steel materials, precision CNC machining, multi-stage heat treatment (quenching and tempering) to final coatings (such as TiN).
4. The profound impact of three key design differences: Explore how materials (mild steel vs. high-speed steel/cobalt steel), geometry (no back angle vs. precision front/back angle) and heat treatment (uncontrolled quenching vs. vacuum heat treatment + tempering) determine cutting forces, chip evacuation efficiency, thread quality and tool life.
5. Professional solutions to overcome laser-cut threading problems: Through real-life case analysis (custom motorcycle modification), we show how heat-affected zone (HAZ) hardening, correct tap selection (cobalt in spiral grooves) and process parameters (speed, cutting oil) can turn scrap edges back into perfect finished products.
6. Answering common pitfalls and core questions (FAQs): Covering the correct tapping steps, the essential differences between taps/dies/thread milling cutters, and why “drilling the right bottom hole” is the basis for success.

Now, let’s uncover the secrets of homemade taps and delve into the world of precision engineering behind professional tools.

Why Should You Trust This Guide? Insights From LS’s Manufacturing Frontline

“In the past few years of working in the front line of LS manufacturing, I have been involved in the tapping process of hundreds of parts every day. I know too well that the value of a part is not just the outline of laser cutting, but often depends on the last few fine threads. The bloody lesson is still vivid in my mind: a custom aviation aluminum alloy part worth thousands of yuan, laser cut flawlessly, was completely scrapped because a low-quality M3 tap broke in the hole. I still have lingering fears about the loss and delay at that moment.

More importantly, a layer of “hardening layer” will form on the edge of the material after laser cutting – this is the real “invisible killer” when we tap! Stainless steel, titanium alloy, various carbon steels… I have experienced too many times: choosing the wrong tap, wrong parameters, insufficient cooling, and instantly breaking the blade and breaking the taper. These experiences were learned by listening to the changes in cutting sound, feeling torque feedback, and repeatedly debugging in front of the machine tool.

Because of this, we are not only cutting, but also solving manufacturing problems. For example, the customer urgently needed to process non-standard threads on a special high-temperature alloy, and the standard taps could not handle it. My team and I went straight to the workshop to analyze, design, and finally customize a special tap to tackle this “hard bone”. Every suggestion in this guide comes from this kind of actual combat – from the lessons accumulated on our workshop floor, the successful solutions, and the deep understanding of the material properties after laser processing.

We share these in the hope that you can avoid the pitfalls we have stepped on. Remember, the success or failure of a part may be in the key “click” and smooth tightening. Perfect threads are the ultimate guarantee of the value of parts. “

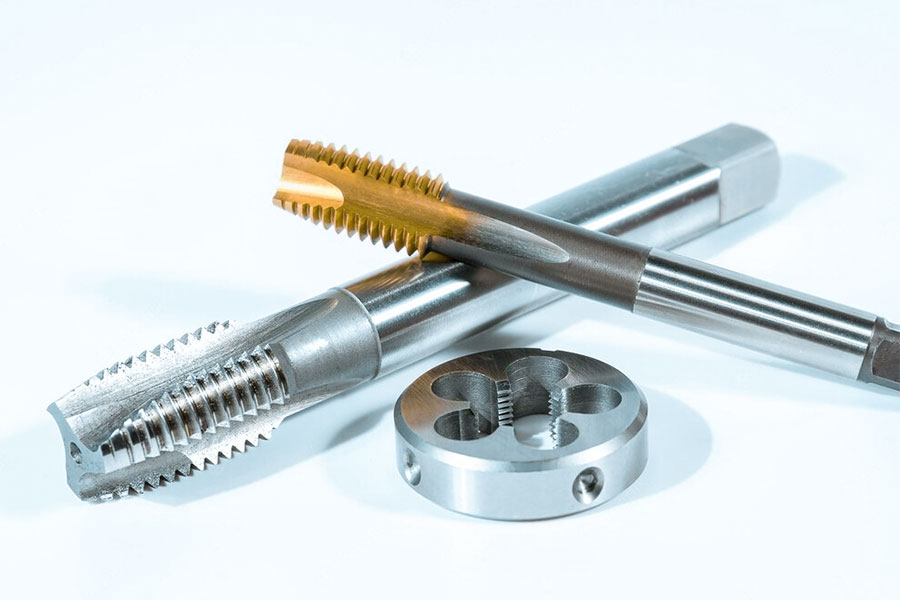

Emergency Manual: How To Turn An Ordinary Bolt Into A Simple Tap

“Caution: This method is a destructive emergency solution and should only be used as a last resort on soft materials (such as soft aluminum, cork, hard plastic)! Finished taps are very weak and break easily, and the metal shavings and broken pieces produced during operation are dangerous. Always wear high-quality goggles and operate in a safe environment. Professional taps are the only reliable choice, and this method is only a stopgap measure in extreme emergencies.”

Steps Overview:

1. Step 1: Choose the right “sacrifice”

• Core requirements: The key to success starts with the bolt itself.
• Size: The nominal diameter of the bolt must be slightly larger than the diameter of the target threaded hole you want to tap (for example, if you want to tap an M6 hole, you need to choose a bolt of about M6.3 or M6.5). The thread of the bolt is the “thread” of the “tap” and must be able to squeeze into the target hole.
• Material and strength: It is crucial! Choose the hardest steel bolt you can find. The minimum requirement is 8.8 (marked on the bolt head). 10.9 or 12.9 is better. Ordinary low-carbon steel bolts (no grade or 4.8) are almost unusable and will deform instantly. Hardness is the prerequisite for it to “bite” the workpiece material.
• Condition: Try to choose bolts with intact threads, no rust or damage.

Step 2: Open the “chip groove”

• Purpose: True taps have spirals to remove chips from the chip groove. Our bolts need to be manually made with similar channels, otherwise the cut metal chips will have nowhere to go and will jam or crack the bolt or workpiece.
• Tools: Angle grinder (with thin cutting disc) or strong hand-held rotary tool (such as Dremel with cutting wheel/grinding head). Always wear goggles and gloves! Secure the bolt!
• Operation:

1. Clamp the bolt firmly in a vise or other clamp.
2. Cut 3 to 4 straight grooves evenly on the threaded part along the axis of the bolt (parallel to the length of the bolt).
3. Groove depth: The cutting depth should be slightly deeper than the thread height to ensure that the chips can enter the groove. Don’t go too deep! Too deep will seriously weaken the bolt strength and it will easily break in the next step or when used. The goal is a shallow groove, not cutting the bolt into several pieces.
4. Groove length: The length of the groove should cover the length you plan to use for tapping.
5. Uniformity: Try to ensure that the grooves are evenly distributed around the circumference.

Step 3: Create the “cutting edge”

• Purpose: The cutting edge of a taper has a specific rake and relief angle. This step simulates the rake angle so that the “cutting edge” of the bolt can gradually cut into the material, rather than relying on the entire thread side to squeeze and tear the material (which will create huge resistance and damage the workpiece).
• Tools: Small grinder (ideal), high-speed rotating tool with grinding head or small file (inefficient).
• Operation:

1. Look carefully at each groove opened in the previous step. Each groove has two edges.
2. Key: Choose the edge of each groove in the forward direction of the bolt rotation (imagine which edge “opens the way” in front when the bolt is screwed clockwise into the hole).
3. On this “forward edge”, carefully use a grinding wheel or grinding head to grind outward and backward (relative to the forward direction of the bolt) from the bottom of the groove to grind a small bevel. This bevel constitutes a very rough rake angle.
4. Key points:

• The grinding direction is along the direction of the thread (helix), not purely axial.
• The bevel only needs to be small (a few degrees), the purpose is to form a “cut-in” guide slope to reduce the initial contact area.
• Note: We cannot create a true back angle (which will greatly weaken the thread strength), which is one of the main reasons for the poor performance of homemade taps.

Step 4: (Optional but critical) Simple heat treatment

• Purpose: To increase the surface hardness of the bolt thread part by quenching, making it more wear-resistant and slightly improving the “cutting” ability. Warning: This step is extremely risky!
• Risks:

1. Severe brittleness: Ordinary bolt steel is not professionally heat-treated and tempered. After quenching, the internal stress is huge and it will become extremely brittle.
2. Extremely easy to break: It is almost certain to break during use. Breaking is a high probability event, not an accident!
3. Fragment splashing: High-speed flying fragments may be produced when breaking.
4. Deformation: Heating may cause slight deformation of the thread.

• Operation (only try if you know the risks and it is extremely necessary):
• Use a spray gun (propane or oxyacetylene) to heat the threaded part of the front end of the bolt (about 1-2cm in length).
• Continue heating and observe the color change until the heated part is uniformly “cherry red” (about 750-850°C).
• Quickly (within 1-2 seconds) immerse the heated part vertically in a container filled with cold water or engine oil. You will hear a hissing sound.
• After removal, this part will become very hard and brittle.

Once again: This step will make the bolt a “disposable consumable” and the risk of breakage will increase dramatically! Be extremely careful!

Step 5: Why is this a bad, but sometimes necessary, choice? Understand the limitations

• Core problem: Bolts and professional taps are fundamentally different in design and material:

1. Wrong material: Taps use special tool steels that undergo complex heat treatments to balance hardness and toughness. Bolt steel and heat treatment (even quenching) are completely substandard.
2. Geometric defects:

• No back angle: This is the biggest flaw. The back of the bolt thread is vertical, which will cause intense friction and compression with the workpiece hole wall instead of smooth cutting. This requires huge torque and is very easy to jam, gall (thread adhesion) or break the bolt.
• Rough rake angle: Hand-ground rake angles are extremely imprecise and have limited effectiveness.
• Non-optimized groove shape: Straight grooves are far less effective in chip removal than spiral grooves.

     3.Heat treatment disaster: DIY quenching almost inevitably leads to brittle fracture.

     4.How it works: It is not mainly “cutting”, but forcibly squeezing, tearing and scraping materials. The process is rough, the thread quality is poor (rough, inaccurate, and may be torn), which is a huge harm to the workpiece and the bolt.

• Summary of disadvantages: extremely low efficiency, huge torque requirements, extremely short life of the finished tap (may only use 1-2 holes), bolts are very easy to break, the tapped thread quality is poor, dangerous operation, only soft materials.
• When “necessary”: only exists in extreme survival or emergency repair scenarios where you are completely isolated and helpless, cannot get any tools, and must get a barely usable threaded hole on soft materials. This method should never be used when there are other possibilities (such as waiting, looking for alternatives).

Please remember: safety always comes first! No emergency task is worth the risk of losing eyesight or suffering serious injury! This manual is intended to reveal the huge flaws and risks of this method, and is by no means a recommendation as a regular or desirable operation. The operator must bear full responsibility for his own safety and the consequences of the operation.

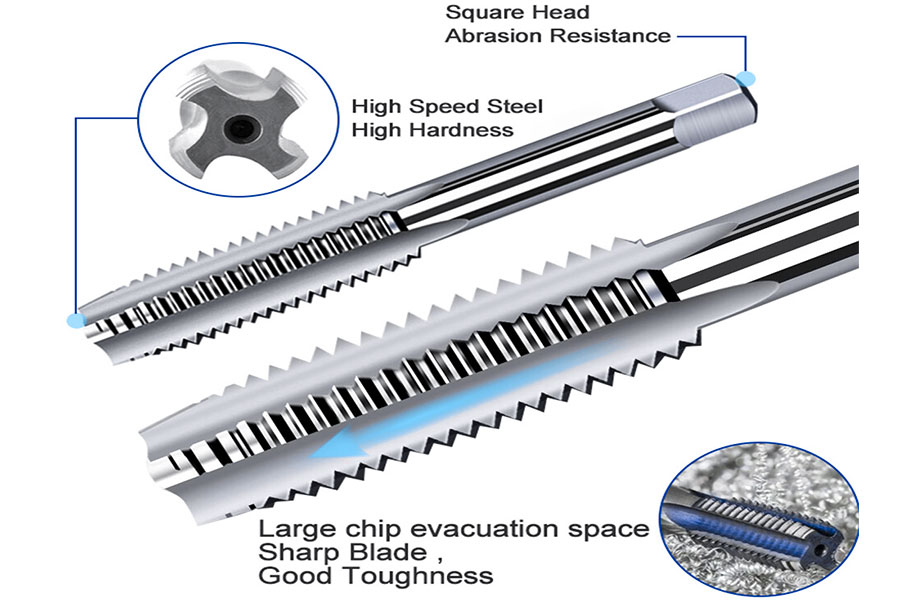

Professional choice: The Birth Of A High-Quality Tap

“Now, let’s get into the real engineering and see how much technology is behind that $15 professional tap.” This is no ordinary metal bar, but an engineering masterpiece that combines cutting-edge materials science, precision machining and the art of thermochemistry. Follow us and uncover its transformation from an ordinary steel billet to a cutting tool.

The first critical step: material selection

The outstanding performance of a professional tap begins with the material gene that does not compromise. It is definitely not the low-carbon steel used to make ordinary bolts. The real professional choice is tool steel, among which:

High-speed steel (HSS – High-Speed ​​Steel, such as M2) is the absolute mainstream. Its core value lies in red hardness – even at the high temperature generated by cutting (about 600°C), it can still maintain sufficient hardness to prevent the edge from softening and failing quickly. This ensures continuous and stable cutting ability.

Challenge the stronger: cobalt-containing high-speed steel (such as M35, M42). When facing “tough nuts” such as stainless steel and high-temperature alloys, adding 5%-8% cobalt to HSS is the key. Cobalt significantly improves the material’s high-temperature hardness, wear resistance and thermal conductivity, allowing the tap to have a longer life and more stable performance when processing these hard materials. The choice of material directly determines the upper limit and application boundary of the tap’s performance.

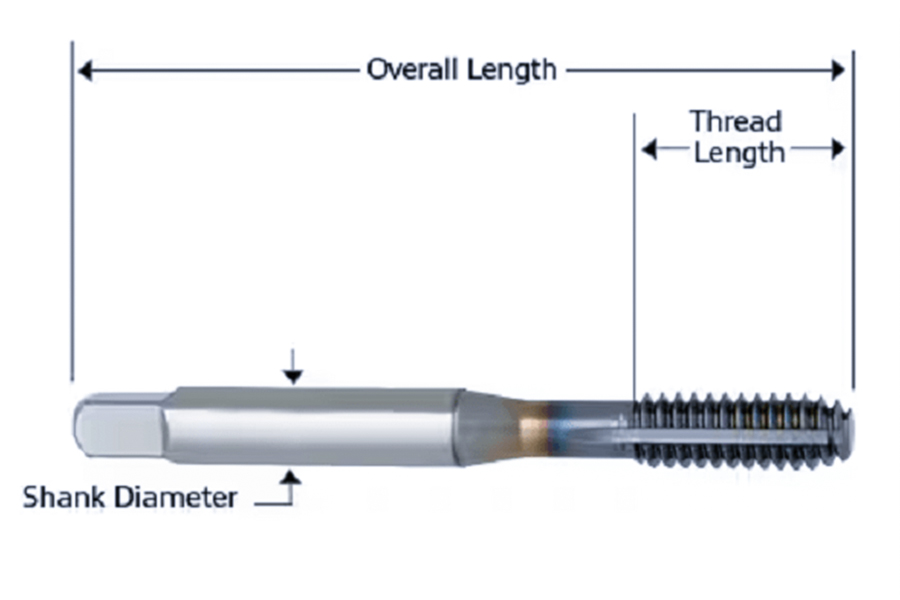

Precision machining: from round bar to prototype

With qualified alloy steel bar stock, precision machining gives it functional form:

CNC turning: This is the first step to shape the basic shape. On the CNC lathe, the high-speed rotating round bar stock is turned by precision tools to the approximate diameter of the shank, neck and thread part of the tap, laying the foundation for the overall contour.

CNC milling/grinding – the birth of chip grooves: This is the core process to distinguish the types of taps and determine the chip removal performance. Use specialized machine tools (such as tool grinders) to accurately machine chip grooves on the tap body.

1. Straight groove: Simple processing, strong versatility, most suitable for through holes, chips can be discharged in a straight line and smoothly.
2. Spiral groove: More complex processing, designed for blind holes. The design of the helix angle (such as left-handed and right-handed, angle size) guides the chips upward to discharge out of the hole, effectively avoiding tap breakage caused by chip blockage. The accuracy of the groove type directly affects the cutting force, chip removal effect and the final thread surface quality.

Thread grinding – the beginning of precision: Before the critical heat treatment process, a high-precision thread grinder is used to grind the tap’s thread profile. This step establishes the basic shape and accuracy of the thread, leaving room for the final fine grinding after subsequent heat treatment, and ensuring that there is still enough material for precise correction after heat treatment deformation.

Magic moment: multi-stage heat treatment

If the material is the body and processing is the skeleton, then heat treatment is the core magic that gives the taps their “soul” – ultra-high hardness and necessary toughness.

• Hardening: It is carried out in a controlled atmosphere (usually a vacuum furnace) to prevent surface oxidation and decarburization. The tap is precisely heated to the austenitization temperature specific to its material (usually around 1200°C for high-speed steel), so that the internal structure is completely transformed. This is followed by extremely rapid cooling (quenching), usually in oil or high-pressure gas. This process gives the material an extremely high martensitic hardness (usually up to HRC 64 or more), but it is also accompanied by huge internal stress and brittleness.
• Tempering: After quenching, the tap is as brittle as glass and cannot be used directly. Tempering is the key to solving the problem. The tap is reheated to a relatively low specific temperature (for example, 550°C) and kept at this temperature for several hours. This key process will happen:

1. Relieve internal stress: The huge internal stress generated by quenching is effectively released.
2. Transformation of brittle structure: Part of the unstable brittle martensite is transformed into tempered martensite with better toughness.
3. Precipitation strengthening: Alloy carbides precipitate, further improving hardness and wear resistance.
4. Multiple tempering (usually 2-3 times) is the essence of high-speed steel processing. During each tempering cooling process, the retained austenite continues to transform into martensite, and the newly formed martensite needs to be “tamed” in the next tempering. After multiple tempering, the tap finally obtains the best performance balance: high hardness, high wear resistance and the toughness necessary to resist impact fracture. Precise control of the tempering process is the decisive factor in the life and reliability of the tap.

The final finishing touch: finishing and coating

After heat treatment, the tap has a strong core, but it still needs the final fine carving and “battle suit” blessing:

Fine grinding: Heat treatment will inevitably cause slight dimensional changes and deformation. It is crucial to use ultra-high precision thread grinders for the final fine grinding process. This step grinds key dimensions such as thread profile, pitch diameter, lead, etc. to a strict tolerance range (usually micron level) to ensure that the tap can process high-precision threads that meet standards. This is the final step for the tap to achieve “professional grade” precision.

Coating – Performance multiplier: In order to further improve performance under harsh cutting conditions, many high-quality taps will be surface coated. The most common is to use PVD (physical vapor deposition) process to apply a very thin (a few microns) but extremely hard ceramic coating:

• TiN (titanium nitride): Classic golden coating. It can significantly reduce the coefficient of friction, reduce cutting heat and adhesion; increase surface hardness, enhance wear resistance, and extend the life of the tap, especially suitable for processing ordinary steel and cast iron.
• Other advanced coatings such as TiCN (titanium carbonitride, blue-gray) and TiAlN (titanium aluminum nitride, purple-black) can provide better heat resistance and wear resistance in specific material processing. Coatings are like putting “slippery” armor on sharp edges, and are a key investment in improving efficiency, life and surface quality.

A $15 professional tap is more than a simple metal product. Its creation is a journey of engineering refinement that combines cutting-edge material science (precision-ground high-speed steel and cobalt-containing alloys), extreme precision manufacturing (CNC turning and milling, high-precision thread grinding), complex thermochemical magic (vacuum quenching and multiple rounds of precision tempering), and surface strengthening technology (super-hard PVD coating). Each step is a rigorous pursuit of precision, hardness, toughness, and wear resistance. In the end, this tap becomes a reliable tool in your hand to conquer metal – every penny of its value is deeply rooted in the precise and complex manufacturing process behind it. This $15 purchase is the crystallization of a century of metal processing wisdom and a professional guarantee of efficiency and reliability.

Case Study: Solving Thread Problems For Customized Motorcycle Modifications

We often say that ‘theory is gray’, but practice is the best way to test true knowledge. Today I would like to share with you a true story that happened to one of our customers, which perfectly explains why laser cutting is not just as simple as ‘cutting a shape’, and the subsequent processing technology also requires professional knowledge and experience to escort. ”

Customer’s challenge: ’embroidering’ on a piece of art

“One of the top motorcycle modification studios we cooperated with designed a side engine decorative protection plate that can be called a work of art. It uses 5mm thick 304 stainless steel, and through our advanced online laser cutting service, it accurately cuts out a complex and exquisite flame pattern outline. In order to install a custom chrome-plated footrest, they need to process an M10 threaded hole in a specific position on the plate. ”

“Sounds routine, right? But here comes the problem: when their technicians tried to tap, the standard HSS (high-speed steel) tap only turned less than two turns, it made a shrill scream, and then stuck. The result of forced twisting? The tap “sacrificed heroically” – directly broke in the hole! This valuable custom piece, which had already been intricately cut, was suddenly at risk of being scrapped.”

Our diagnosis and actions: precise positioning, immediate cure

“After receiving the customer’s urgent request for help, our team immediately conducted an analysis. Combining years of material and processing experience, we quickly locked in three key root causes of the problem:

1. ‘Invisible armor’ – material hardening: Laser cutting is essentially a high-energy, high-temperature process. Although it is precise, it will form a very thin heat-affected zone (HAZ) at the edge of the cut. The metal structure in this area has changed, and the hardness is much higher than the base material. Imagine that the customer is tapping on a hard spot that has been partially ‘quenched’, and ordinary taps naturally can’t handle it.
2. ‘Weapons’ are not right – tools are not matched: Faced with this kind of local hardening, the standard HSS taps used by customers are not enough in terms of hardness or toughness. It’s like using an ordinary kitchen knife to chop hard bones.
3. The root cause of ‘blockage’ – poor chip removal: The customer used a straight groove tap. When tapping on a viscous material like stainless steel, the straight groove cannot effectively discharge the chips, causing the chips to quickly accumulate and clog in the narrow tap groove, generating huge friction and torque, and eventually causing the tap to get stuck and break.

“After identifying the problem, we took immediate action:

Step 1: Emergency Rescue! We first guide the customer to safely remove the broken tap. Forced drilling or brute force removal is strongly discouraged and is likely to completely damage the workpiece. We recommend precision electro-discharge machining (EDM) or extremely careful use of carbide drills to ensure that the original hole position is not damaged.

Step 2: Provide a ‘magic weapon’! Instead of recommending a homemade tap, we specified a spiral groove cobalt-containing high-speed steel tap specifically for stainless steel processing based on material characteristics and processing challenges. The spiral groove design can actively and smoothly discharge chips upward like a drill bit to avoid clogging; the cobalt content significantly improves the wear resistance and strength of the tap in hard materials and high temperatures. At the same time, we also attached a bottle of high-quality sulfur-containing cutting oil – its lubrication and cooling effects are essential to overcome the stickiness of stainless steel and prevent secondary hardening.

Step 3: Teach the ‘martial arts mind’! Good tools alone are not enough, process parameters are the key to success or failure. We have given clear guidance:

• ‘Steady’ is the key: Always use a rigid tapping seat (such as a tapping chuck or tapping power head) to ensure that the tap is absolutely perpendicular to the hole and avoid additional stress caused by deflection.
• ‘Slow’ work produces fine work: Reduce the tapping speed by about 30% to give the tap enough time to ‘eat’ the hardened layer and effectively remove chips.
• ‘Lubricate’ silently: Supply cutting oil to the cutting edge continuously and sufficiently, and never dry cut or lack of lubrication.

Final result: from the edge of despair to a perfect ending

“The customer strictly followed our advice and tried again on a new laser-cut piece. The result? The whole process went extremely smoothly! The M10 thread was perfectly processed, the thread surface was smooth and regular, and it achieved a precise and stable fit with the custom chrome-plated footrest.”

“The success of this cooperation is not only about solving a technical problem. It helps customers:

• Avoid the risk of scrapping hundreds of dollars of custom parts again.
• Save several days of project delays.
• More importantly, the customer deeply understands: Choosing LS is not only choosing a precise laser cutting service provider, but also choosing a reliable partner who is well versed in material properties, proficient in subsequent processing technology, and can provide full-range engineering support. We understand that manufacturing is an interlocking chain, and any shortcoming in any link may lead to the failure of the final product.

Key Takeaway:

“This case vividly tells us that manufacturing is a systematic project. Just knowing how to “cut” is far from enough. When you choose a supplier, do you choose a processing point that is only responsible for “cutting out the shape” or an engineering partner who can understand your overall design intent, foresee potential process risks, and provide professional solutions? The results of the two are absolutely worlds apart. At LS, we are committed to being the latter, using our expertise and experience to escort your creativity and solve complex manufacturing challenges. “

Frequently Asked Questions (FAQ) – All Your Tapping Questions

1. How to use a tap to tap correctly?

The key steps to tap correctly are: first drill a bottom hole of precise size, which is the core premise. Make sure that the tap is perpendicular to the workpiece hole during operation. Use a tapping wrench, rotate half a circle to one circle clockwise, and then rotate counterclockwise about 1/4 circle to break the chips and avoid clogging. Use appropriate cutting fluid for lubrication and cooling throughout the process. When processing deep holes, it is necessary to regularly withdraw the tap and clean the accumulated chips in the hole to prevent the tap from getting stuck or the thread from being damaged.

2. What material is the tapping tap made of?

Taps are mainly made of high-speed steel (HSS), which provides good toughness and cutting performance. When processing high-hardness, high-toughness and difficult-to-process materials such as stainless steel and titanium alloy, high-speed steel (HSS-Co) with added cobalt or solid carbide taps are used. Cobalt high-speed steel improves red hardness and wear resistance, while carbide taps have extremely high hardness and thermal stability, which are suitable for high-speed and efficient processing of demanding materials.

3. What are the differences between taps, dies and thread milling cutters?

The core difference between the three lies in the processing object and method: taps are specifically used to cut internal threads in pre-drilled holes; dies are used to process external threads on the outer surface of cylindrical bars or tubes; thread milling cutters are CNC tools that can mill both internal and external threads through the spiral interpolation movement of the machine tool. Thread milling cutters are more flexible and are not limited by thread specifications. They are especially suitable for large threads or blind holes, but the equipment cost and programming complexity are higher.

Conclusion

Making a tap yourself is a fascinating journey into the inner workings of a tool. It reveals the subtleties of cutting geometry, the rigor of material selection, and the indispensability of heat treatment. However, this experience also brings us a deeper revelation: the value contained in professional manufacturing is often unattainable by DIY.

For any critical project that pursues reliability and precision, perfect geometry, strictly verified materials, and precisely controlled heat treatment processes are the cornerstones of manufacturing qualified taps. Together, these factors determine the quality of the thread, the life of the tool, and the success or failure of the final part. Trying to replicate this professional level of precision manufacturing under simple conditions is not only challenging, but also may bring unforeseen risks.

Don’t let a seemingly simple thread problem become the Achilles’ heel of your carefully designed, high-value parts!

At LS, we understand the importance of every detail. We not only provide industry-leading online laser cutting services and highly competitive laser cutting prices, but also integrate professional engineering wisdom into every link from material selection to precision machining to final assembly. Let our professional capabilities escort your project, ensuring that every thread is accurate and every detail can stand the test.

Upload your design file now and let LS’s professional team solve the challenges of precision manufacturing for you and create a flawless masterpiece!
