Is A Countersink 82 Or 90 Degrees?

When a screw ruins a perfect panelYou have just signed for a batch of top-grade aluminum panels that cost thousands of dollars, were precision-machined and anodized. They are as smooth as a mirror, with perfect color, and carry the core expectations of the project. You pick up a standard flat countersunk screw with great anticipation, ready to install the key components. The tool is in place, the screw is aligned with the countersunk hole…But the next second, your heart sinks to the bottom.The head of the screw cannot perfectly fit into the preset groove-the countersunk hole. It either hangs awkwardly above the edge of the hole, destroying the smooth flow of the panel; or worse, only one side barely touches the bottom of the hole, while the other side stubbornly tilts up, forming a desperate miniature “seesaw”. No matter how you adjust and force, you can’t get a stable and flat installation effect.A perfect batch, instantly reduced to expensive scrap metal.And the root cause of all these devastating losses is hidden in a seemingly insignificant geometric difference: the angle of the countersunk part of the screw is 90°, while the angle of the countersunk hole on your panel is 82° (or vice versa).Yes, it is this inconspicuous 8-degree difference. It is not a simple angle deviation, but a classic trap buried between metric and imperial standards, a line of small words that is easily overlooked on design drawings and purchase lists, and a fatal detail in precision manufacturing that can make all efforts go to waste.When you are faced with a pile of scrapped panels and a painful loss report, the cold question will become extremely sharp: Should the countersunk angle be 82° or 90°? If you choose the wrong one, the price is the expensive “ruin” in front of you. Let’s go deep into the world behind this angle and avoid the next “thousand-dollar lesson”.

Countersunk hole angle quick lookup table

Standard system	Countersunk hole angle	Applicable screw examples	Main application areas/industries
Unified/Imperial	82°	#4-40, #8-32, 1/4″-20, 5/16″-18 and other American screws	The United States, Canada and industries that follow the ASME standard (such as some traditional manufacturing industries in North America)
Metric	90°	M3, M4, M5, M6, M8 and other ISO metric screws	Most countries and regions in the world (Europe, Asia, Australia, Africa, etc.) follow the ISO standard

Angle Difference:

Imperial System: The standard countersunk hole angle is 82°. This is the standard matching angle for US screws (UNC, UNF, etc.).Metric System: The standard countersunk hole angle is 90°. This is the standard matching angle for ISO metric screws (M series).

Applicable Screws:

82° countersunk holes are designed to fit countersunk screws with Unified Thread Standard (such as 82° countersunk screws in ANSI/ASME B18.3 standard).90° countersunk holes are designed to fit countersunk screws with ISO metric threads (such as 90° countersunk screws in ISO 10642 standard).

Areas/Industries of Use:

82° (Imperial): Mainly used in industries that follow the Imperial unit system and ASME (American Society of Mechanical Engineers) standards, such as the United States and Canada. It may also be encountered in some global industries with a long history or close ties to the North American supply chain.90° (metric): It is the absolute mainstream standard in the world (except North America), adopted by most countries and regions in Europe, Asia (including China and Japan), Australia, Africa, etc., and follows ISO (International Organization for Standardization) standards. It dominates global industries such as automobiles, aerospace (non-US parts), electronics, and general machinery manufacturing.This guide will thoroughly explain why there are two standards, 82° and 90°, demonstrate the disastrous consequences of incorrect matching, and through a real case analysis, teach you how to correctly mark on drawings, ultimately ensuring that your CNC machined parts are foolproof.

Here’s What You’ll Learn:

1. A clear decision framework to instantly determine whether to use an 82° or 90° countersink for your project.
2. The catastrophic consequences of an 8-degree difference: an in-depth analysis of two mismatched scenarios.
3. A real-life story worth $15,000: the whole process of rework of a high-end audio panel.
4. The essential handbook for machinists: the authoritative guide from drawing annotation specifications to tool selection.
5. Clearing up the confusion: the authoritative answers to the most frequently asked questions (FAQ) about countersink angles.
6. Key conclusions and calls to action: Why this “small angle” is a touchstone for professional manufacturing, and how to avoid risks.

Now, let’s take a deep dive into the world behind 82° and 90° countersinks and gain the expertise to avoid expensive mistakes.

Why should you trust this guide? Experience from the LS QC station

Hello, I am Longsheng, and I have been a manufacturing engineer at LS for 15 years. This guide is not based on empty theories, but on the lessons learned by my colleagues and I on the production line every day. Let me share two typical examples, and you will understand why this guide is trustworthy.First, the trap of “standards”. Every week, our QC engineers deal with a batch of samples that are returned by customers because of the wrong countersink angle. At first, everyone may think that it is the operator’s carelessness. But after in-depth analysis of the drawings and communication, we found that the problem often lies in the source of the design. I have personally experienced too many times: An engineer trained in the United States and another engineer trained in Germany often have completely different “standard countersink” angles in their minds! If the angles and standard basis are not clearly and unambiguously marked on the drawings, when they arrive at the workshop, the workers can only rely on experience or guesswork to process, and the results can be imagined. We have seen too many losses and rework caused by inconsistent understanding of “standards” at the source of design. This guide is to plug the loophole at the source.Second, the “measurement” crisis of cross-border collaboration. Last year, we conducted a design for manufacturability (DFM) review for a new project of an important multinational customer. When carefully checking the drawings and bill of materials, I found a sweat-inducing problem: The core structural parts designed by the US design team used imperial units, but they specified metric screws to be purchased from European suppliers! The sizes seemed close, but they could not be reliably assembled. I immediately sounded the alarm. Fortunately, it was discovered early and corrected before the expensive CNC machine started processing. The customer later estimated that once this potential error flowed into mass production, it would directly lead to tens of thousands of dollars in scrapped materials, rework and delayed compensation. That experience profoundly reminded us that in global collaboration, confusion of unit standards (imperial/metric) is an extremely high-risk minefield that must be thoroughly cleared in the design stage.These are the real battlefields that our LS quality inspection station faces every day. Every suggestion in this guide comes from the real cases we have handled, the actual costs we have paid, and the experience we have gained from successfully intercepting problems. It is not a textbook, but the essence of our internal knowledge base that we have gained through lessons learned to ensure that the design is “done right the first time”. To believe in it is to believe in the professional judgment and practical experience we have accumulated on the front line.

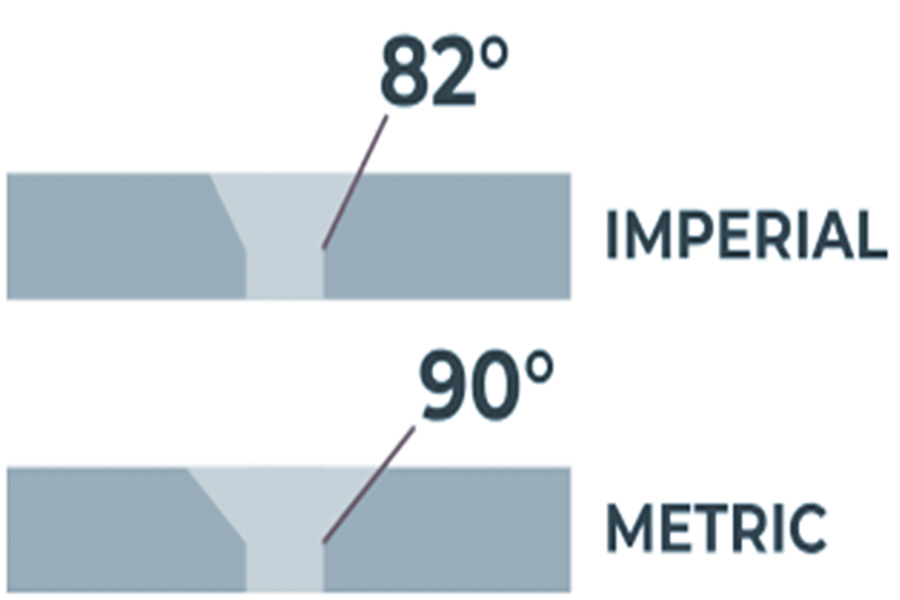

The root of the angle debate: Imperial vs. Metric

“The answer to this question is not which angle is ‘better’, but which measurement system you use for the screw.”The difference in the head angle of countersunk screws (82° vs. 90°) is not a simple judgment of technical superiority or inferiority. Its root lies in the historical evolution and standardization selection of the two major measurement standard systems in the world – American Imperial Standards (ASME/ANSI) and International Metric Standards (ISO). Understanding the standard system followed by the screws you use is the key to choosing the correct countersunk angle.

82° Camp: American Unified Standards (ASME/ANSI)

• Core explanation: In the United States and areas where American (imperial) standards are adopted, all standard flat head/countersunk screws, whether machine screws (such as #2, #4, #10) or ordinary bolts (such as 1/4″, 3/8″), have a head taper angle strictly defined as 82°. This is a unified specification established by the American Society of Mechanical Engineers (ASME) and the American National Standards Institute (ANSI).
• “Why 82°?”: This particular angle is a time-honored engineering choice. Its core purpose is to achieve the best balance between the strength of the screw head and the effective bearing area between the screw head and the countersink. The 82° taper design can more effectively disperse the axial force generated during tightening to the tapered bearing surface of the hole, providing good clamping force and structural stability.

90° Camp: International Organization for Standardization (ISO)

• Core Explanation: In most other parts of the world, Metric is the dominant standard. All metric flat head/countersink screws (such as M3, M4, M6) that meet the International Organization for Standardization (ISO) standards have their head taper angle clearly defined as 90°. This is the global unified specification of the metric fastener system.
• “Why 90°?” (What does a 90-degree countersink mean?): The choice of 90° is mainly based on practicality and standardization convenience. 90° is a regular integer angle, which is easier and more intuitive in measurement, processing (drilling, milling) and inspection.ISO’s designation of 90° as the standard for metric countersink screws has promoted world trade, engineering collaboration, and manufacturing interchangeability across the world considerably.

Little-known exceptions: 100° and other angles

Demonstrate breadth: To prove that you are a true expert, you should know about the exceptions outside the standard. The world of countersunk angles is not 82° and 90° alone.

• For example, 100° countersink holes are actually very common in specific regions, especially in the aviation industry. The design is usually used to connect thin metal skin structures to each other. The larger angle of 100° provides the material with more and flatter cone contact, thereby gaining more load-carrying area on thin materials and actually reduces the material’s stress concentration at the edge of countersunk hole, preventing skin deformation or cracking, which is critical to weight saving and structural integrity.
• Other preferences (such as 110°, 120°) will undoubtedly be included in very unique applications or legacy hardware, but 82° (US), 90° (metric), and 100° (aerospace) are the three most common selections in engineering practice.

The 82° vs. 90° countersink screw conflict actually mirrors the ASME/ANSI vs. ISO split of the American Imperial System and the International Metric System, respectively, in the standardization of fasteners. 82° is an historical choice for engineering optimization by the American standard, in the sense of the relationship between strength and load; 90° is a result of the drive for international consistency and convenience in processing under the metric standard. Other than that, there are exceptions such as 100° in some areas (such as aerospace) to meet special demands. Therefore, the answer is to identify the standard system (American/Metric) or specific application needs of the screws you are applying, rather than arguing over the inherent benefit and drawback of the angles. Identifying the source of such standards can provide correct selection and use of countersunk screws and associated tools (e.g., countersunk drills).

Catastrophic mismatch: When an 82° screw meets a 90° hole

“An 8-degree difference may not seem much, but in mechanical assembly it’s between ‘perfect’ and ‘scrap’.”The precise coincidence of the head of the screw with the countersunk taper angle is the foundation for a stable connection. Metric screws will use a 90° countersunk taper angle, and imperial (UNC/UNF) screws will use 82°. The apparently minor 8-degree difference will lead to destructive connection failure once a misalignment has been established. The table below captures the important differences between the two misalignment positions:

Case 1: A 90° metric screw is forced into an 82° imperial hole

Illustration of mismatch mechanism: Imagine a “wedge” with a larger angle (90° screw) trying to squeeze into a “V-groove” with a smaller angle (82° hole). The bottom end of the screw head cone will first forcefully press against the edge of the countersunk hole entrance. However, because the cone angle of the screw is greater than the cone angle of the hole, the upper half of the screw cone cannot fit the significant wall at all, leaving a annular gap between the two.Disastrous consequences:

1. Fatal line contact: Only an extremely narrow annular line contact is formed between the screw and the countersunk hole at the edge of the hole. This is a world of difference from the large-area cone fit required by the design.
2. Extreme stress concentration: All the preload force (the huge pressure generated by the axial tension of the bolt) is forced to concentrate on this tiny contact line. This will produce extremely high local contact stress (Hertz stress) on the material at the edge of the hole, which can easily cause the edge of the hole to crack, collapse or plastic deformation.
3. Positioning failure: The screw cannot automatically locate in the center of the hole, and is in an eccentric and unstable state. Any slight disturbance or lateral force may aggravate this eccentricity.
4. Loosening accelerator: In an environment of vibration, shock or load change, this unstable point contact cannot provide enough friction to resist loosening. The screw is extremely prone to rotational loosening, and the risk of connection failure increases sharply.

Case 2: 82° Imperial screw mistakenly inserted into a 90° metric hole

Illustration of the mismatch mechanism: This time it is a “wedge” with a smaller angle (82° screw) placed in a “V-shaped groove” with a larger angle (90° hole). The uppermost edge (outer edge) of the screw head cone will first contact the top of the countersunk hole side wall. However, the bottom area of ​​​​the screw cone cannot reach the bottom of the hole due to the insufficient angle, leaving a significant gap between the bottom of the screw cone and the bottom of the hole.Catastrophic consequences:

1. Dangerous line contact: The contact is also degraded, with only a circular line contact between the outer edge of the screw head and the top of the countersunk hole side wall. The effective bearing area is negligible.
2. “Suspension” and stress concentration: The screw head seems to be “suspended” on the hole and cannot be firmly seated. The huge preload force is concentrated on the narrow contact line at the outer edge of the screw head, which can easily cause deformation, curling or severe wear of the outer edge of the screw head.
3. Support collapse: The screw head loses the uniform and stable support that the countersunk cone surface should provide. This may cause the screw to bend or tilt under load, further damaging the integrity and strength of the connection.
4. Loosening is inevitable: Similar to case 1, this unstable line contact has a serious lack of friction under dynamic loads (such as vibration), and screw loosening is an inevitable result. The strength and reliability of the connection are gone.

Tiny angle, huge disaster

The difference of only 8 degrees between 82° and 90° is by no means a negligible error in the world of mechanical connections. It directly leads to the complete failure of the large-area, uniformly pressurized cone contact that the design relies on, and degenerates into a highly stress-concentrated, extremely fragile and unstable line contact. Regardless of the mismatch direction (metric into imperial holes, or imperial into metric holes), the result is the same catastrophic chain reaction: severe damage to the contact point material (hole cracking or screw head deformation) -> screws cannot be properly positioned or seated -> extremely easy to loosen under vibration and load -> ultimately leading to complete failure of the connection, which can cause equipment failure or even safety accidents. This warns us: In critical assemblies, strictly distinguishing and matching metric (90°) and imperial (82°) standards is the absolute bottom line for ensuring connection reliability. A difference of 8 degrees can make a world of difference.

Practical case analysis: Rework of high-end audio panels

Recently, we urgently handled a very representative case, which perfectly illustrates the importance of communication between design and manufacturing details. The customer is a high-end audio equipment company that pursues extreme aesthetics. The aluminum alloy front panel of its flagship amplifier requires that all M4 countersink screws must be perfectly flush with the anodized surface to achieve a “mirror-like” effect.

The core of the challenge: a key detail that is overlooked

The customer’s design drawings (from the US team) marked “M4 Countersink” but did not clearly specify the countersink angle. The designer defaulted to the common 82° standard in the United States. However, they actually purchased and planned to use high-quality German M4 stainless steel screws that meet ISO standards, with a head angle of 90°. The ambiguity of this key parameter became the fuse for subsequent problems.

The disastrous consequences of the first round of manufacturing

The initial processing plant, based on the drawings and “habitual cognition”, used 82° countersink tools to process all countersinks. The result was shocking: after 500 beautifully anodized panels were delivered, not a single 90° M4 screw could be installed smoothly on the customer’s assembly line – all screws were slightly raised, completely destroying the seamless design aesthetics that the customer was proud of. This not only resulted in the scrapping of an entire batch of valuable (direct loss of panels) > $15,000), but also forced the product launch plan to be delayed by six weeks, which was a huge blow to the startup.

LS’s solution: Professional review and precise execution saved the day

The customer urgently turned to us for rework. Our engineers keenly identified the fundamental risk point of the ambiguity of the countersink angle on the drawing during the first-time DFM (Design for Manufacturing) review.

• Confirmation criteria: We immediately communicated with the customer to clearly confirm that the screws they actually used were 90° M4 screws that met the ISO standard.
• Accurate programming: Based on the confirmed criteria, we clearly defined and executed the precise 90° countersink processing path in the CNC program.
• Strict first inspection: When processing the first piece, we not only rely on the accuracy of the equipment, but also use 90° angle gauges for inspection, and directly use the customer’s actual screws for physical matching tests to ensure “perfect fit and flushness”.

Achievements and Value

With professional insight and efficient execution, we delivered a panel that perfectly met the requirements in just 5 days, successfully helping the customer save valuable time to market. More importantly, this experience made the customer deeply realize that choosing LS not only gained processing capabilities, but also gained key “engineering guarantees”. Through pre-DFM review, we proactively discovered and avoided the “standard traps” hidden in the design drawings, fundamentally preventing expensive mistakes.

Key Takeaway

This case strongly proves that professional CNC  machining services are far more than just following the drawings. An experienced and responsible partner (such as LS) will regard “drawing review” as part of its core value. We are committed to identifying and resolving possible ambiguities between design intent and manufacturing standards before processing starts, becoming a solid line of defense for your product quality and project success.

Machinist’s Quick Reference: Tools, Diagrams, and Drawing Annotations

“Now that you’ve got the theory down, let’s see how to always get it right in practice.”

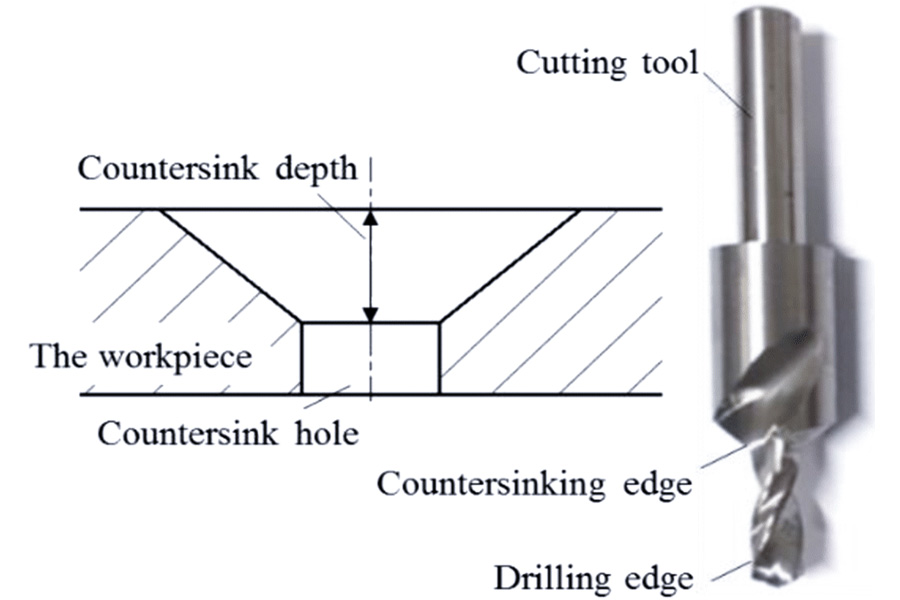

How to Correctly Annotate Countersinks on Engineering Drawings

Clear, unambiguous countersink annotations are key to ensuring that parts are machined to design intent. International standards (ISO/ASME) use a specific symbol to indicate countersink requirements: a V-shaped symbol (∨). This symbol should point directly to the hole feature line that needs to be countersunk.

Key Elements of Annotation:

• Through Hole Information: First, indicate the threaded or clear hole specification (diameter and pitch/type).
• Countersink Symbol: Place the ∨ symbol immediately after.
• Countersink Size: Clearly indicate the major diameter of the countersink (the diameter that allows the screw head to sink).
• Countersink Angle: The angle must be indicated! This is the source of the most common errors and misunderstandings.

Correct Example:

Metric:M5 X 0.8 ↧ ⌀9.8 X 90°Interpretation: An M5 threaded hole (0.8mm pitch) that needs a countersink (∨). The major diameter of the countersink is 9.8mm and the taper is 90 degrees. (↧ is a common alternative to the countersink symbol ∨, especially in some CAD software or older standards).Imperial:1/4-20 UNC ↧ ⌀.478 X 82°Interpretation: A 1/4-20 UNC threaded hole that needs a countersink (∨). The major diameter of the countersink is 0.478 inches and the taper is 82 degrees.

Key Tip:

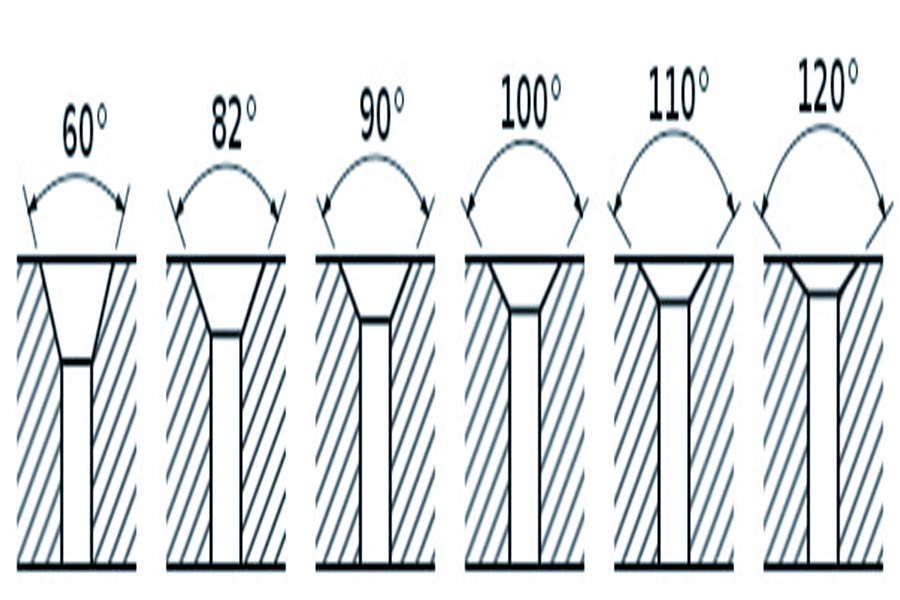

• Always, always specify angles! Do not rely on “default values”. Common countersink angles include 60°, 82°, 90°, 100°, 110°, 120°, etc. Different screws, standards, or application scenarios have different preferred angles. Leaving the processor guessing at the angle is one of the main reasons for scrapped or reworked parts.
• Make sure the countersink symbol (∨ or ↧) is clearly visible and pointing to the correct hole.
• Use standard dimensioning styles and locations.

Countersink Size Chart

Selecting the correct countersink size is critical to ensuring that the screw head is fully sunk and forms a flat surface. The following table provides reference values ​​for recommended countersink sizes for common metric and imperial screws (based on typical screw head sizes and common standards such as ASME B18.2.8):

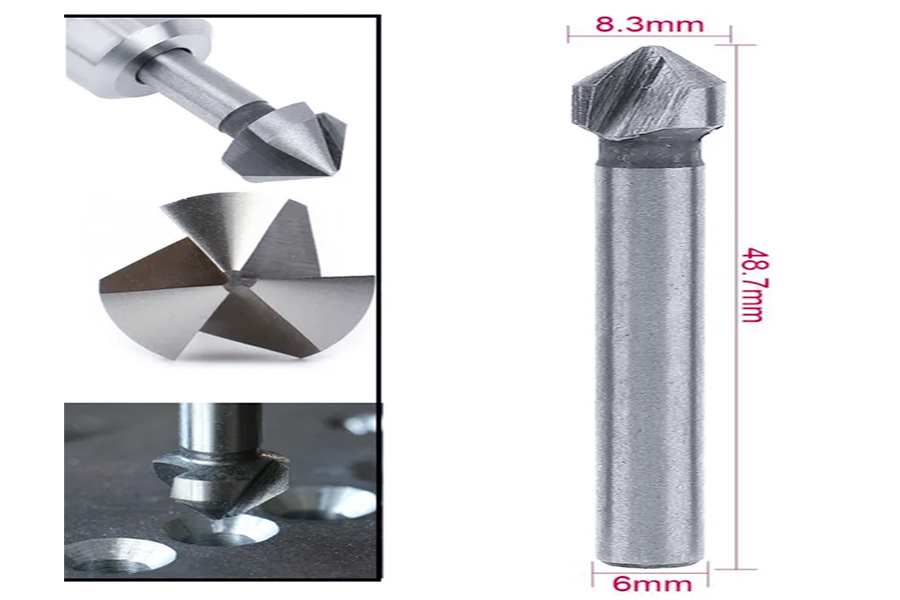

Choosing Tools for Specific Materials (82° Countersinking – Steel)

Tool Materials:

• First Choice: HSS-Co / Cobalt – High temperature and wear resistance, suitable for steel.
• Alternative: Premium HSS – Only suitable for light machining or ordinary carbon steel.

Highly Recommended Coatings:

• TiAlN (Titanium Aluminum Nitride) – Best choice! Extremely high temperature resistance, high hardness, longer tool life, and improved finish.
• TiN (Titanium Nitride) – Economical and practical coating, providing basic protection and lubrication.

Key Machining Parameters:

• Cutting Fluids Must Be Used! – Cooling, lubrication, chip removal, prevent overheating and hardening.
• Lower speed (e.g.: 300-600 RPM) – Reduce frictional heat, avoid excessive tool wear and chattering.
• Steady, moderate feed – Avoid friction or vibration.
• Secure clamping – Ensure that the workpiece and tool are stable to minimize vibration.

Goal: Obtain a clear, smooth, burr-free, vibration-free countersink edge to ensure that the screw is perfectly sunk.One sentence summary: When processing 82° countersinks in steel, choose cobalt alloy + TiAlN coated tools, use sufficient cutting fluid + low speed + steady feed, and eliminating vibration is the key.

FAQ – Clear up your last doubts

1. So, which is better, 82° or 90° countersunk hole?

This question itself is a false proposition. There is no absolute “better” countersunk hole angle, only “right” or “wrong”. The correctness depends entirely on the manufacturing standard of the screw: metric screws (such as DIN/ISO standards) must match 90° countersunk holes, and imperial screws (such as ANSI standards) strictly correspond to 82° countersunk holes. Mixing will cause the screw head to not fit completely, resulting in stress concentration or uneven assembly, and even loosening or structural failure. Therefore, the only rule for choosing an angle is to follow the standard system to which the screw belongs. Any practice that deviates from the standard to discuss the pros and cons is unprofessional engineering practice.

2. What is the standard countersunk hole angle?

There are two major mainstream standards in the world: the US-dominated 82° (common in imperial screws of ANSI/ASME standards) and the internationally used 90° (for metric screws of ISO/DIN standards). Both are “standards”, but they are incompatible. The basis for selection depends on the region where your project is located, the screw standards of the supply chain, and the design specifications (for example, 90° is required for export to Europe, and 82° is mostly used for North American projects). The key is to unify the standards in the same project to avoid mixing. If the supply chain is unclear, the screw type must be confirmed in advance, otherwise there will be a risk of assembly failure or increased costs.

3. Can I measure the countersunk angle without screws?

Absolutely. There are three ways to measure professionally: 1. Use a countersunk angle gauge (special measuring tool) to directly fit the hole mouth reading; 2. Use a tapered gauge (plug gauge) to quickly verify the angle by matching the taper; 3. Use an optical comparator (contour projector) in high-precision scenarios to enlarge the hole edge contour and compare it with the standard angle line. Among them, the tapered gauge is suitable for rapid on-site sampling, and the optical method has the highest accuracy but requires a laboratory environment. The test can be completed independently without screws, but it is necessary to ensure that the measurement tool is calibrated and qualified, and pay special attention to clearing the debris in the hole to ensure the accurate fit of the measurement surface.

Conclusion

The debate over 82-degree and 90-degree countersunk holes is not simply a matter of angles, but a watershed between global manufacturing standards (such as ISO 10642) and “taken for granted” empiricism. This subtle difference of 8 degrees is actually a touchstone for distinguishing professional precision machining from potential risks – 90-degree holes can easily cause standard countersunk screws to be unable to be installed flush, causing interference or assembly problems, forcing customized non-standard tools to increase costs and delays. It is a profound warning: in the field of CNC machining, ignoring standards is the highest cost. Choosing an 82-degree design that meets international standards is the cornerstone for ensuring compatibility, reliability and a smooth supply chain. Don’t let an angle choice become a stumbling block for your project! It is a wise choice to choose a service with strict DFM review (such as LS) to accurately avoid such risks before machining.“Don’t let an angle problem drag down your project schedule and budget! LS’s online CNC machining service has a strict built-in DFM review process. Our engineers can identify and correct such potential risks for you before machining starts. Upload your CAD file now, get an instant quote, and experience our professional ability to accurately avoid risks for your project!” 📞 Phone: +86 185 6675 9667 📧 Email:info@longshengmfg.com 🌐Website:https://www.longshengmfg.com/
