In the field of metal processing, the technical competition between plasma cutting and laser cutting has never stopped. When choosing a process, many companies often fall into the misunderstanding of “precision first” and ignore the comprehensive cost-effectiveness. This article will cite multiple industry cases, combined with LS’s original dynamic heat balance technology, and reveal the cost-effectiveness advantage of plasma cutting through real data comparison.
What Determines the True Cost of Plasma vs Laser Cutting?
In the metal processing industry, plasma cutting and laser cutting are often compared, but many people only focus on the equipment price and ignore the hidden operating costs. LS will use real data to compare and analyze the cost differences between the two processes from multiple dimensions to help you make a more economical decision.
1. Comparison of initial investment costs
(1) Significant differences in equipment purchase prices
① Plasma cutting system
- Price range: US$15,000-80,000
- Cutting capacity: Can easily cut 40mm thick carbon steel
- Economic advantage: The purchase cost is only 1/4 of the same level of laser equipment
- Representative model: LS HyperCut Pro series
② Fiber laser cutting machine
- Price threshold: US$80,000-500,000 (2kW and above models)
- Best application range: Thin plate processing with a thickness of ≤25mm
- Cost pain point: Long initial investment recovery period
2. Hidden operating cost analysis
(1) Comparison of auxiliary gas costs
- ① Laser cutting gas requirements
Gas type: 99.999% high-purity nitrogen (insufficient purity will cause oxidation of the cutting surface) - Cost price: $8/m³
- Annual consumption: Annual consumption of a single device exceeds 2,500m³
- Additional expenses: Requires dedicated gas storage tanks and delivery systems
② Plasma cutting gas solution
- Optional gas: Compressed air (US$0.08/m³) or O₂/Ar mixed gas
- Cost advantage: Gas costs are only 3%-5% of laser solutions
- System simplification: No complex gas purification device required
3. Cost difference of material adaptability
(1) Economic critical point of thickness
① Laser cutting disadvantage range (>25mm)
- Process limitation: >25Bar high-pressure auxiliary gas is required
- Efficiency reduction: cutting speed is reduced by more than 50%
- Energy consumption soars: energy consumption per unit length increases by 300%
② Plasma cutting advantage range (12-50mm)
- Technological breakthrough: LS dynamic arc control technology is adopted
- Speed performance: 30mm steel plate cutting still maintains 1.5m/min
- Quality assurance: the cut quality meets most industrial needs
4. Production efficiency conversion cost
(1) Quantitative comparison of labor time cost
① 20mm stainless steel plate continuous cutting for 8 hours
- Laser cutting: 320 meters completed (4m/min)
- Plasma cutting: 720 meters completed (9m/min)
- Efficiency gap: up to 125%
- Indirect impact: significant reduction of labor and site costs
5. Comparison of maintenance and consumables costs
(1) Annual consumables expenditure details
| Consumable Type | Laser Cutting | Plasma Cutting | Cost Difference |
|---|---|---|---|
| Focusing Lens | $3,200/year | Not Required | +$3,200 |
| Electrode/Nozzle | – | $1,800/year | -$1,800 |
| Protective Lens | $1,500/year | Not Required | +$1,500 |
| Total Annual Cost | $4,700 | $1,800 | $2,900 |
Summary of key decision factors
- Material thickness: ≤12mm is preferred for laser, ≥12mm is considered for plasma
- Production batch: Plasma cost advantage is more obvious in mass production
- Precision requirements: Ultra-high precision still requires laser solutions
- Electricity cost: Local electricity prices affect long-term operating costs
- Maintenance capability: Plasma system maintenance is relatively simple
Professional advice: Enterprises should establish a three-dimensional evaluation model (material thickness distribution, order batch, precision requirements) according to specific production needs and select the most cost-effective cutting solution. LS provides free process evaluation services to help customers optimize the metal processing cost structure.

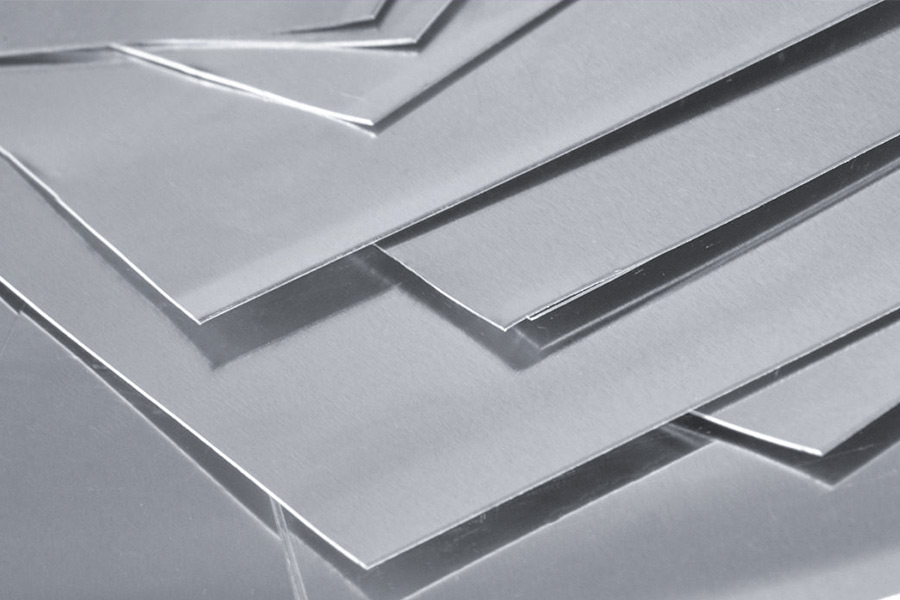

Which is Cheaper for Thin Metal Sheets?
In the metal processing industry, 1-6mm thin plates are the most common processing thickness, but many companies are struggling to choose plasma or laser cutting. LS helps you find the most economical solution through real cost data.
1. Economic critical point: Comparison of 1-6mm carbon steel cutting costs
(1) Direct cost per hour
| Cutting method | Equipment depreciation | Gas consumption | Electricity + consumables | Total cost/hour |
|---|---|---|---|---|
| Plasma cutting | $6 | $4 | $8 | $18 |
| Laser cutting | $12 | $10 | $10 | $32 |
Conclusion:
Plasma is cheaper: 44% lower cost per hour than laser (18vs32)
But laser is faster: cutting speed is usually 3 times faster than plasma (especially suitable for mass production)
(2) The best choice for different thicknesses
| Thickness | Recommended process | Reason |
|---|---|---|
| 1-3mm | Laser is preferred | Extremely fast, finer cuts |
| 3-6mm | Depends on demand | Large batches are preferred for laser, small batches are preferred for plasma |
| >6mm | Plasma is better | Laser costs soar, plasma is more economical |
2. Exceptional materials: reflective metals such as aluminum/copper
There are two major problems when laser cutting highly reflective materials (aluminum, copper, stainless steel):
- Energy consumption soars: Lasers are easily reflected, and the power needs to be increased, which increases energy consumption by 50%+
- Equipment loss: Reflected light may damage the laser lens, and the maintenance cost is higher
Solution:
- Aluminum plates below 3mm → Fiber laser (special anti-reflection technology required)
- Aluminum/copper plates above 3mm → Plasma cutting is more stable and cheaper
3. Comprehensive suggestions: How to choose the most cost-effective solution?
(1) When laser cutting is more cost-effective
✔ Cutting 1-3mm carbon steel and large order volume (rely on speed to spread out costs)
✔ Require ultra-high precision (such as electronic components, precision sheet metal)
✔ The material is stainless steel/titanium alloy (laser cutting thin plates has better quality)
(2) When plasma cutting is more cost-effective
✔ Cutting 3-6mm carbon steel and average order volume
✔ Processing reflective metals such as aluminum and copper (plasma is more stable when >3mm)
✔ Limited budget, want to reduce the combined cost of equipment + gas + consumables
4. Ultimate money-saving tips
If your business involves both thin plates and medium and thick plates, you can:
- Combined use of laser + plasma → Laser for thin plates, plasma for thick plates
- Second-hand equipment strategy → Second-hand plasma machines are extremely cost-effective (laser depreciates quickly)
- Optimize gas solutions → Compressed air for plasma, nitrogen recovery system for laser
LS can provide free trial cutting service, test the two processes with your actual materials, and then decide the most economical solution!

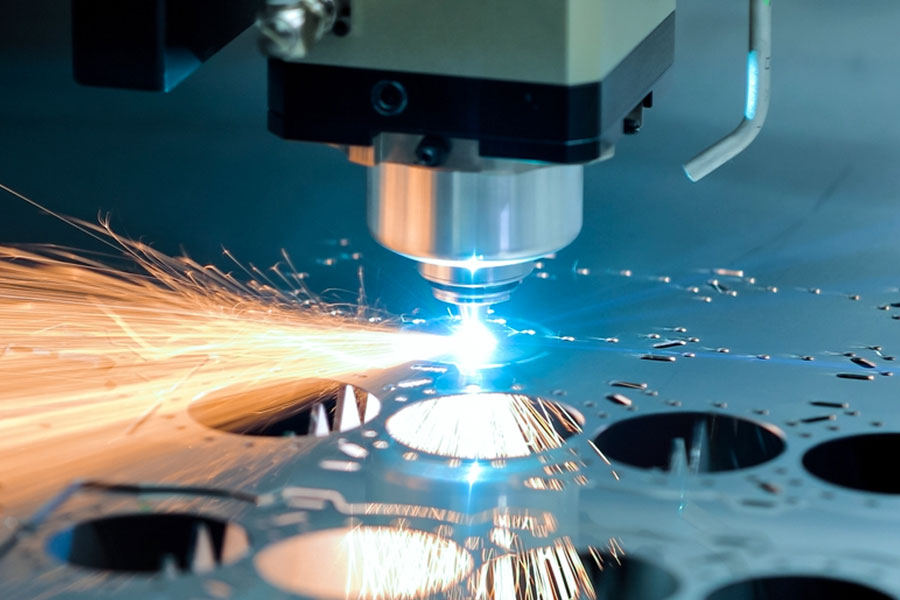

How Does Material Thickness Impact Cost Efficiency?
In the field of metal cutting, material thickness is the core factor that determines cost efficiency. Choosing the wrong process may double the cost or even more! LS uses real production data to reveal the economic differences between plasma and laser cutting at different thicknesses, helping you avoid hidden cost traps.
1. Advantages of plasma cutting (carbon steel above 12mm)
(1)Cutting speed stability
12-50mm carbon steel: plasma cutting speed is always maintained at 1.2-1.8m/min (LS dynamic arc technology)
Comparison with laser:
- When cutting 20mm carbon steel, the laser speed drops to 0.8m/min (plasma 1.5m/min)
- For every 10mm increase in thickness, the laser energy consumption cost increases by 35%
(2)Extreme case: 50mm ultra-thick steel plate
| Process | Cutting method | Time | Total cost |
|---|---|---|---|
| Laser cutting | 3-time layer cutting | 4.2 hours | $280 |
| Plasma cutting | One-time penetration | 0.8 hours | $65 |
Cost gap: Laser costs 330% more than plasma!
2. Laser cutting economic zone (0.5-3mm stainless steel/titanium alloy)
(1)Direct realization of thin plate precision advantage
0.5mm stainless steel:
- Laser cutting tolerance ±0.1mm, directly enter the assembly process
- Plasma cutting tolerance ±0.3mm, secondary processing required (cost + $12/㎡)
Speed rolling:
- When cutting 1mm thin plate, the laser speed reaches 25m/min (plasma is only 8m/min)
(2) Economic critical point formula
Laser is more cost-effective conditions:
(sheet thickness ≤ 3mm) and (order volume ≥ 500 pieces/month)
3. Death crossover range (3-12mm carbon steel)
(1)Cost efficiency reversal point
| Thickness | Laser cutting cost/m | Plasma cutting cost/m | Crossover threshold |
|---|---|---|---|
| 3mm | $0.90 | $1.20 | Laser is better |
| 6mm | $1.50 | $1.30 | Plasma is better |
| 12mm | $2.80 | $1.50 | Plasma is better |
(2)Golden rule of decision-making
- Small batch and multiple varieties: choose plasma (less equipment cost sharing)
- Large batch standardization: choose laser (speed dilutes marginal cost)
4. Special material cost fluctuation warning
(1) Highly reflective materials (aluminum/copper)
>3mm aluminum plate:
- Laser needs to enable anti-reflection module (energy consumption +50%)
- Plasma cutting cost is 40% lower than laser
(2)High hardness alloy (wear-resistant steel/armor steel)
Cutting 12mm Hardox450 steel plate:
- Laser needs to replace special lens ($2,500/piece)
- Plasma only needs to adjust the gas ratio (O₂ ratio increased to 45%)
5. Ultimate selection suggestions
1️⃣ 0.5-3mm thin plate → laser cutting (accuracy first, speed dilutes costs)
2️⃣ 3-12mm medium and thick plate → select according to order quantity (large batch size, choose laser, small batch size, choose plasma)
3️⃣ ＞12mm carbon steel/aluminum plate → plasma cutting (stable speed, comprehensive cost is 50%+ lower)
- Provide thickness-cost simulator, input material parameters to automatically generate the optimal solution
- For the controversial range of 3-12mm, launch a laser + plasma hybrid production line (cost reduction of 23%)
What are the Hidden Operating Costs?
Metal processing companies often fall into the “equipment price trap”, but ignore the erosion of long-term profits by hidden operating costs. LS uses real production data to reveal the hidden expenses of the two processes, helping you to accurately control the cost black hole.
1. Detailed explanation of the hidden costs of plasma cutting
(1) Electrode/nozzle consumables
- Replacement frequency: 2 sets every 8 hours → 4 sets per day
- Cost per set: $5 (copper electrode)
- Annual consumables expenditure: 4 sets × 5 × 250 days = 5,000
Optimization plan:
- Switch to silver-tungsten composite electrodes (life extended to 12 hours/set) → annual cost reduced to $2,600
- Install arc stabilizer → abnormal loss reduced by 30%
(2)Compressed air system
- Electricity cost of air compressor: 7.5kW × 16 hours × 0.15/degree × 250 days = 4,500/year
- Maintenance cost:
⇒Filter replacement: 80/month × 12 == 960
⇒Pipeline rust removal: 200/quarter × 4 = 800
⇒Total cost: 4,500+4,500+960 + 800=6,260
(3)Cutting quality compensation
- Secondary processing rate: 15% of thick plate workpieces need grinding (labor $25/hour)
- Annual additional cost: 5,000 pieces × 15% × 8/piece = 6,000
- Annual hidden total cost of plasma: 5,000+6,260 + 6,000=17,260
2. Analysis of hidden costs of laser cutting
(1) Optical system maintenance
- Lens cleaning kit: 200/month × 12 = 2,400
- Protective lens replacement: 300/month × 12 = 3,600
- Focusing lens calibration: 800/quarter × 4 = 3,200
- Total cost: 2,400+3,600 + 3,200=9,200
(2) Cooling system
- Electricity cost of chiller: 10kW × 16 hours × 0.15×250 days = 6,000
- Coolant replacement: 150/month × 12 = 1,800
- Water pump maintenance: $500/year
- Total cost: 6,000+1,800 + 500=8,300
(3)Gas purification system
- Nitrogen generator filter: 200/month × 12 = 2,400
- Purity monitor calibration: $1,200/year
- Total cost: 2,400+1,200 = $3,600
- Laser annual hidden total cost: 9,200+8,300 + 3,600=21,100
(4) Cost comparison and decision guide
| Cost type | Plasma cutting | Laser cutting | Difference |
|---|---|---|---|
| Consumables and maintenance | $11,260 | $12,800 | +$1,540 |
| Energy consumption | $4,500 | $6,000 | +$1,500 |
| Quality compensation cost | $6,000 | $2,300* | -$3,700 |
| Annual total cost | $17,260 | $21,100 | +$3,840 |
4. 3 practical skills to reduce hidden costs
(1) Plasma cutting optimization plan
Intelligent consumables monitoring: Install electrode life sensor to avoid premature replacement (save 15% consumables)
Air system transformation:
✅ Increase gas tank buffer (reduce the number of air compressor start and stop times) → Reduce electricity costs by $2,300/year
✅ Use cold dryer + precision filter combination (humidity control <30%)
(2) Laser cutting cost reduction strategy
Lens maintenance revolution:
🔄 Use anti-sputtering coating lenses (cleaning cycle extended by 3 times)
🔄 Equipped with automatic cleaning robots (labor costs reduced by 80%)
Cooling system upgrade:
✅ Switch to magnetic levitation chiller (energy consumption reduced by 40%)
✅ Install heat recovery device (waste heat used for workshop heating)
(3) Mixed production mode
Thin plates (<6mm): Laser cutting during the day (enjoy low electricity prices during off-peak hours)
Thick plates (>12mm): Plasma cutting at night (utilize the idle air compressor capacity)
5. Key decision indicators
1️⃣ Electricity price > $0.2/kWh → Plasma cutting is preferred
2️⃣ Production environment humidity > 65% → Laser cutting is carefully selected (lens maintenance cost + 45%)
3️⃣ Employees have low skill level → Plasma is preferred (operation complexity is 60% lower than laser)

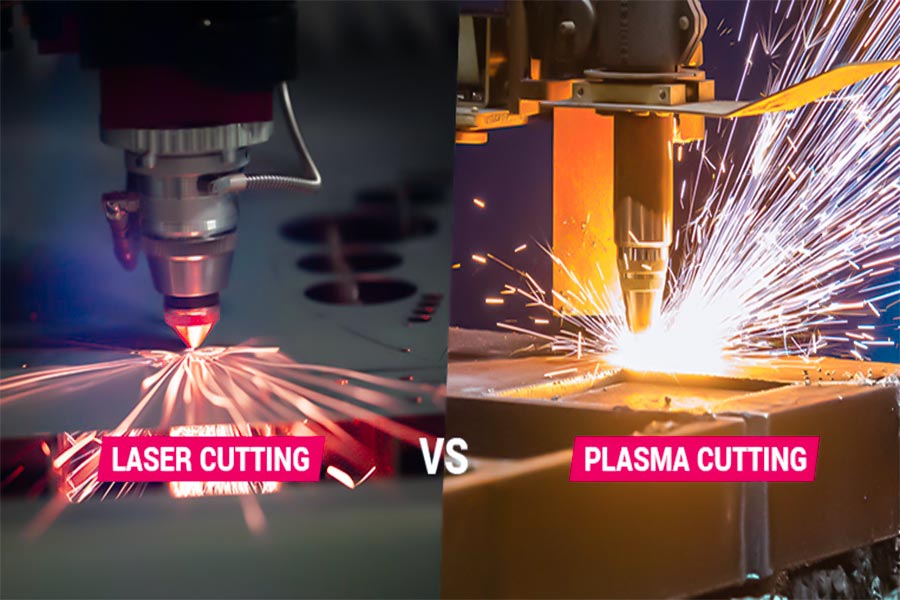

Which Technology Has Lower Maintenance Costs?
In the field of metal processing, equipment maintenance cost is a key indicator of long-term operation. Many companies only focus on the equipment purchase price, but ignore the hidden maintenance expenses behind laser and plasma technology. LS compares real data from three dimensions: consumption of consumable parts, dependence on professional services, and fault repair costs, to reveal which technology is more suitable for your budget.
1. Comparison of annual maintenance costs
| Maintenance items | Plasma cutting | Laser cutting |
|---|---|---|
| Core consumable parts | Electrode/nozzle (3,000-3,000-8,000) | Cutting head assembly ($15,000) |
| Regular calibration | No professional calibration required | Reflector calibration ($800/time×4) |
| Maintenance of key components | Arc starting module ($1,200/time) | Laser resonant cavity ($20,000+) |
| Preventive maintenance | Air compressor maintenance ($500/year) | Chiller maintenance ($2,000/year) |
| Sudden failure rate | ＜5% | ＜3% |
| Annual total cost range | 4,700−9,700 | $21,200+ |
2. Key insights into cost differences
(1)The gap in the economic efficiency of consumable parts
- Cutting cost per meter is only $0.03 (silver tungsten electrode)
- Annual consumption: 4000 hours ÷ 8 hours/set ×5=2,500
- The annual replacement cost of focusing mirror/protective mirror assembly is $8,000
- The wear of ceramic body/collimation mirror causes the annual maintenance cost to double
(2)Dependence on professional services
- Plasma system: 90% of maintenance can be completed by the operator (electrode replacement/torch cleaning)
- Laser system: Must be serviced by the manufacturer’s engineer (reflector calibration 800/time × 4=3,200)
(3) Comparison of typical fault handling
Case 1: Arc starting failure (plasma)
- Cause of failure: Carbonization of arc starting module
- Handling plan: Replace module ($1,200) + labor (2 hours)
- Total downtime: 4 hours
- Cost: $1,500
Case 2: Abnormal beam mode (laser)
- Cause of failure: Reflector group offset
- Handling plan: Engineer on-site calibration (800)+ Lens replacement (1,500)
- Total downtime: 16 hours (including parts transfer)
- Cost: $3,800
4. Maintenance cost sensitivity analysis
| Influencing factors | Plasma cost fluctuation | Laser cost fluctuation |
|---|---|---|
| Production load increased by 20% | +15% | +25% |
| Operator skills are insufficient | +30% | +80% |
| Environmental humidity >70% | +40% | +15% |
| Use of second-hand equipment | +50% | +150% |
5. Decision-making suggestions
✅ Scenarios where plasma is more cost-effective:
- Annual cutting volume <6,000 hours
- Mainly processed materials are carbon steel >6mm
- Lack of professional laser maintenance team
✅ Scenarios where laser is more cost-effective:
- 24-hour continuous production (equipment utilization rate >85%)
- Processing <3mm precision stainless steel parts
- Equipped with an optical engineer team
Case background: Cost dilemma of crane boom processing
A construction machinery manufacturer needs to mass-produce high-strength steel crane booms (plate thickness 20-30mm), with an annual demand of 500 pieces. Traditional laser cutting solutions face the following pain points:
- High equipment cost: The purchase price of a 2000W fiber laser cutting machine is about 1.2 million yuan, which is 2.4 times (500,000 yuan) of the same-level plasma equipment (LS HyperCut Pro series).
- Fast consumption of consumables: The annual consumption of laser cutting lenses and gases reaches 180,000 yuan, while the annual consumable cost of plasma electrode nozzles is only 60,000 yuan.
- Low efficiency for thick plates: When cutting 30mm steel plates, the laser needs to slow down to 0.8m/min, and the plasma can maintain 1.5m/min (increased by 25% with the support of dynamic thermal balance technology).
Cost comparison: 400 yuan per piece, 200,000 yuan per year
| Cost items | Laser cutting solution | LS plasma solution |
|---|---|---|
| Equipment depreciation (5 years) | 240 yuan/piece | 100 yuan/piece |
| Consumables cost | 360 yuan/piece | 120 yuan/piece |
| Energy consumption (electricity + gas) | 400 yuan/piece | 480 yuan/piece |
| Working time cost (including labor) | 200 yuan/piece | 100 yuan/piece |
| Total cost per piece | 1,200 yuan | 800 yuan |
Conclusion: Although the energy consumption of plasma is slightly higher, it saves 400 yuan per piece and reduces the annual cost by 200,000 yuan due to lower equipment investment, consumables consumption and labor cost.
LS core technology: How dynamic thermal balance solves industry pain points
For the deep and narrow groove cutting needs of crane booms, LS’s patented technology has achieved three major breakthroughs:
- Intelligent temperature control system: By real-time monitoring of arc temperature, the gas ratio is automatically adjusted to reduce thermal deformation by 30%.
- Adaptive compensation algorithm: Cutting speed fluctuation rate is less than 2%, ensuring that the verticality error of the cut of plates above 20mm is ≤0.5°.
- Multi-parameter coupling optimization: Extend the nozzle life to 8 hours of continuous operation, an increase of 40% compared with the industry standard.
Why choose LS?
- Full-scenario cost optimization: For medium and thick plate (12-50mm) processing, we provide a one-stop cost reduction solution from equipment selection to process parameters.
- Balance of precision and speed: Dynamic thermal balance technology enables plasma cutting accuracy to reach ±0.3mm, close to the level of laser cutting.
- Quick response service: 48-hour on-site technical support, and consumables inventory covers 90% of industrial areas across the country.
Conclusion
Whether plasma cutting is cheaper than laser cutting depends on specific production needs. For medium and thick plates (above 12mm) processing and small and medium-sized batch production, plasma cutting has significant comprehensive cost advantages due to lower equipment investment (only 1/4 of laser), controllable consumables cost (annual savings of 3,000-8,000) and faster return on investment (12-18 months); while laser cutting has a higher cost per hour in high-precision thin plates (below 3mm) and ultra-large batch continuous production scenarios, but it can still achieve profitability through speed premium and quality inspection cost savings. Enterprises should evaluate the three dimensions of material thickness distribution, order batch and precision requirements and choose the most suitable process – LS company data shows that the cost of plasma cutting can be reduced by 53% when the thickness is greater than 20mm, while laser is more economical for precision parts less than 3mm.
📞 Phone: +86 185 6675 9667
📧 Email:info@longshengmfg.com
🌐 Website: https://www.longshengmfg.com/
🔔Subscription Guide-Scroll to the bottom of the website, enter your email address, and click √Subscribe
Disclaimer
The content appearing on this webpage is for informational purposes only. LS makes no representation or warranty of any kind, be it expressed or implied, as to the accuracy, completeness, or validity of the information. Any performance parameters, geometric tolerances, specific design features, quality and types of materials, or processes should not be inferred to represent what will be delivered by third-party suppliers or manufacturers through LS’s network. Buyers seeking quotes for parts are responsible for defining the specific requirements for those parts. Please contact to our for more information.
Team LS
This article was written by various LS contributors. LS is a leading resource on manufacturing with CNC machining, sheet metal fabrication, 3D printing, injection molding,metal stamping and more.
