In today’s manufacturing, the continually improving precision of intricate part geometries such as aerospace parts and medical instruments poses daunting challenges to manufacturing technology. Conventional multi-step, multi-clamp methods are prone to cumulative errors, make precision unattainable, inefficient, and costly.
The introduction of 5-axis simultaneous machining technology is a revolutionary solution to this issue. It is not just a technological advancement; it is a paradigm shift in manufacturing. It makes “one-clamping, complete machining” possible, dramatically opening up the design freedom, enabling the machining of complex curved surface and deep cavities and essentially guaranteeing ultimate workpiece accuracy and machining efficiency.
Leaning on its advanced five-axis machining centers and robust industry heritage, LS Manufacturing has translated this technology advantage into customer value and become a trusted manufacturing partner for leading companies in industries, helping them maintain their very essence competitiveness in high-end production. To save you time, here’s a quick overview of the core conclusions.
5-Axis Simultaneous Machining Core Quick Reference
| Dimensions | Core Content |
| Technical Definition | A five-axis CNC machining process in which the five axes (three linear axes (X/Y/Z) + two rotary axes (A/C)) of a machine tool coordinate motion together to produce intricate parts. |
| Core Benefits | Single clamping five-sided machining, eliminating cumulative errors that accompany repeated clampings and ensuring very high positioning accuracy and overall quality of machining. |
| Key Values | Increased Precision: Fewer datum conversions result in more precision. Improved Efficiency: Streamlined processes and shorter lead times. Enables Complex Designs: Can be utilized to machine intricate surfaces and special-shaped structures not possible with traditional methods. |
| Applications | Aerospace structural components, impellers/turbines, medical implants, precision molds, car prototypes, and other parts featuring complex surfaces, deep cavities, or for multi-angle machining. |
| Solution Provider | LS Manufacturing: Through state-of-the-art five-axis machines and thorough industry expertise, we provide customers one-stop precision machining solutions from design through production. |
5-axis simultaneous machining, which completes the entire manufacturing process of complex parts in one clamping, is a key technology for achieving high precision, high efficiency, and design freedom.
Choose a partner with proven technology and experience like LS Manufacturing to best enable companies to overcome the barriers of high-end manufacturing and be able to compete fairly in the marketplace.
Why Trust This Guide? Practical Experience From LS Manufacturing Experts
The experience and advice contained in this book are sharpened by LS Manufacturing’s more than fifteen years of real-world expertise in five-axis machining. Our experience is not only theoretical analysis; it’s highly embedded in each technical issue.
For example, LS Manufacturing machined a massive, one-off-shaped titanium alloy component for an aerospace client with very detailed conformal cooling channels. By employing five-axis machining technology, we machined all six features on the workpiece simultaneously, reducing the 0.1mm total error caused by traditional multiple clamping to 0.015mm and shaving manufacturing cycle time by nearly 40%.
Our experience of production on numerous challenging materials, such as medical implants, has given LS Manufacturing a deep understanding of how to avoid machining chatter, maximize tool paths, and achieve accurate and consistent cuts every time. These solutions from real production environments are the foundation of our dependable work.

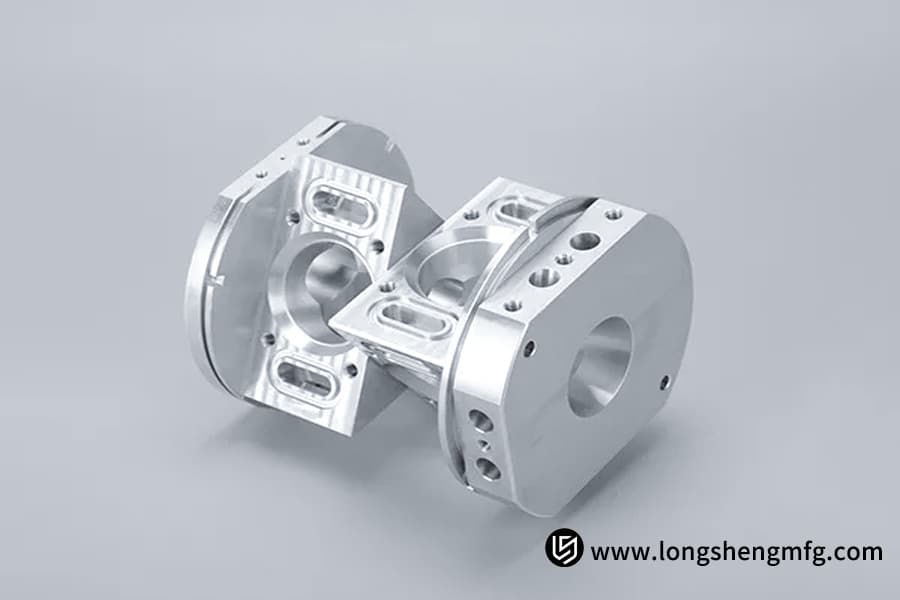

How does 5-axis machining become the ultimate solution for complex part manufacturing?
5-axis simultaneous machining does much more than simply add two rotary axes. The heart of its strategic value is the continuous, coordinated interpolation of the workpiece and tool along all five axes. This enables it to tackle machining challenges not possible using traditional three-axis machine tools and make it the ultimate solution for complex part machining. Specifically, its strengths are:
1. Overcoming Geometric Challenges:
By continuously deflecting the tool axis, it easily allows the tool side edge to cut the sidewalls of deep holes or precisely machine undercut regions with the use of the tool tip, preferably addressing the complex curved surfaces and impeller flow paths of aerospace structures.
2. Ensuring Ultimate Precision:
With its “five-sided machining in a single setup” feature, it completely eliminates the compounded errors that come with successive repositioning, granting good part accuracy and improved quality right from the start.
3. Unleashing Design Freedom:
Manufacturers can no longer settle for anything less than ” manufacturability” any more. 5-axis simultaneous machining enables them to smoothly transition fluid movements of increasingly complex designs from computer files to physical products, actually establishing a seamless transition between design and production.
It is this ability to resolve geometric constrains through dynamic movement and carry out all process steps in a single manner that 5-axis simultaneous machining is the strategic foundation for efficiently and accurately manufacturing complex pieces, setting itself as the complete solution.

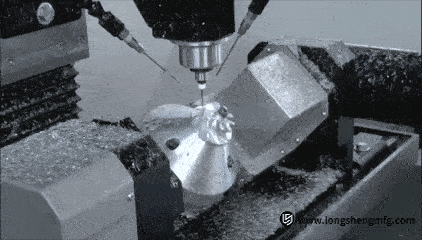

Why is “single clamping” key to ensuring high precision and quality?
In precision manufacturing, every re-clamping of the workpiece is a loss of precision and addition of risk. Traditional multiple clamping causes a series of problems, including datum misalignment and repeated positioning error stacking, which severely limits the upper bound of final part quality. Single clamping resolves this issue at root cause level. Its prime advantages are apparent from comparison:
1. Eliminating Cumulative Errors:
Multiple clamping creates micron-level positioning errors between process stages. They accumulate and ultimately affect critical dimensions. Single clamping completes all process steps within a single datum coordinate system, effectively eliminating error accumulation of course becoming the basis to achieve stable, high accuracy.
2. Ensure Positional Relationships:
For features with complex angular detail (such as angled holes and slanted cavities), precise relative position tolerances between the features are necessary. Single-setup machining ensures all features are machined in a single setup positioning operation with their optimum relative positions being maintained to perfection.
3. Improve Surface Consistency:
Multiple clampings can require multiple clampings, which are bound to produce scratches or deformation on the machined surface. Single-setup machining eliminates handling and changeovers, better protects the workpiece, and ensures finish surface quality and integrity.
With the 5-axis machining facility of LS Manufacturing, “single-setup” is not a mere process but rather a philosophy that ensures absolute quality and precision. It is an essential process tenet, especially in a line of business such as aerospace where reliability is a vital component.
Can five-axis machining truly reduce your overall manufacturing costs?
When evaluating the 5-axis machining cost, focusing solely on the equipment hourly rate is a misunderstanding. True economics lie in optimizing overall manufacturing costs. While 5-axis machine rates may be higher, they offer significant cost savings by significantly streamlining the overall production process.
| Cost Structure | Traditional Multi-Process Machining | LS Manufacturing 5-Axis Machining |
| Equipment/Work Hours | Lower Unit Price | Higher Unit Price, but Significantly Reduces Total Process Time |
| Fixtures | Requires multiple sets of specialized fixtures | Simplifies or eliminates the need for complex fixtures, reducing costs |
| Secondary Operations | Relies on multiple machines such as EDM and milling | Completes in one machine, eliminating additional costs |
| Scrap Rate | Multiple setups are prone to errors and result in high scrap rates | Single setups ensure precision and significantly reduce scrap rates |
- Time and Efficiency: Completing the majority of processes in a single setup eliminates the need for repeated positioning, adjustment, and workpiece transfers between machines, thereby shortening the overall production cycle.
- Tooling and Secondary Operations: It reduces or even eliminates the need for complex, specialized fixtures and can directly machine many features that would otherwise require secondary processes like electro-discharge machining (EDM), saving significant equipment and labor.
- Reliability and Quality: As explained earlier, single-setup machining naturally eliminates the possibility of scrap and rework caused by manual intervention and datum conversion, saving cost directly associated with quality defects.
From the viewpoint of a project’s overall cost of ownership, LS Manufacturing’s 5-axis machining with its higher integration and reliability not only returns on investment but also proves to be a strategic choice for reducing overall manufacturing costs and meeting time to market.

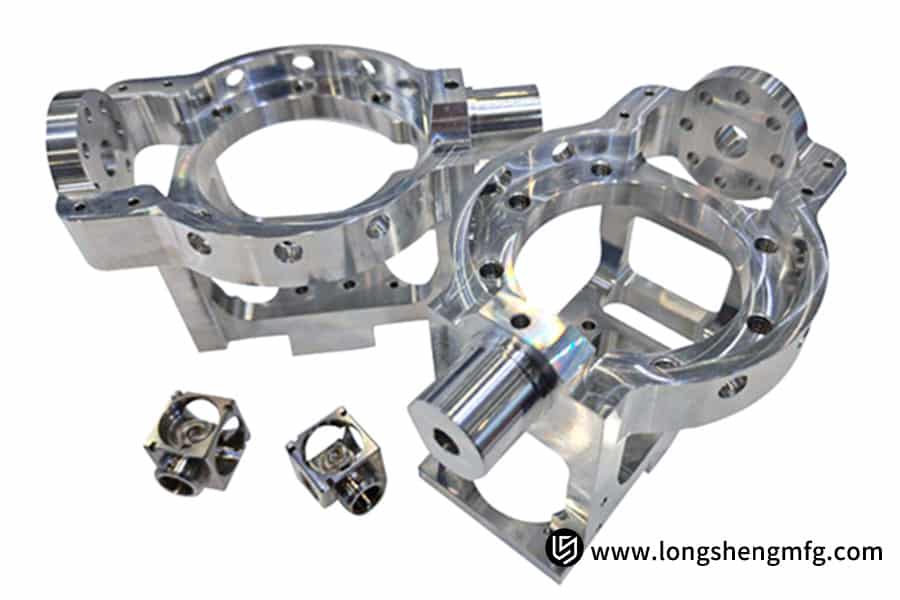

Which industries and parts benefit most from 5-axis simultaneous machining?
5-axis simultaneous machining technology is not suited for all applications, but its value is best realized in the manufacture of extremely complex, high-added-value components. Its excellent ability to machine complex parts has made it a key technology in high-end manufacturing sectors such as aerospace, medical devices, and automobile. The following industries and typical parts are likely to benefit most from it:
1. Aerospace:
This is a quintessential application of aerospace CNC machining. Engine blades, blisks, and casings are not only made of difficult-to-machine materials but also have extremely complex aerodynamic surfaces. 5-axis machining can finish all these surfaces with high accuracy in a single clamping operation, not achievable by conventional methods. This provides unsurpassed aerodynamic performance and structural integrity.
2. Medical device manufacturing:
Bone implants, such as artificial joints, and surgical instruments are some such applications. These generally require sophisticated, biological surfaces, which precisely replicate the human form and demand extremely high surface finish and biocompatibility. 5-axis machining can efficiently and accurately machine these customized contours, meeting the medical profession’s stringent quality and consistency standards.
3. High-precision automotive and energy industries:
Parts such as turbocharger impellers and high-precision engine molds rely on efficient fluid flow paths and complex geometries. 5-axis technology allows such flow paths to be machined with high precision in a single setup, improving product performance and life by a huge degree.
Something that runs through these industry elements is their geometric complexity, material requirement needs, and extremely high quality demands. LS Manufacturing’s 5-axis machining capabilities are at the center of fully comprehending these industry needs and providing customers with customized, value-added manufacturing solutions.
What core capabilities should you consider when selecting a 5-axis machining service provider?
In selecting a competent 5-axis machining service provider, equipment type and quantity should not be the sole specifications. The actual value gap comes from the overall hard power of high-end manufacturing. Clients must seek out the following essential abilities that will determine project success.

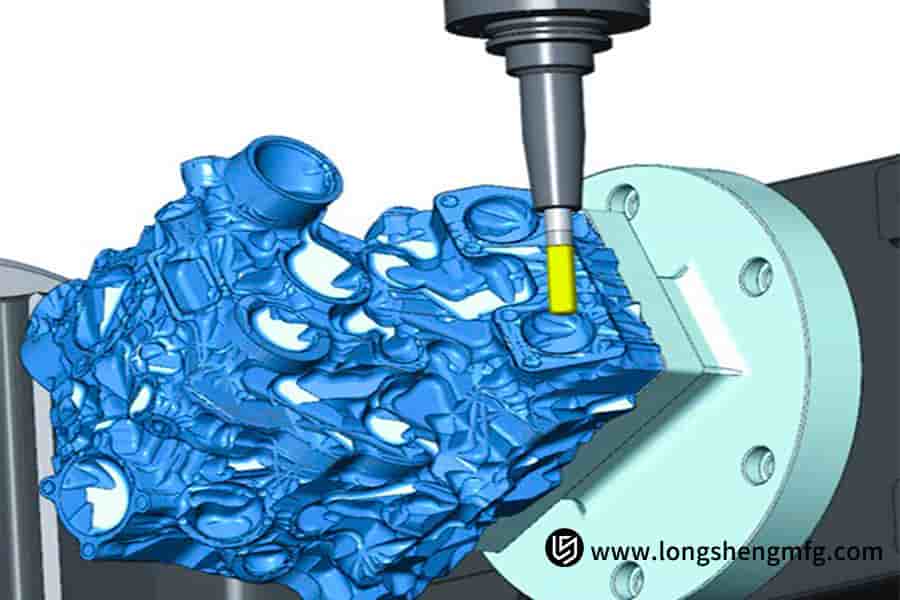

1. Advanced CAM Programming and Simulation Capabilities:
Advanced 5-axis motion trajectories require expert CAM software. Excellent service providers, besides offering programming skills, can accurately foresee and avoid interference and collision between tools, spindles, and workpieces during complete-process simulation. This is the top priority requirement in ensuring machining safety and success rates.
2. Deep Materials and Process Knowledge:
For products like aerospace titanium alloys and difficult-to-cut stainless steel medical applications, the shown cutting parameter repository of a service provider and process strategies have direct control over the quality of the finished part surface, machinability productivity, and ultimately the part’s success. This requires LS Manufacturing’s huge experience in 5-axis machining.
3. Full-Process Quality Control System:
This includes on-machine measurement and final precision inspection on a coordinate measuring machine (CMM). The service provider must be capable of providing dependable inspection data reports, verify all critical dimensions, and ensure parts 100% meet design intent.
4. Efficient Technical Support and Response:
Capability to deliver timely response to technical questions and improve process solutions during trial production or production is an essential indicator of a reliable partner.
Choosing a 5-axis machining provider is a comprehensive decision. LS Manufacturing’s 5-axis machining is aided by sophisticated programming, skilled processes, diligent testing, and timely response, ensuring customers are not only provided with products but also with reliability and peace of mind.
What key information do I need to provide for an accurate five-axis machining quote?
A correct 5-axis machining price is not an estimate; it depends on the service provider’s thorough knowledge of your project specifications. Giving proper and full technical and commercial details is the base for an effective, transparent, and economical solution. To enable LS Manufacturing to rapidly develop the best solution for you, please prepare the following essential information.
1. Complete Design Data:
You need to provide an usable 3D model (e.g., STEP file) and engineering drawings in detailed 2D format. The drawings should display clearly all the important dimensions, geometric tolerancing (e.g., positional tolerance, profile tolerance), and surface finish, having a direct impact on the machining operation and inspection strategy.
2. Material Specifications:
Clearly identify the material name, grade, size, and heat treatment (i.e., pre-hardened, annealed). This is necessary in order to accurately compute tool wear, machining time, and cutting parameters.
3. Post-Processing and Surface finishing Requirements:
Specify whether and what type of post-processing is required, such as anodizing, sandblasting, electroplating, or painting. These ancillary processes will influence total manufacturing costs and lead times.
4. Project Volume and Long-Term Requirements:
Inform us of initial first-article order size, forecast to annual, and long-term forecast. This enables LS Manufacturing to schedule the most cost-efficient production plan (e.g., optimize fixtures and batch scheduling) from a total cost of ownership perspective, thereby achieving economies of scale.
Adding this extensive, critical information will not only guarantee that you receive a precise, open 5-axis machining price quote, but allow an experienced team like LS Manufacturing to come in at the beginning of the project to identify areas of concern, improve manufacturability, and ultimately provide a truly optimized, all-inclusive manufacturing cost solution.
How to Address the Challenges of Machining Deformation and Out-of-Tolerance in Aviation-Grade Titanium Alloy Structural Parts?
Thin-walled aviation-grade titanium alloy structural parts are a traditional issue for high-end aerospace CNC machining. A serious issue confronted our customer when they were designing a new model.
1. Customer Dilemma:
Customer’s existing multi-axis, sequential machining process resulted in uncontrollable deformation of thin-walled titanium alloy parts with low rigidity during repeated clamping and cutting and resulted in significant tolerance deviation in critical mounting holes. Not only did this result in high scrap rates, but also took weeks of manufacturing time to design new models of machines for R&D.
2. LS Manufacturing’s Solution:
Faced with this challenging and complex part machining situation, the LS Manufacturing engineering team was squarely involved:
- First, we used a five-axis high-speed machine tool and created special tooling intended to tailored stress-relieving principles, enabling “one-clamp, complete machining” of the piece.
- Above all, from our extensive experience with difficult-to-cut materials, we developed specialized cutting tools, cutting parameters, and a stacked toolpath strategy for titanium alloys. This precisely controlled the cutting forces and heat, effectively minimizing machining distortion.
3. Results and Value:
Through the implementation of this solution, the structural component’s critical position tolerances of this titanium alloy were 100% realized, eliminating total scrap by deformation. LS Manufacturing’s 5-axis machining solution also minimized previously slow, multi-step processes into one, decreasing overall lead time by up to 60%. Not only did this conserve the customer significant cost, but more importantly, bought invaluable time for the successful launch of their new aircraft program, positioning them in the market.
The successful success of this aerospace CNC machining challenge not only showcases LS Manufacturing’s excellent 5-axis machining capabilities for machining hard and complex parts, but also showcases our problem-solving and analytical engineering capabilities at the root of the process.
What are the unique advantages of five-axis machining in improving part performance and reliability?
The advantage of 5-axis machining goes far beyond that of simply “finishing” a part. Its deeper strategic benefit is its proactive ability of “enabling” a part’s end performance and reliability. Through achieving near-compromise-free machining, it optimizes the natural quality of a part at a physical level, enhancing its performance under demanding operating conditions in a direct way. Its unique strength appears largely in two aspects:
1. Achieving optimal fluid dynamic surfaces:
For critical components such as turbines and impellers, their aerohydraulic or hydraulic efficiency depends entirely on smooth, continuous, and perfect complex surfaces. 5-axis machining enables the tool to maintain perpendicularity consistently with the surface normal at the optimum tool angle, so the finished surface is a continuous high-finish finish, significantly improving airflow efficiency while reducing energy consumption.
2. Maintaining Complete Metal Fiber Flow Lines:
During machining of structural components with high bearing loads, conventional milling can disrupt the metal grain (fiber) flow, which can result in microscopic imperfections that can act as fatigue crack sources. 5-axis machining realigns the tool path such that the cutting direction will be coincident with the applied force of the part, resulting in uninterrupted and complete metal fiber flow lines, greatly enhancing the part’s fatigue strength and long-term dependability.
3. Improving Structural Integrity and Consistency:
By eliminating stress deformation and datum errors caused by repeated clampings, parts can better maintain their intended designed geometry and dimensions. Such inherent consistency is required for the sake of stable operation in harsh environments such as vibration and high temperature.
5-axis machining is more than mere manufacturing. It is a process that maximizes the microstructure and macromorphology of parts via carefully controlled material removal. It is therefore a enabling technology that cannot be dispensed with for enhancing the reliability and performance of core components.
Is your design imagination limited by traditional manufacturing processes?
In designing products, have you ever been forced to compromise the aesthetics and performance of your design due to “machinability concerns”? Traditional production techniques are too frequently the hidden straitjacket on design creativity, forcing engineers to choose between dreams and reality.
5-axis machining technology was created to break this straitjacket. With its unmatched machining versatility, it liberates your design in three dimensions:
1. Achieve extreme lightweighting and functional integration:
You can apply complex biomimetic structures from topology optimization with certainty, merging multiple standalone parts into a single stiff element. Apart from reducing weight, it eliminates joints, significantly increasing product stiffness and reliability.
2. Unlock complex internal structures and flow paths:
From conformal cooling channels within an engine to the integrally molded internal flow paths of a medical device, 5-axis machining enables the tool to precisely reach out to places inaccessible by conventional methods, enabling optimized internal functional designs from drawing to reality.
3. Embrace true performance-driven design:
Designers can focus entirely on performance objectives such as aerodynamic efficiency, stress distribution, or thermal control and cross their hearts that optimum geometry will be taken into account, without worrying too much about “how to make.” Production processes then follow and aid visionary designs.
We really welcome you to collaborate with LS Manufacturing’s engineering team at junctures of the concept phase. Let us explore how to bring your most ambitious concepts into market-leading competitive advantage using higher 5-axis technology.
FAQs
1. What is the difference between 5-axis simultaneous machining and 3+2-axis positioning machining?
5-axis simultaneous machining is continuous, synchronized movement of all five axes when cutting, and it is well suited to finish complex curved geometries like aerospace impellers. 3+2-axis machining is tilting the tool to a constant angle first before machining in three axes. While more effective, it is not able to handle complex, infinitely changing surfaces. LS Manufacturing offers both machining capacity. Our engineers will recommend the most economical technical solution based on your part geometry, accuracy standards, and cost tolerance.
2. What level of precision can LS Manufacturing achieve with five-axis machining?
LS Manufacturing utilizes advanced 5-axis machine tools imported from Germany and Japan, coupled with an environment of constant temperature workshop and rigorous processes. This allows us to achieve positioning tolerances up to ±0.025mm, with critical feature tolerances maintained at ±0.01mm. To ensure quality, we utilize coordinate measuring machines and laser scanners in stringent inspection of first- and batch-production parts to confirm that the dimensional and geometric tolerances of each complex part precisely correspond to design specification and meet the relevant stringent standards in markets like aerospace and medical devices.
3. Is five-axis machining suitable for low-volume prototyping?
Excellent. The “single clamping” of 5-axis machining is particularly advantageous in the prototyping process: it avoids repeated clamping faults, ensuring sample accuracy, and allows prompt production of complete parts in one setup, significantly minimizing R&D and verification cycles. LS Manufacturing produces small-batch prototypes through mass production. Our elastic production system provides strong support for your creative R&D.
4. How long does it take to receive a detailed quote after submitting drawings?
After receiving your inquiry, which includes a complete 3D model, 2D drawings (with critical tolerances noted), material specifications, and estimated quantities, LS Manufacturing’s team of process experts will conduct a detailed analysis and typically provide a transparent quote within 1-2 business days, including process routing, cost breakdown, and delivery estimates. LS Manufacturing is committed to responsiveness, so your project launch goes smoothly and you realize market opportunity.
Conclusion
5-axis simultaneous machining with its pioneering “single-setup” complete machining ability has actually become a pillar technology for the solution of the manufacturing problems of complex, high-precision parts. It is not just an instrument of significant leverage to achieve the productivity of production and quality of the product, but also a crucial tactic to promote the innovation of the product and optimize total manufacturing cost.
Partnering with LS Manufacturing means that your business has access to a higher-level manufacturing partner with cutting-edge equipment, deep industry knowledge, and a focus on customer success.
Don’t be prevented by traditional manufacturing methods from envisioning! Contact LS Manufacturing and send us your toughest part drawings or 3D models at LS Manufacturing’s group of 5-axis machining experts. You’ll receive a qualified feasibility report and a highly competitive 5-axis machining estimate. Let us transform your most intricate new ideas into best-in-class products with precision and efficiency together!
