Though the current period of high-precision and intricate designs in production, 5-axis CNC technology has evolved from its status as an extremely advanced capability to the prime force behind the challenge presented by high-end manufacturing. It has capabilities beyond those of typical three-axis machine tools.
Through synchronized multi-dimensional motion, it is capable of effectively performing machining of complicated shapes in one pass. This makes it essential for both prototyping and mass production in aerospace, precision medical devices, and auto parts.
Faced with increasing demands for complexity and accuracy of components, how do manufacturers overcome manufacturing challenges? This is where the advantages of five-axis CNC machine tools take center stage. As a company veteran, LS Manufacturing, through its cutting-edge five-axis machining capacity, precisely helps customers overcome challenges of taking the idea from concept to product. To save you time, here’s a quick overview of the core conclusions.
5-Axis CNC Core Value Quick Reference
| Dimensions | Role in Prototyping | Role in Manufacturing |
| Core Capabilities | Enable one-shot molding of complex geometries | Deliver consistency and reliability in production at high volumes |
| Efficiency Improvement | Eliminate iteration cycles and accelerate product validation | Eliminate setups and scale up production by orders of magnitude |
| Precision and Quality | Make high-precision prototypes suitable for functional testing | Deliver ultra-high standards and interchangeability per part |
| Cost Minimization | Reduce risk of late-stage design change through precise prototyping | Eliminate tooling, reduce unit cost, and minimize manual handling |
| Flexibility in Use | React quickly to design change and transition smoothly into production | Able to do flexible manufacturing from low-volume to batch to mass production |
5-axis CNC machining technology from the concept phase of creativity to the product execution stage. Not only is it the “unlocking tool” that makes it possible to create complex designs in prototyping, but the “core promise” of achieving efficiency, accuracy, and cost reduction in manufacturing.
For today’s business focused on innovation, quality, and speed, capitalizing on 5-axis machining capability is definitely the key to business success.
Why Trust This Guide? Practical Experience from LS Manufacturing Experts
The conclusions reached here are empirical, not theoretical; they’re gleaned from decades of real-world experience in the 5-axis CNC industry at LS Manufacturing. Our extensive machining history includes tough markets like aerospace, precision medical, and automotive, and we’ve machined successfully hundreds of difficult parts from difficult-to-machine titanium alloys through to complex curved impellers.
LS Manufacturing’s expert specialists in the past supported one customer with one-setup completion on a complex structural component that was up to now finished with multiple fixtures and three setups.
The optimization not only reduced the lead time by 40% but also the product yield went up to more than 99.8%, addressing the customer’s major concerns of slow prototype qualification and low-volume production. This real-world project experience ensures that whatever we see we test and implement.

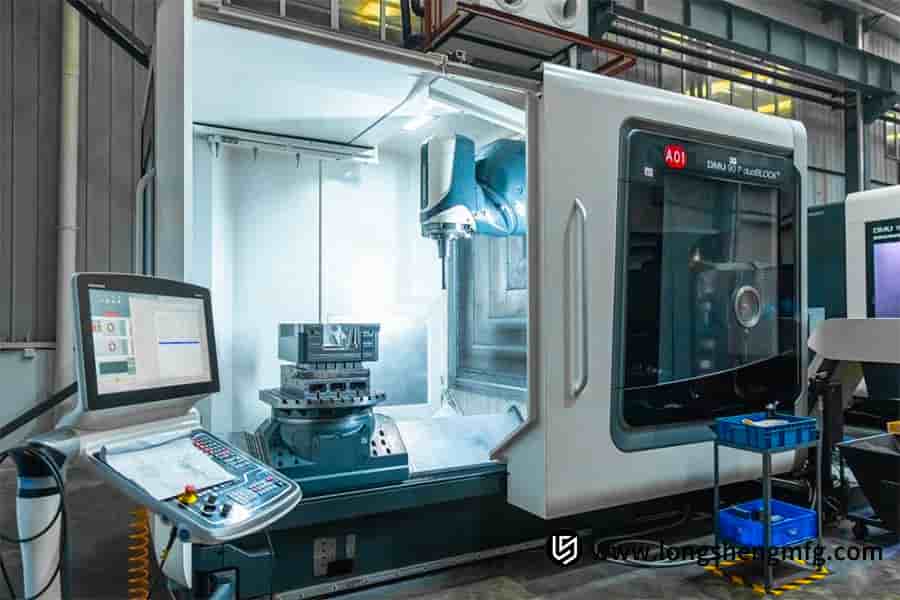

What is a five-axis CNC machine tool and its core operating principles?
In this era of manufacturing when the highest degree of precision and efficiency is claimed, five-axis CNC machinery has also emerged as a key factor in combating tough machining operations. Now what exactly is a five-axis CNC machine tool and how does it work? A five-axis CNC machine tool is merely a machining center with provision for performing simultaneous coordinated motion on five axes of freedom.

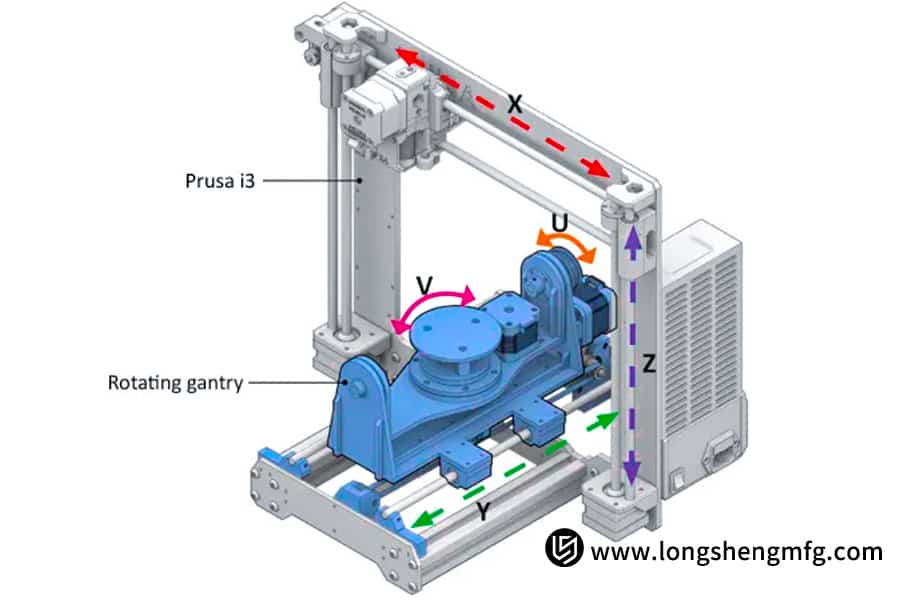

In addition to the traditional linear movement in the X, Y, and Z directions, two rotary axes (commonly referred to as the A, B, or C axes) are employed in it to locate the workpiece or tool in space by rotating and inclining it. The main advantage of this layout is to enable CNC machining of intricate geometry. Its operation can be summarized in the following words:
1. Multi-axis linkage:
With precise, simultaneous interpolation of the five axes of motion, the cutting tool always approaches the workpiece surface at the optimum angle. This eliminates workholding interference and makes it possible to mill hard-to-reach surfaces, deep cavities, inclined holes, and other features in one pass.
2. Improved precision and efficiency:
This technology is what we apply at LS Manufacturing to provide single-step clamping and shaping of workpieces. This really eliminates cumulative error due to repeated clampings, significantly improves overall part accuracy, and conserves time with respect to repeated positioning.
Just imagine, whether aerospace impellers or orthopedic bone implants—these difficult CNC machining operations of intricate geometry are precisely where five-axis technology is utilized.

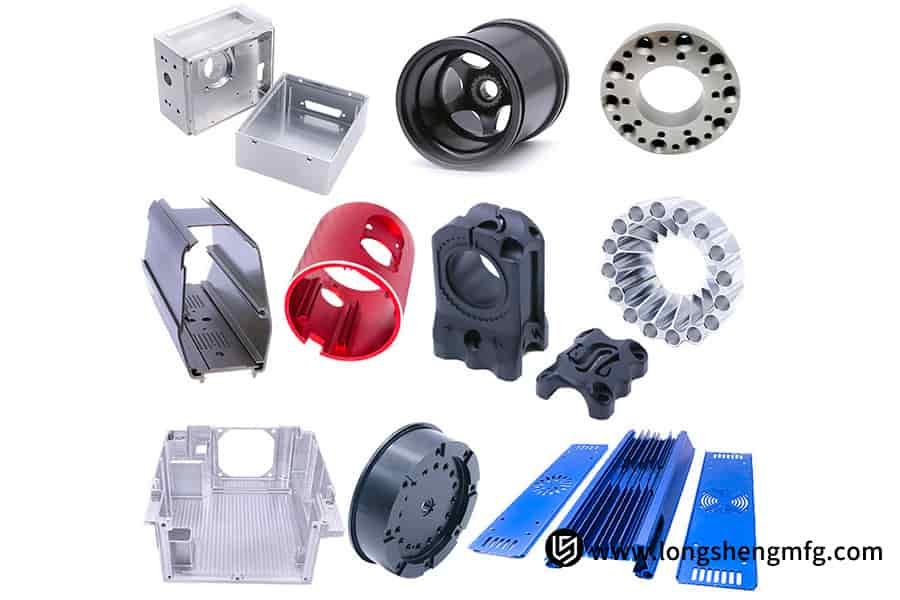

Why is five-axis CNC machining more suitable than three-axis for complex parts?
When it comes to prototypes or products with a high level of curves, deep cavities, or inclined features, a comparison of five-axis and 3-axis CNC machines becomes the top item. While three-axis machines are prevalent, they lack when machining complex parts. Specifically, advantages of five-axis machines are:
1. Revolutionary Reduction in Setups:
3-axis machining of complex workpieces often requires sequential re-clamping to expose multiple machining surfaces, which is not only time intensive but also introduces repeatability inaccuracy. 5-axis technology, by enabling multi-coordinate geometry between the tool and workpiece, can often perform most or even all of the machining operations in a single setup, effectively improving accuracy and repeatability.
2. Achieve Greater Geometric Freedom:
For workpieces having curved surfaces, such as impellers, turbines, and medical implants, three-axis vertical machining might cause tool interference or unavailability. Five-axis machines, however, offer constant tool deflection to machine complex parts at optimal angles, enabling impossible three-axis processes.
3. Improved Overall Efficiency and Surface Quality:
We are using five-axis technology at LS Manufacturing to machine complex structural components that previously required three three-axis machines with multiple setups into one machine for non-stop machining. Not only is it more than 40% faster in terms of production cycle time, but it also eliminates the potential for scratches with multiple setups and allows the use of shorter tools to get a smoother surface finish.
5-axis CNC machines and 3-axis CNC machines differ most significantly in their additional capabilities and efficiency. For tasks with high precision requirements, efficiency, and geometric complexity requirements, 5-axis machines are the way to go.
How does five-axis CNC prototyping accelerate product development cycles?
With a very competitive market, 5-axis CNC prototyping with its higher efficiency and accuracy is increasingly becoming a principal driving factor to accelerate product development further. This technology utilizes simultaneous multi-axis machining to convert digital designs directly into high-fidelity physical prototypes, which offers a sound foundation for subsequent production. Specifically, its role in accelerating product development is encapsulated in the following three principal aspects:
1. Rapid design iteration and verification:
5-axis CNC prototyping facilitates CNC milling of intricate shapes in one fixture. This makes it possible for designers to create functional prototypes in days instead of weeks or months, facilitating quick testing, assessment, and adoption of design enhancements. For instance, Lumenium, through the implementation of cutting-edge manufacturing tactics, has effectively halved its design iteration cycle, dramatically increasing product optimization speed.
2. Reduced setups, improved accuracy, and reduced cumulative error:
5-axis technology reduces setup time by focusing processes, which removes the need for multiple setups’ datum transfer and improves the positional accuracy. In our activities at LS Manufacturing, we endeavor to leverage this advantage to guarantee prototypes are very similar to the finished product as far as dimensional and geometric accuracy is concerned, thereby reducing rework and project delay caused by precision variances.
3. Streamlining Processes and Shortening Overall Delivery Time:
5-axis CNC prototyping, in seamless integration with digital resources, enables a seamless shift from product design into production. This streamlined multi-axis machining capability combines intricate production processes, removing the drudgery steps of traditional manufacturing. Ultimately, it reduces the overall product development process by weeks to mere days, setting companies free from valuable time to market.
5-axis CNC prototyping effectively shortens product development cycles due to its rapid iteration, enhanced precision control, and process-optimized manufacturing. The technology is valuable strategically to organizations seeking to quickly validate designs, reduce development risk, and capitalize on market opportunities.
In which industries are 5-axis CNC machine tools most widely used?
5-axis CNC machine tools, with their multi-axis clamping and ability to perform complex machining in single setup, are the hub of new high-end manufacturing. Its five-axis CNC machining technology most suitably fits the critical needs of machining complex parts in most industries. Following are its three most common applications:
1. Aerospace:
Parts such as aircraft engine blades and aircraft structural parts possess extremely complex curved surfaces that call for extremely high precision and uniformity. 5-axis equipment, with multi-axis linkage, can provide precise control of 0.02mm tolerances in the blade root and crown areas.
It also machined structural components of large planes such as the C919/C929 that are made of titanium alloy and aluminum alloys with high efficiency, playing an important role in securing independent and controllable development of the aviation industry chain.
2. Medical Devices:
In medical device manufacturing with high precision, such as orthopedic implants (e.g., hip joints) and laparoscopic surgical instruments, five-axis machine tools allow direct programming from CT data to support precision milling of customized implants such as titanium alloy bone plates. They can provide surface finish as low as 0.3-0.4μm, with machining tolerance within ±0.02mm, well meeting ultra-high precision as well as biocompatibility requirements of medical devices.
3. Automotive Manufacturing:
For large-scale integrated die-casting parts (such as battery cases and rear floor panels) and light structural parts for new energy vehicles, five-axis machining centers use a combination of angular milling heads and rotary tables to undertake high-precision three-dimensional machining on aluminum alloy components with high efficiency. In one example, this technology successfully cut the weight of a battery pack frame by 18% and enhanced machining efficiency by nearly 50%.
From high-precision aerospace components to lifesaving medical implants to basic auto assemblies that enhance performance, 5-axis CNC machining technology, with its unparalleled versatility and precision, is today’s go-to solution for machining difficulty in complex parts.
LS Manufacturing possesses extensive cross-industry project experience, providing expert 5-axis solutions for any use.

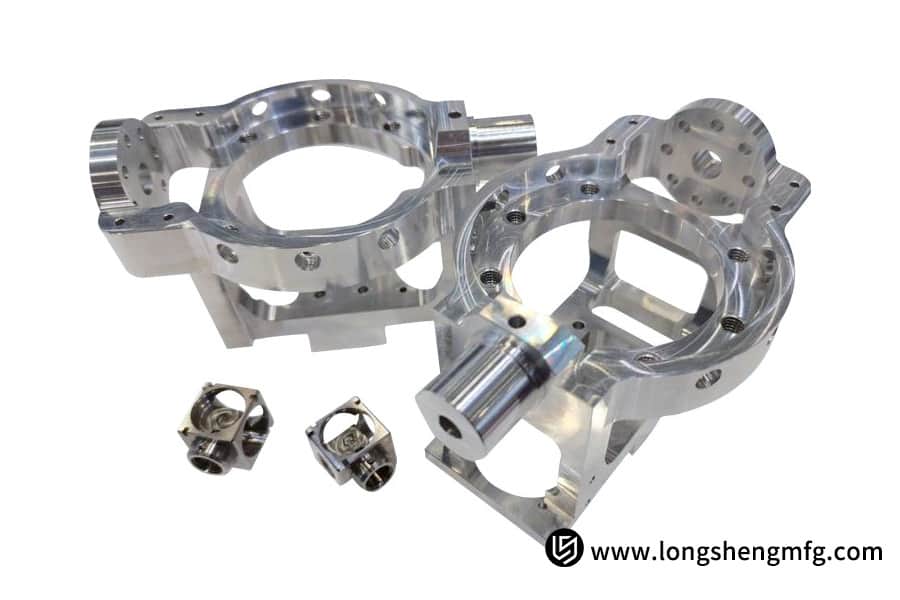

How can five-axis technology be used to process extremely complex geometries?
Extremely complex parts such as turbine blades, impellers, or surgical implants with recessed cavities and thin slots usually pose problems using standard machining methods. This is where five-axis CNC machine tools truly excel. Through the power of advanced technology, they transform even the most extreme concepts on the drawing board into practical reality. Mastering the art of CNC machining difficult geometries hinges on two basic building blocks:
1. Intelligent Programming and Dynamic Tool Axis Control:
For free-form complex surfaces, programming is no longer a path planning issue. We use advanced CAM software for simultaneous 5-axis programming so that the tool axis can be dynamically adjusted according to the surface normal. That is, when machining turbine blades or other free-form surfaces, the tool can always adopt the best cutting angle to avoid interference between the workpiece and shaft while keeping uniform surface quality, realizing CNC machining of complex geometry perfectly.
2. Tool Path Optimization and Collision Avoidance:
In LS Manufacturing’s design process, our skilled designers precisely compute tool center point path and axis vectors to design effective, collision-free machining paths. For example, for milling a solid impeller, the system automatically calculates the tool path to travel through narrow flow passages without collision to effectively machine all the profiles of the blades simultaneously. This significantly reduces work time while ensuring structural integrity.
Leveraging our extensive experience in this area, LS Manufacturing has been able to solve the most complex machining problems for numerous customers. If you are facing the same manufacturing constraints, please submit your design and we will provide you with a professional solution.
To operate a five-axis CNC machine tool to machine extremely complex components requires more than next-generation equipment; it requires deep process expertise and programming skills.
How does 5-axis CNC machining reduce overall production costs?
The majority of manufacturing companies face efficiency limitations and cost challenges. Five-axis CNC machine tools offer the advantage of being able to manage and reduce total production costs from over one dimension using intelligent machining methods.
Multi-axis machine services are economical compared to conventional machinery in providing significant economic benefits to companies through process consolidation and increasing precision. Specifically, five-axis technology provides cost savings through three significant areas:
| Cost Reduction Dimensions | Traditional multiple 3-axis machine | 5-axis CNC machining solutions |
| Clamping and Positioning | Multiple clamping, fixed fixtures, errors accumulate | Single clamping, universal fixtures, same precision all the time |
| Tooling and Consumables | High tool wear rates, heavy usage on special tools | Tool life is extended, versatility is excellent, and costs are lower |
| Production Cycle | Process distribution, long cycle times, slow delivery | Process concentration, significantly lowered cycle times |
| Quality and Scrap | Repeated positioning creates high scrap rates | High-precision, one-shot molding, significantly improved yield ratios |
| Management and Space | Multiple equipment, high labor requirements, and expansive floor space | Bottlenecked processes, high automation, and reduced labor and space |
LS Manufacturing’s history of customers shows that by utilizing 5-axis solutions, companies have been able to achieve nearly 40% efficiency gains in machining and significant declines in overall costs. If you are interested in systematically reducing the cost of manufacture and enhancing competitiveness, our multi-axis machining is the ideal solution.
Five-axis CNC machine tool investment is not just an issue of increasing the capacity for machining; it’s an outright cost-saving strategy.
LS Manufacturing: 5-Axis Customization Solve Turbine Blade Manufacturing Challenges
In the realm of high-performance power gear, producing complex parts, such as turbine blades, normally challenges manufacturers. A leading aerospace technology company was faced with a challenge: its new turbine blade design had complex curved surfaces.
The traditional three-axis machining not only was unable to guarantee surface accuracy, but also impressed the tool marks due to repeated clamping processes. Moreover, the production cycle lasted for up to four weeks, slowing down product development a lot.
1. Customer Dilemma:
- There was massive distortion in the blade, and a three-axis machine tool could not machine it fully.
- Repeatable positioning errors were generated due to repeated clampings, and the accuracy was unable to meet aerodynamic requirements.
- The cutting time per part was too long to be within the tight prototype qualification time limit.
2. LS Manufacturing’s Solution:
LS Manufacturing designed an industrial five-axis CNC machining solution for this customer:
- With the use of a high-speed five-axis CNC machine tool, all curved surfaces were machined in a single fixture of the blade blank.
- With professional CAM software to generate optimized tool paths, ideal cutting conditions were achieved.
- Specific cutting parameters and cooling strategies were optimized to follow the material behavior of high-temperature alloys.
3. Results and Value:
- Cutting cycle time reduced by 40% from four to two and a half weeks.
- Total cost lowered by 25% due to reduced clamping times and improved utilization of material.
- It improved product performance significantly.The surface accuracy of the blade fulfilled full design requirements.
- Installed a long-term relationship. The customer tasked us with making the complete turbine blade prototype.
This example demonstrates how advanced five-axis CNC machining capacity addresses challenging part machining issues.
No matter the manufacturing challenge in your project, LS Manufacturing has a proven solution. Ask us for your design schematics and let us engineer the same jump in value for your company.
How does multi-axis machining improve production flexibility and quality?
In modern manufacturing, with the dual pressure of accelerating product iteration and expanding demand for customization, multi-axis machining services, with their extraordinary flexibility and stability, are ever more becoming a driving force behind companies’ competitiveness. It’s not just a piece of equipment upgrade; it’s a revolution in production philosophy. Specifically, multi-axis machining services are valuable in the following respects:
1. Superior Production Flexibility:
Seizing five-axis CNC machine tool advantages, LS Manufacturing can respond to small-lot, high-mix production orders with quick speed. From material substitution to design change, smooth transition can be achieved by simply adjusting the machining program without the necessity for expensive specialized tools. Being such an agile production capacity, customers can respond to market changes at lower cost and bring new products to market faster.
2. Revolutionary Quality Improvement;
The nature of multi-axis machining service is “one-time clamping, complete machining.” It prevents datum conversion mistakes caused by multiple clampings, basically ensuring part geometric accuracy and part dimensional consistency. We implement this technology in LS Manufacturing to make sure overall precision of complex workpieces within ±0.02mm, together with higher surface quality.
3. Process Simplification and Efficiency Optimization:
Parts previously required to be processed on many machines and several operations are now being continuously performed on one machine by multi-axis machining services. Besides saving significantly on the manufacturing process and working-in-process inventory, it also saves on risks of quality due to process changeovers, and cost of changeover management, ultimately resulting in improved quality and efficiency.
5-axis CNC machine tools are fully justified using multi-axis machining services. 5-axis CNC machine tools improve quality consistency with the use of flexible manufacturing and combined processes, which allow firms to react fast to market changes.
What are the future development trends of five-axis CNC machine tools?
With the evolution of the manufacturing industry towards high precision and high efficiency, five-axis CNC machine tools also undergo revolutionary upgrading. In the coming future, their evolution will aggressively integrate intelligence, energy saving, and ultra-high precision, further cementing their pivotal position in CNC machining of complex shapes. Below are three major trends:
1. AI and Digital Twins Drive Intelligent Upgrades:
- Intelligent Programming and Optimization: Large AI-based models enable end-to-end automatic programming directly from 3D models to machine codes with significantly reduced human intervention.
- Digital Twin Platform: Virtual machine tools carry out micron-level simulation of machining accuracy through 3D motion simulation, collision and interference detection, and thermal deformation analysis, keeping actual debugging time and material wastage to the minimum.
2. Continuous Breakthroughs in Machining Capabilities:
- High-Speed, High-Accuracy Trajectory Planning: Toolpath optimization and dynamic control improve machining efficiency and surface finish for freeform surfaces such as impellers and aircraft structural components.
- Combined Machining Technology: Merging technology such as laser cladding and 3D printing enables a single machine to perform several machining operations, reducing setup time.
3. Green, Sustainable, and Promoting Automation:
- Energy Optimization: Dynamically optimize energy consumption through AI predictive models to reduce electricity consumption.
- Full-Process Automation: Combining robotic loading and autonomous operation and maintenance increases the mass implementation of “dark factories” and shortens the return on investment (ROI).
In the coming years, five-axis CNC machine tools will be at the center of premium manufacturing with smart and adaptive growth. LS Manufacturing has already moved forward in adopting AI process optimization and digital twin technologies to allow customers to derive competitive advantage.
If you wish to further map out your technology upgrade plan, please do not hesitate to reach out to us for customized solutions!
How to Choose the Right Five-Axis Machining Service Provider?
Choosing a reputable multi-axis machining solution provider is the success ingredient of your project. When you choose a supplier, don’t just consider the equipment layout but also the technical skill and service of the supplier to verify they provide expert service for your five-axis CNC machining solution. In making your choice, we recommend the following four factors should be considered:
1. Core Technical Capabilities Assessment:
Highlight the supplier’s experience with CAM programming using newer technology and process optimization tools. A business multi-axis machining service provider will be able to provide total toolpath planning and optimization of cutting parameters for complex parts like impellers and turbines on which effective and precise machining hinges.
2. Relevant Industry Experience and Case Studies:
Verify the equipment configuration and quality system of the supplier. For example, LS Manufacturing has extensive history in five-axis CNC machining for aerospace with successful replication of the manufacturing challenge of complex pieces like turbine blades. Such history ensures your first-time success rate for your project.
3. Equipment Configuration and Quality System:
Check the 5-axis equipment performance of the supplier, accuracy maintenance, and testing capability. Top-class multi-axis machining service providers usually have access to a set of five-axis machine tools and an entire set of precision control process, with the capability of sustaining stable machining tolerances within ±0.02mm.
4. Technical Support and Customer Service:
Evaluate the technical response rate and analytical capability of the supplier. A reliable partner should provide technical assistance for the whole process, from design optimization to post-processing, as LS Manufacturing does to customers by allotting them expert project managers to ensure timely response and good communication.
It is a meticulous decision to choose the right multi-axis machining service provider. LS Manufacturing, with its extensive technical expertise, interdisciplinary project experience, state-of-the-art fleet of machinery, and comprehensive service network, has become the go-to partner of many high-end manufacturing companies.
FAQs
1. Is five-axis CNC machining suitable for small-batch production?
Yes. Five-axis machining is not only suitable but also highly advantageous for prototype and low-volume production. It’s highly adaptable and could be readily accommodated for design modifications with minimal program revisions, which negates high fixture investment and longer setups in conventional machining. LS Manufacturing reduces toolpaths and machining strategy to deliver quality with cost-efficiently controlled cost so customers can have a smooth process from prototype to low-volume production.
2. What is the difference in accuracy between 5-axis and three-axis machine tools?
The gap is wide. Five-axis machines possess 20-30% greater overall accuracy than three-axis machines in machining complex parts. Their greatest advantage lies in one-clamping of the workpiece in one operation by multi-axis linkage, effectively cutting off successive errors caused by successive clampings and datum conversions. LS Manufacturing, with superior machinery and strict high-quality control system, makes each product consistently exceed or meet the industry’s high tolerance requirements.
3. Is five-axis machining service expensive?
Although the first investment in five-axis machines is very expensive, its overall cost-effectiveness is highly competitive on long-term manufacturing. Five-axis machining achieves cost benefits on several processes by integrating processes, cutting setups, reducing scrap rates, and highly reducing production cycles. LS Manufacturing helps customers achieve a rapid return on investment (ROI) to establish that five-axis technology is an intelligent investment that can reduce total manufacturing cost.
4. How to ensure consistent quality in five-axis machining?
Consistent quality maintenance requires advanced systems technology and strict management processes. LS Manufacturing employs on-line measurement systems and in-process real-time monitoring to track data and make smart adjustments for variation in the cutting process, compensating automatically micron-sized variation. We also employ full-process QC from raw material receipt through shipping, keeping dimension integrity and performance consistency with every batch of parts.
Conclusion
5-axis CNC technology has become the answer of choice to the issues of current manufacturing. It has been found unsurpassed utility in mass production as well as prototyping. Its precise and fast machining capability precisely addresses the challenges of producing intricate parts, lowering product development cycles and overall cost substantially.
With its deep technical expertise and rich industry background, LS Manufacturing has provided high-quality five-axis machining services for numerous customers, enabling them to achieve market competitiveness and obtain business development and technological innovation.
In order to pursue an effective 5-axis machining partner, contact LS Manufacturing senior engineers today. We provide free technical consultation and project evaluation, and tailor the most cost-effective solution to your needs.
