What are the parts of a TIG welding machine?

A sophisticated system for creating perfect welds
You must have seen the TIG welds known as “fish scale welds” that are neat and beautiful like works of art. Behind this amazing perfection, there is no accident or just the feel of the welder – it is the result of a set of surgical precision systems working together. Every stable and pure arc ignition, every drop of welding wire that falls accurately into the molten pool, and every perfect formation and solidification of the molten pool, all rely on the key components inside and around the TIG welder that perform their respective functions.

It is a great underestimation of its capabilities to regard the TIG welder as just an “electric box” that provides current. It is more like a sophisticated command center and energy delivery system, and the welder is the ultimate “performer”. Understanding the role and function of each component in this system and how they are connected and coordinated with each other is the first step to unveil the mystery of high-quality TIG welding, and it is also the only way to move from amateur “knowing” how to operate to professional “mastering” the art of TIG welding.

So, what kind of core components together build this set of precise systems for creating perfect welds? Let’s take a closer look at the essential components of a standard TIG welding machine and its surroundings.

Summary of TIG welding machine core components

This guide will take you through the various parts of a TIG welder and their functions. We will then use a TIG torch parts diagram to take you deep into the inner workings of this ‘scalpel’ and use a real-life example to show how important it is to choose the right parts.

Here’s What You’ll Learn:

• The four core components of a complete TIG welding system and how they work together
• The key role of the power supply (AC/DC): Why it is the brain and heart of the system, and the applicable scenarios of different current modes (AC/DC).
• How the inert gas system (argon) forms a protective barrier: the precise coordination of gas cylinders, pressure reducers, flow meters and gas pipes.
• Welding gun and workpiece clamp: the mystery of the starting point and end point of the circuit, and in-depth disassembly of the internal structure of the TIG welding gun (tungsten electrode, chuck, chuck body, porcelain nozzle, back cap).
• The importance of dynamic current control (foot pedal/control switch): like the “accelerator pedal” of welding, to achieve fine heat input.
• Practical case analysis: How to solve the welding problems (deformation, oxidation) of medical-grade stainless steel shells by optimizing components (such as upgrading gas lenses).
• Authoritative answers to common questions: TIG core steps, advantages and disadvantages, and key component differences with MIG equipment.

Now, let us begin to gain a deeper understanding and grasp the core structure and operation essence of TIG welding equipment.

Why trust this guide? Voice from LS welding frontline

I am a certified welding engineer at LS. This guide is not just talk, but the true knowledge we have tempered with countless challenges with our welding guns. Let me tell you why it is trustworthy:

1. We are working on the hard stuff:

(1) We have welded 0.8mm aviation titanium tubes as thin as paper, and zero defects are the only option. That is the ultimate test of gas protection and parameter accuracy. If you are not careful, it will burn through and become scrapped. The tips for thin-walled active metal welding in this guide were earned with real money and countless experiments.

(2) We have built mirror-polished 316L medical housings, which requires the weld to be seamlessly integrated with the parent material. This forces us to delve into the current waveform, wire feeding technique, gas purity and coverage to ensure that the original state of the weld is almost perfect. Those details of stainless steel welding are the essence forced out by the strict standards of customers.

2. We are drilling into the “soul” details:

(1) 2% lanthanum tungsten electrode vs. cerium tungsten electrode? The manual only writes the composition. When we were rushing to finish aluminum parts late at night, we had a real experience: the arc of cerium tungsten electrode would drift after a long time, and the tip would wear out quickly; lanthanum tungsten electrode makes the arc more stable and more “obedient”, especially the arc starting and closing, which directly determines the consistency of the weld. This difference is found through welding and comparison.
(2) How critical is the “gas lens” to aluminum welding? Without it or using a poor quality one, it is normal for the weld to be black and porous. With a matching one, argon gas is like a precisely formed “transparent protective cover”. When welding aluminum, the weld is silvery and smooth, and there are no defects when inspected. This guide emphasizes it because we know that small parts can lead to big success or failure.

3. We only recognize “zero defects”:

(1) “Qualified” is not our goal. Every parameter, every key point, and every consideration of accessory selection in this guide is derived from our obsessive pursuit of “perfect welds“. It condenses our efforts to solve real industrial problems day after day at workstations, under microscopes, and in front of flaw detectors. This is not a repetition of theory, but the essence of the process tempered by actual combat, which can help you avoid the pitfalls we have stepped on and reach the LS standard.

So, believe it:
Because every word here carries the temperature of welding sparks and carries our almost harsh understanding of welding. It comes from the problems we have solved and continue to solve. This is not empty talk, but a practical summary of the pursuit of perfection under the welding gun. Pick it up, and you will get the key to the core welding process of LS.

What are the four main components of a TIG welding system?

A complete TIG welding system consists of four parts that work together. The following table provides a quick overview of these four components:

1. Power supply – the “brain and heart” of the system

• What does it do? This is the main unit of the welding machine. It converts the electricity from the wall into a controllable current (direct current DC or alternating current AC) for welding. It is also the main control console, allowing you to set key parameters such as the current size and type.
• Key points: Direct current (DC) is used to weld common metals such as steel, stainless steel, copper, and titanium; alternating current (AC) is specifically used to deal with metals such as aluminum and magnesium that have “hard skin” (oxide film) on the surface. AC can clean up the “hard skin”.

2. Inert gas system – the “protective cover” of the weld

• What does it include? It is mainly a large cylinder filled with high-purity argon gas, a gas pressure regulating valve with a flow meter, and a gas supply pipe.
• What does it do? Argon gas is sprayed out from the nozzle of the welding torch, forming an invisible “protective cover” around the tungsten electrode (the small needle in the welding gun that does not melt) and the molten metal. This cover keeps the air (mainly oxygen and nitrogen) out to prevent the weld from rusting, getting dirty, and having bubbles. This is the key to a clean, shiny weld!

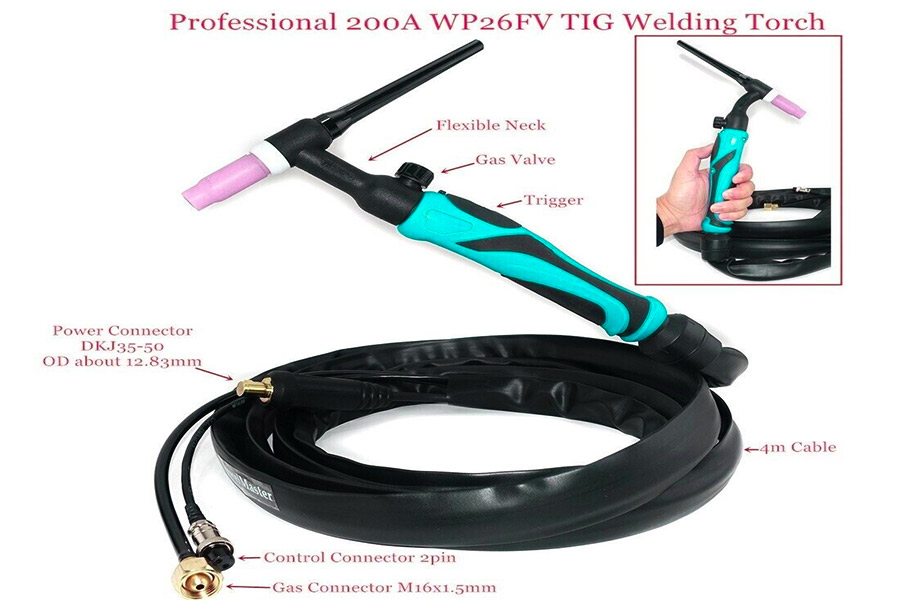

3. Welding torch and workpiece clamp – the “starting point and end point” of the current

• Welding torch : It is like a “pen” in the hands of the welder, thin and long. The current and shielding gas come out from here, guiding the welding arc. The welder uses it to operate precisely.
• Workpiece clamp (ground wire clamp): This clamp is firmly clamped on the workpiece to be welded. The current comes out of the welding torch, passes through the workpiece, and then flows back to the welding machine through this clamp, forming a complete current loop. Only when the clamp is clamped firmly and the contact surface is clean, the current can flow smoothly and the welding can be stable.

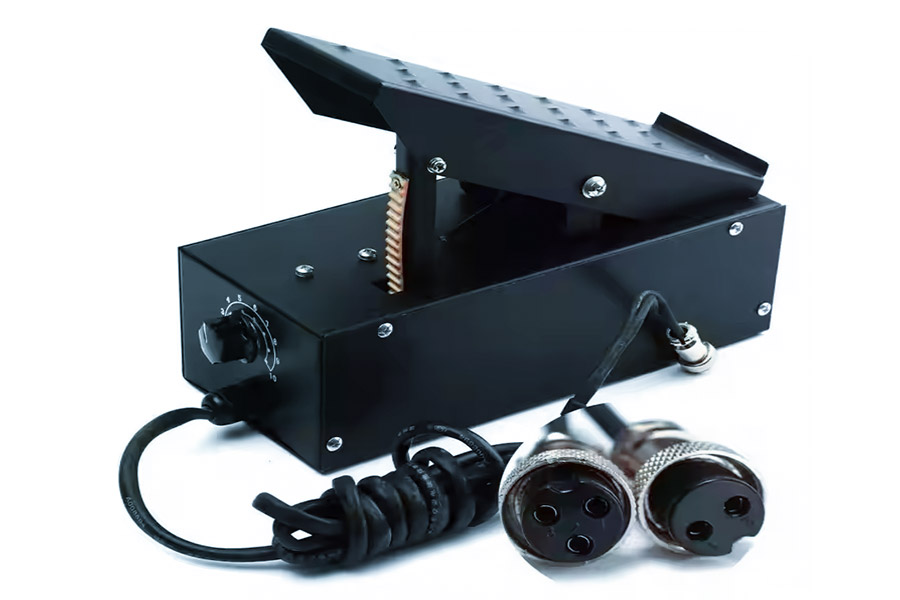

4. Current controller – the “accelerator pedal” of welding

• What does it look like? Usually a pedal that is stepped on by the foot, or a switch/knob installed on the handle of the welding torch and controlled by fingers.
• What does it do? It allows welders to adjust the current at any time during the welding process, just like stepping on the accelerator of a car:

1. Light start: Press or step on it lightly, the current is small, it is easy to ignite the arc, and it will not damage the workpiece.
2. Refueling on the way: When you need to weld deeper or faster, increase the current (deeper).
3. Smooth ending: Slowly reduce the current (release the point) at the end of welding, let the molten pool solidify slowly, and avoid leaving pits or cracks.

• With it, welders can control the heat of welding very finely.

TIG welding system is not a single device, but an organic whole composed of four core subsystems: power supply (brain and heart), inert gas system (protective barrier), welding torch and workpiece clamp (starting point and end point of the circuit), and current controller (accelerator pedal). Each part plays a unique and indispensable role:

• Power supply provides a precisely controllable energy foundation;
• Inert gas system ensures that the welding area is free from air pollution and is the guardian of high-quality welds;
• Welding gun and workpiece clamp build a complete current loop, and the welding gun is the precise “brushstroke” for the welder to control the arc;
• Current controller gives the welder the delicate ability to control heat input in real time.

Understanding the functions, interactions and effects of these four components on the final welding quality is the basis for mastering TIG welding technology, selecting and configuring equipment, and effectively maintaining and troubleshooting equipment. Only when these four “gears” are perfectly meshed and work together can the full potential of TIG welding in terms of precision, cleanliness and high quality be released. Ignoring any link may lead to welding defects, inefficiency and even operation failure. Therefore, successful TIG welding begins with a deep understanding of this complete system and its internal connections.

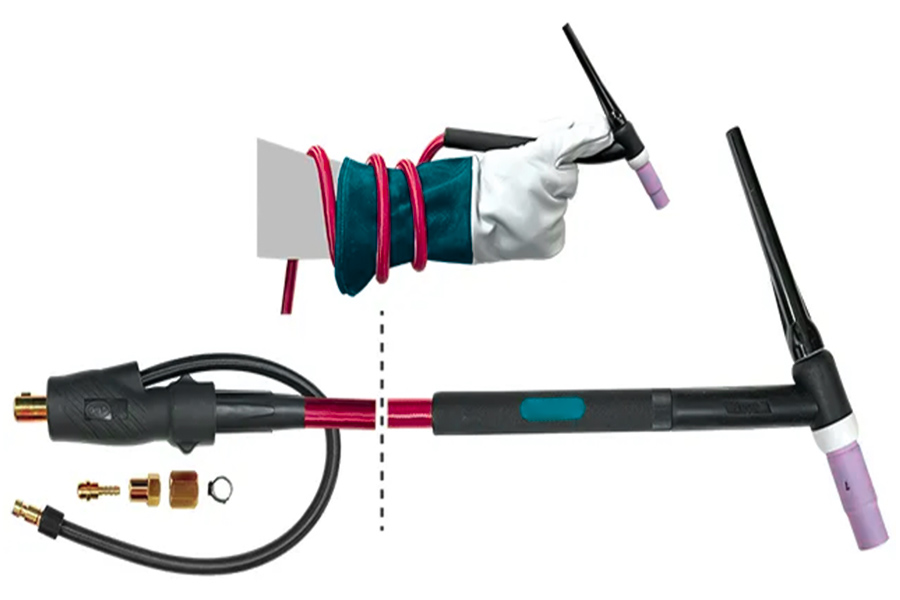

Anatomy of a TIG welding torch: Inside the “scalpel”

“Dear colleagues, today on my workbench, let’s completely disassemble the TIG welding torch, the core ‘scalpel’ in the field of welding. Understanding its internal structure, just like a doctor is familiar with surgical instruments, is the key to ensuring that our welding ‘surgery’ is accurate, efficient and perfect. Now, follow me!”

Core components of TIG welding torch (disassembly and analysis in assembly order)

1. Tungsten Electrode – the “heart” and “needle tip” of the arc

My perspective: This is definitely the “soul” of our welding gun! Every time I prepare for welding, I choose the tungsten electrode as carefully as a surgeon chooses a surgical blade. It is made of high-purity tungsten or doped alloys (thorium, cerium, lanthanum, etc.), with a melting point of an astonishing 3400°C, which ensures that it is almost not melted under high-temperature arcs, and is purely a carrier and guide for the arc.

Key influence: Its diameter selection (commonly 0.5mm to 6.4mm) directly determines the upper limit of the welding current we can carry. The shape of its tip (ground, flat top, spherical) – this is an item I must check before starting work every day – accurately controls the focus, stability and penetration characteristics of the arc. Grinding a perfect cone angle is the first step to ensure smooth arc start and stable weld pool. Remember: tungsten electrode state = arc quality = weld quality!

2. Collet – “precision buckle” of tungsten electrode

My perspective: This small copper sleeve (usually brass or copper) is inconspicuous, but it is the key “buckle” to fix the tungsten electrode. It is usually slit longitudinally and has a certain degree of elasticity.

Core function: Its inner diameter must strictly match the diameter of the selected tungsten electrode (for example, 1.6mm tungsten electrode with 1.6mm collet). When pressed, the slit shrinks, generating uniform radial force, clamping the tungsten electrode firmly and centrally on the center line of the welding gun. Loose or eccentric clamping will cause arc drift, tungsten electrode burning or even breakage. I have dealt with too many such failures. Copper material ensures good conductivity and heat dissipation.

3. Collet Body – The “hub” of airflow and current

(1) My perspective: This copper part with external threads (usually standard No. 8 or No. 9) is the core “traffic hub” at the front end of the welding torch.

(2) Core functions:

Housing the collet: The collet is securely placed in its inner cavity.

Conductivity: The welding current is transmitted through it to the collet and then to the tungsten electrode. Therefore, its conductivity and the cleanliness of the contact surface with the collet are crucial. Poor contact will cause heating or even burning.

Gas conduction: It is designed with multiple small holes or slots on the side (sometimes also on the rear end). The shielding gas (Ar, He or their mixture) enters from the welding torch hose and must pass smoothly through these holes before it can flow to the nozzle. I often remind operators to check whether these small holes are blocked by spatter or dust, which is directly related to the gas shielding effect.

4. Ceramic Nozzle/Cup – Gas “flow shield”

(1) My perspective: This is usually a white, brown or pink ceramic part (it can also be fused quartz or metal), which is the “gateway” at the front end of the welding gun. It directly determines the coverage and shape of the shielding gas.

(2) Core function: It is screwed onto the front end of the chuck body through the internal thread. It constrains, gathers and smoothly guides the relatively scattered shielding gas flowing out of the chuck body to the welding arc area and the high-temperature molten pool, forming an effective inert gas protection layer, isolating the air (especially oxygen and nitrogen), and preventing the weld from oxidation and nitridation. The choice of inner diameter size (#4, #5, #6, #8, etc.) and length are determined by me based on the welding current (heat input), joint accessibility (narrow seams require small nozzles), and protection requirements (large current/large molten pools require larger protection range). Ceramic materials are high temperature resistant and insulating.

5. Upgrade options – Gas lens: the “secret weapon” for high gas shielding requirements

When the standard configuration cannot meet the gas shielding requirements of welding easily oxidized materials such as stainless steel, titanium alloy, nickel-based alloy, or in a slight draft environment, the gas lens is an ideal choice. It is an upgrade kit that usually replaces the standard chuck body and porcelain nozzle.

(1) Core structure and advantages:

• Precision filter: One or more layers of dense stainless steel wire mesh are integrated inside.
• Laminar flow effect: After the shielding gas passes through the metal mesh, the turbulent flow becomes laminar flow, such as water flow becomes straight and stable after passing through a fine filter.

(2) Significant advantages (for critical welds):

• Wider protection range: Suitable for corner welds or large-scale protection occasions.
• Longer protection distance: Strong anti-interference ability, the long tungsten electrode can also fully protect the molten pool and heat-affected zone.
• Stronger anti-interference ability: Strong resistance to slight air flow, reducing the risk of pores and oxidation.
• More stable and uniform protection: The gas coverage in the molten pool area is uniform and consistent.

(3) Application scenarios:

• High-demand stainless steel pipe welding (food, pharmaceutical, chemical industry).
• Aerospace-grade titanium alloy component welding.
• Nickel-based alloy (such as Inconel) welding.
• Occasions with strict aesthetic requirements on weld color.
• Working in a field environment where breeze cannot be completely isolated.
• Deep and narrow groove welding requiring a longer tungsten electrode extension.

Note: The inner diameter of the gas lens porcelain nozzle is usually larger (such as #7, #8, #10) to accommodate a wider laminar gas beam.

This is the precision tool I hold in my hands every day. Each component is carefully designed and manufactured to work together to complete the precise task of “embroidering” on metal. Understanding them and using them well is the basis for a perfect weld.

Practical case analysis: Manufacturing “zero-defect” stainless steel housings for medical devices

Theoretical knowledge must ultimately serve practice. Our LS team proves this every day. The case shared today vividly illustrates how the precise selection of each component and each parameter in high-value and strict welding directly determines the success or failure of the product. This is not just welding, but also the art of precision craftsmanship.

1. Customer challenge: Thin-walled stainless steel housing welding deformation and black weld

Project background: We received an urgent request for help from a medical device manufacturer. They need to weld a batch of extremely precise equipment housings, and the material is 1.2mm thick medical grade 316L stainless steel plate. The requirements are very demanding: the weld must be absolutely smooth and without any visible deformation. Most importantly, the weld color must maintain the silver-white brightness of the stainless steel, and oxidation color (black or bluish) must not be allowed. This is not only a strict hygiene standard requirement, but also a threshold for the appearance of high-end products.

Dilemma: The samples delivered by the customer’s initial supplier made us frown at first sight. The problem was very obvious and serious: the area around the weld had obvious wave-like warping due to overheating, and the entire shell was “arched”; even worse, the weld itself was gray or even black, clearly indicating that oxidation had occurred during the welding process. This did not meet the standards of medical-grade products at all, and was a direct death sentence. The customer was very anxious, and the product launch plan was about to be stranded.

2. Diagnosis and solution: from “standard configuration” to “fine adjustment”

• Root cause: After research, the problem stems from the “one-size-fits-all” thinking. First, the heat is out of control. The original supplier uses an inappropriate current control method, which causes the 1.2mm thin plate to overheat and deform; second, the gas protection fails. The argon protection cover formed by the standard chuck body and the ordinary porcelain nozzle is narrow, unstable, and insufficiently covered. The weld is easy to oxidize and blacken when welding thin plates.

Solution: Fine adjustment is performed for high-precision requirements.

1. Welding torch parts: Upgrade the gas lens system and match it with a large special porcelain nozzle (such as #8 or #10). The gas lens makes the argon protection layer wide, the laminar flow stable, and the coverage is sufficient, ensuring that the molten pool and the high-temperature weld area are closely protected by inert gas when welding thin plates.
2. Tungsten electrode selection: Use 2% lanthanum tungsten electrode (blue end), which has good arc starting and arc stabilization performance. Grind its tip into a long and sharp cone to obtain a concentrated and stable arc, reduce the heat-affected zone, and prevent deformation of the parent material.
3. Current control: Abandoning the simple on-off mode, the welding operator is required to control the current with a foot pedal throughout the process. The arc is soft at the start, fine adjustment during welding, and the current is slowly and steadily reduced at the end, and the gas delay shutdown function (2-5 seconds) is used to prevent arc oxidation.

3. Final result: The weld is as bright as silver, and the product passed the acceptance at one time

Dramatic transformation: When we handed the carefully welded new sample to the customer, the effect was immediate. The weld surface showed the unique silver-white luster of stainless steel, like a mirror, without any signs of oxidation, blackening or bluing. The customer even touched the weld area repeatedly with his hands, and it was so smooth that he could hardly feel any bulges or depressions, not to mention the previous severe warping and deformation. In the words of the customer’s QC supervisor: “This weld is as beautiful as a work of art.”

Quantified benefits:

• The most direct: The product welding qualification rate jumped directly from nearly 0% of the previous supplier to 100%.
• Process revolution: The pickling and grinding and polishing processes originally planned to solve oxidation and appearance problems were completely eliminated. This item saves customers a lot of man-hours, chemical agent costs and post-processing equipment losses.
• Market success: Helping customers launch their flagship high-end medical equipment on schedule and with guaranteed quality, not only meeting strict regulatory requirements, but also its excellent appearance quality has become a major selling point of the product, significantly enhancing the brand reputation.

Core revelation:
This case once again confirms the creed of our LS team: In the field of precision TIG welding, the devil is always in the details. A seemingly simple change from a standard chuck body to a gas lens has produced a world of difference in this medical product related to life and health. The true professional value is reflected in whether we have the ability to deeply understand the needs of each specific application scenario, and accurately select and optimize every small component and every welding parameter. This is not “usable”, but the pursuit of “perfection”. Medical-grade “zero defects” are “welded” one millimeter by one millimeter and one ampere by one ampere.

FAQ – Answers to all your questions about TIG welding

1. What are the 11 steps of TIG welding?

Based on my experience, instead of memorizing the 11 steps, I recommend grasping the four core stages: first, the preparation stage, thoroughly clean the workpiece and grind the tungsten electrode; then the setting stage, select AC/DC according to the material, adjust the current and airflow; then the execution stage, hold the gun steadily, control the arc accurately, adjust the heat with the foot pedal and feed the wire smoothly; finally, the finishing stage, gently close the arc and maintain gas delay protection. These four steps cover all key operations.

2. What are the disadvantages of TIG welding?

I think TIG welding has three main shortcomings: first, the speed is slow, and the production efficiency is significantly lower than MIG welding; second, the technical threshold is high, requiring high coordination of both hands (one hand holding the welding gun and the other hand feeding the wire), which is difficult for novices to master quickly; third, the environment requirements are harsh, the workpiece must be extremely clean, and the slightest wind will blow away the shielding gas, causing the weld to oxidize.

3. What are the differences between the components of TIG and MIG welders?

The core difference is the welding torch and wire feeding system. TIG welding torchs only deliver shielding gas and arc, and wire needs to be manually filled; while MIG welding torchs have their own wire feeding mechanism, and the welding wire is automatically fed through the conductive nozzle, acting as both electrode and filler material. Both use power supply and workpiece clamp, but TIG welding torch structure is simpler and does not have a built-in wire feeding device.

Conclusion

As an engineer at LS, I know that a TIG welder is not just a machine. It is a complete system that consists of multiple precision components, including power supply, control system, high-frequency arc starter, precise gas path, stable cooling system, well-designed welding torch and the tungsten electrode that is ground to perfection. Truly understanding the function and interaction of each component from the core of the power supply to the tip of the tungsten electrode is the key to unlocking the full potential of TIG welding and creating perfect welds with both strength and beauty.
