What is DRO on a metal lathe?

This guide will tell you exactly what a DRO is, reveal how it works, and demonstrate, using a real-life example, why in many cases you really need to have one installed on your lathe.

Here’s What You’ll Learn

1. The precise definition of DRO: explain in one sentence what it is and what it is not (definitely not a controller!).
2. The three core components of DRO: reveal how the “eyes”, “nerves” and “brain” work together.
3. The radical solution to the three major pain points of lathe processing: how to use DRO to completely eliminate backlash, achieve absolute positioning, and improve efficiency by 200%.
4. Actual rescue mission: see how DRO reversely repairs the “undocumented rotor shaft” and saves the customer millions of losses.
5.  Frequently asked questions (FAQ): authoritative analysis of taper calculation and coordinate switching problems that even old masters would be confused about.

Now, let’s reveal how DRO upgrades traditional lathes to digital precision tools!

Why trust this guide? Insights from LS CNC and Precision Machining Experts

At LS, precision is not a goal, it’s a starting point. Day in and day out, we operate CNC machines and precision equipment that handle tolerances in thousandths of an inch (0.025mm) and even microns. This is the standard we live by. While CNC machining is our core, we know that traditional precision machining runs in its veins.

It was at this intersection that we deeply understood the revolutionary significance of DRO (Digital Readout). It is not a simple upgrade accessory – it is the soul of CNC – ‘real-time, accurate position feedback’ – injected into the body of manual machine tools. This understanding comes from our own hands in the spark-flying workshop, with and without DRO.

Let me share a few scenes that are etched in my memory: we were commissioned to successfully replicate and restore a badly worn antique part without the original drawings. Every subtle curved surface and every critical matching dimension rely on the meticulous craftsmanship of manual equipment, and the clear and reliable coordinate readings provided by DRO are our only signpost for “reverse engineering”. We have also experienced the high cost of making one-off prototypes that are never allowed to be reworked. The materials themselves are valuable, the design is complex, and the cost of failure is unbearable. In front of the precision manual milling machine equipped with high-quality DRO, we hold our breath and rely on the absolute position confidence it provides to determine success or failure with one stroke.

These experiences have confirmed one point countless times: manual turning and milling operations without DRO, even the most skilled masters, facing a strictly required stepped shaft or multi-dimensional complex parts, are like walking on thin ice. Dimensional deviations are often exposed at the last minute and are costly. DRO brings more than just digital display, but also process controllability and certainty of results.

This guide is not a theoretical compilation on paper. It is the practical crystallization of our LS team in the pursuit of the eternal topic of “dimensional accuracy”, with countless parts, countless measurements, countless successes and potential risk avoidance. What we share are the core methods and deep understanding that we rely on to create precision value every day.

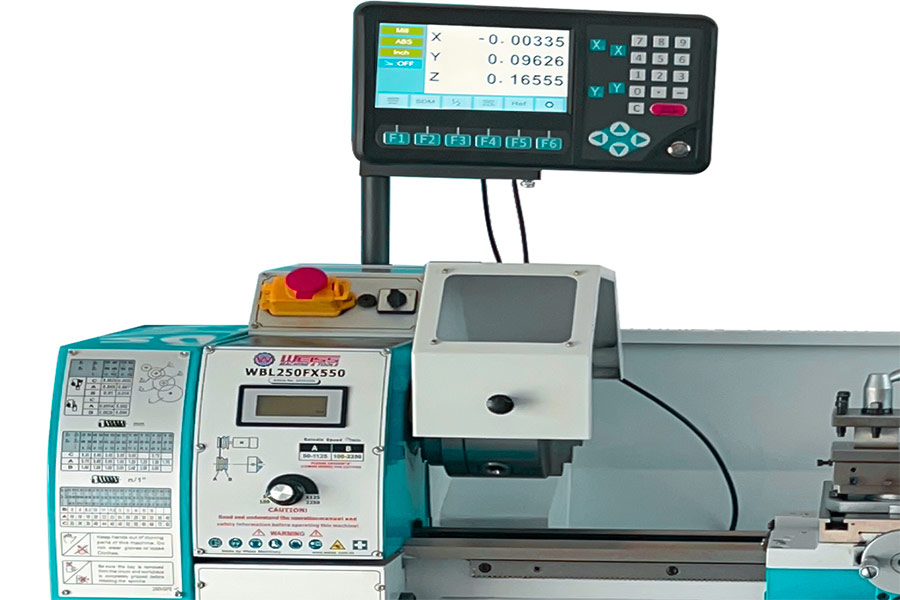

What is DRO on a metal lathe?

Digital display (DRO) is short for “digital readout”. It is a high-precision electronic measurement and display system installed on machine tools (such as lathes and milling machines) to indicate the position of the tool relative to the workpiece in real time and intuitively.

1. Core function: accurate measurement and display

• The core function of DRO is to use high-precision sensors (usually grating scales or magnetic scales) to detect the actual displacement of the moving parts of the machine tool (such as the slide and cross slide of the lathe).
• It converts these tiny displacements into electrical signals, and after processing and calculation, displays them on the screen in real time in a clear and easy-to-read digital form (such as X-axis, Y-axis, and Z-axis coordinate values).
• The operator no longer needs to rely on manual dials, screw speed estimation or feeling to judge the position, and can directly read the numbers to know the exact position.

2. Positioning function: “GPS” of machine tools

• Just as GPS provides accurate position navigation for vehicles, DRO provides machine tool operators with accurate “coordinates” of tool movement.
• Without DRO, operation is like driving in an unfamiliar city by feeling and estimating mileage; with DRO, you can see the precise “street number” (coordinate value) in real time, greatly improving positioning accuracy and efficiency.

3. Non-control attribute: It is an indicator, not a controller

• Key distinction: DRO does not automatically control or drive the movement of the machine tool (such as moving the tool holder, changing the feed speed).
• It is only responsible for measuring the current position and displaying it. The operator manually operates the machine tool handle or button to move the tool to the target position based on the displayed reading.

4. Working principle: sensor + display unit

• Sensor (grating scale/magnetic scale): Precision mounted on the moving axis (e.g., longitudinal and transverse) of the machine tool. The scale body is fixed on the machine tool bed, and the reading head is fixed on the moving portion. As the part moves, the reading head detects the minute change in the scale line or magnetic field.
• Display unit (header/display): Receives signals from the reading head, counts and computes, converts the displacement into coordinate values, and displays them clearly on the screen. It usually also possesses some auxiliary functions, such as zeroing, presetting origin, calculating hole distance, radius, angle, etc.

Digital readout display (DRO) greatly improves the accuracy, efficiency and ease of machine tool operation by real-time, high-precision digital indication of tool position. It is a major ancillary measuring tool in modern machining.

The three main components of the DRO system: eyes, nerves, and brain

The three fundamental components of a DRO system are the ruler (“eye”), the readhead (“nerve”), and the display (“brain”). They combine to give precise digital measurement and indication of machine tool movement.

1. Ruler – The “eye” of the system

• Function: The system’s sensor, the ruler accurately “sees” all small displacement of the parts of the machine tool. They are mounted on main motion axes (such as the bed/Z axis and cross slide/X axis of the lathe).
• Type: There are two types mainly:
• Glass grating ruler: Uses optical principles to measure displacement and provides very high measurement accuracy.
• Magnetic ruler: Employs magnetic induction principles to detect displacement and has very good environmental tolerance and anti-contamination.

2. Reading head – The “nerve” of the system

• Function: Serves as a signal transmitter. The reading head is mounted directly on the moving part (e.g., the tool holder) and travels on the ruler when the part moves. It reads the position information on the ruler in real time and transmits the electrical signal to the display via a cable.

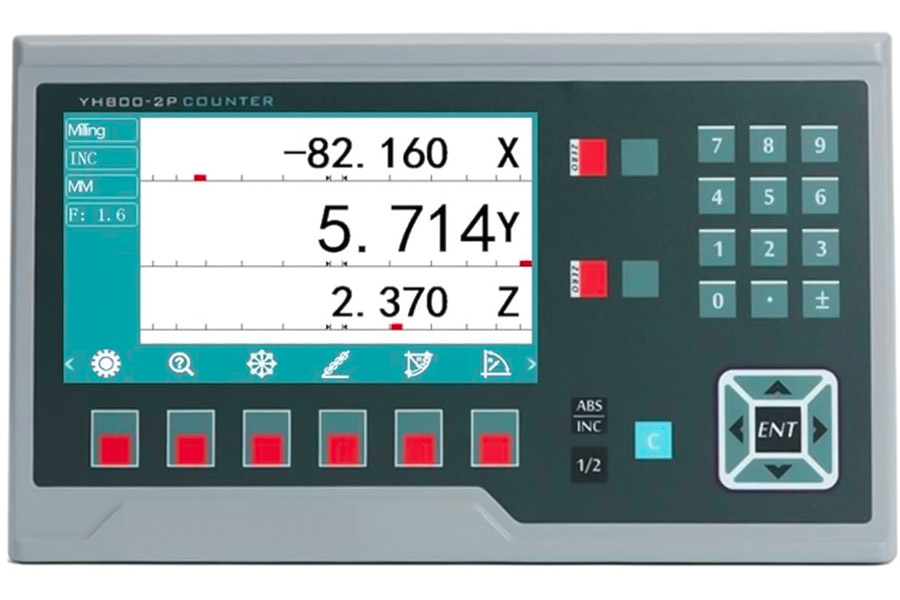

3. Display – the “brain” of the system

• Function: It is the information processing and user interface center of the entire system. It takes signals from the reading head, calculates and converts them accurately into simple-to-read digital coordinates (such as X-axis and Z-axis position). The function of modern DRO displays goes far beyond the indication of coordinates. They tend to have powerful computing capabilities and provide convenient functions such as one-button centering, metric/imperial unit conversion, absolute/incremental coordinate mode switching, bolt hole circle indexing calculation, taper calculation support, etc., which significantly improve working efficiency and accuracy.

Briefly, measuring ruler (“eye”), reading head (“nerve”) and display (“brain”) are the three basic and closely coordinated parts of the DRO system. Displacement is sensed by the measuring ruler, received and transmitted by the reading head, and processed and output by the display, collectively providing accurate and clear position feedback and powerful tool calculation aid function to machine tool operation.

Why do we need DRO? How does it solve the fundamental pain points of lathe machining?

A digital readout (DRO) is absolutely necessary on a lathe. It is essential to improve machining accuracy, efficiency and ease of operation.

The digital readout (DRO) fundamentally solves several core pain points in manual lathe operation by directly and accurately measuring the actual position of the tool holder, rather than relying on the number of turns of the screw that may have errors:

Pain point 1: Completely eliminate the “backlash” error

1. The essence of the problem: There is inevitably a small gap (called “backlash” or “backlash”) between the screw and the nut of a manual lathe. When the operator changes the direction of handwheel rotation (such as from forward feed to reverse retraction), the handwheel needs to rotate a certain angle (idle rotation) to eliminate this gap before it can actually drive the tool holder to move. This causes the scale reading on the dial (based on the screw rotation) to be inconsistent with the actual position of the tool holder. Novices often undersize or scrap parts because they do not compensate for this gap, which is one of the most common sources of dimensional error.
2. Digital Display Solution: The heart of a digital display is its high-precision linear displacement sensor (optical or magnetic) mounted on the table or tool holder.It actually and in real time directly measures the physical position of the tool holder, regardless of the direction of rotation or backlash of the lead screw. No matter how the operator turns the handwheel back and forth, the coordinates displayed on the screen are always the true position of the tool tip relative to the workpiece or reference point. This completely eliminates dimensional inaccuracies caused by backlash and significantly improves machining accuracy, especially when performing reciprocating cuts or where accurate retraction is required.

Pain point 2: From “relative movement” to “absolute positioning”

(1) Nature of the problem: In normal manual operation, the operator usually needs to perform “relative movement” from the current position. For example, “I would like to move 5 mm in the front (negative direction of Z axis)”. This requires the operator to:

• Memorize the current dial reading.
• Compute the target position mentally (current reading + 5mm).
• Turn the handwheel while observing the dial, trying to accurately move to the desired value that had been mentally calculated.
• This process is likely to accumulate errors due to distraction, calculation or reading the dial incorrectly, especially where multiple step-by-step movements are required.

(2) DRO solution: One of the fundamental operations of a digital display is to allow the operator to easily set the workpiece zero point (usually on the end face of the workpiece or a significant reference surface). Having set the zero point, the entire machining operation is then an absolute coordinate operation. The operator does not need to concern himself with where the current tool is but only know where he wants to go to (for instance, Z=-35.50mm). On a DRO, you can directly:

1. Zeroing operation: Zero set the present point (X0, Z0).
2. Coordinate positioning: Watching the clear digital display, directly shift the tool to the target absolute coordinate (for instance, Z=-35.50mm), and the display will indicate the difference between the current position and the target position in real time (usually called “movement amount” or “incremental value”) and the operator just needs to zero the difference.
   Preset coordinates: Advanced DRO can also store some target coordinate points.

This completely eliminates the time-consuming mental calculation and reliance on dial reading, greatly reducing the chance of processing error through calculation or reading error, and simplifying the operation process.

Pain point three: Dramatically increase efficiency and confidence

The root of the problem: In the absence of DRO, in order to ensure accuracy, operators will often adopt a very conservative method:

• Make approximate cuts.
• Stop the machine.
• Remove the tool.
• Measure the workpiece with a caliper, micrometer, etc.
• Calculate the further amount of cutting from the measurement results.
• Reset the tool and try the next trial cut carefully.

This process includes successive stoppages, measurements, calculations, and trial cuts, which consume plenty of time, and each trial cut is accompanied by the risk of scrapping the workpiece due to measurement error, calculation error, or improper tool setting, which considerably lowers the overall processing efficiency and also undermines the confidence of the operator.

DRO Solution: With DRO’s true, real-time absolute position feedback and virtual elimination of backlash, the operator’s machining strategy has radically changed:

Confident Cutting: The operator can move the tool by directly reading the DRO display to a position very close to the final target size (e.g., to within 0.1mm or 0.05mm of the target diameter), with only a small finishing allowance remaining.
Dramatically Reduce the number of measurements: You can rely almost entirely on the DRO’s accuracy for control during the roughing and semi-finishing operations, with zero or very few mid-process stoppages for measurement.
Economical Finishing: Only one or two small cuts are required when finishing to reach the final size.
Less Risk of Trial Cutting: Trial cut wastage caused by manual calculations and gap compensation errors is prevented.

Digital readout (DRO) is no longer a “dispensable” luxury for modern lathes (especially manual or semi-automatic lathes), but a “necessity” to improve accuracy, efficiency and operating experience. It fundamentally solves the inherent mechanical defect of reverse clearance error by directly measuring the displacement of the tool holder; by providing absolute coordinate positioning, it completely changes the traditional mode that relies on relative movement and mental arithmetic, eliminating human calculation errors; ultimately, it allows operators to significantly reduce the number of stoppages for measurement, perform faster and more confident cutting, significantly improve overall processing efficiency and reduce scrap rates. Investing in a reliable digital readout is a key step to improving lathe processing capabilities and economic benefits.

Practical case analysis: Repairing the “orphan” rotor shaft of a discontinued pump

“Theoretical advantages can only show their true value when faced with a task where ‘success is the only option’. Let’s take a look at a real maintenance case we have handled.”

Customer Challenge: Time is running out, and there are no drawings or spare parts

That day, we received an urgent request for help from a chemical plant. The core imported pump on one of their key production lines broke down, and the culprit was the severely worn stepped rotor shaft inside. This shaft is not simple, with five precision steps of different diameters, a high-precision bearing seat, and a long taper. What’s more terrible is that this pump has been out of production for many years. Not to mention buying new spare parts, even a decent drawing cannot be found! Every day the production line stops, the customer loses a lot, and the pressure is directly transmitted to our shoulders.

The problem in front of us is very clear: a new shaft must be perfectly copied. But using a traditional manual lathe to do this job is extremely risky: there are many steps, complex dimensional chains, and cumbersome taper calculations, all relying on the experience and feel of the master. If you are not careful, a size is out of tolerance, and the entire expensive alloy steel bar will be scrapped, and time cannot be wasted. Customers can’t wait, and we can’t afford to lose.

LS’s solution: Reverse engineering with a DRO-enabled manual lathe

Our team carefully analyzed the difficulties: the core challenge is not the turning technology itself, but how to ensure the accuracy of the complex dimensional chain and the precise processing of the long taper, while avoiding the cumulative errors that are difficult to eliminate in manual operation.

After evaluation, we did not choose the expensive CNC (which is too cost-effective for single-piece repair), but took out our “secret weapon” – a precision manual lathe equipped with a high-performance digital readout system (DRO). The solution is as follows:

1. Precision reverse measurement: We carefully clamped the customer’s worn old shaft on the lathe. Instead of relying on calipers and eye estimation, we used a dial indicator with the coordinate measurement function of DRO to measure point by point: the starting point (Z coordinate), end point (Z coordinate), and diameter (X coordinate) of each step, all key coordinate data were accurately recorded and stored by DRO. It’s like making an accurate “digital rubbing” of the old shaft.

2. Absolute coordinate machining, say goodbye to cumulative errors: It’s time to process the new axis bar. We set the Z-axis zero point steadily on the end face of the bar. Then, when machining each step, we don’t look at how many times the dial handwheel turns, but directly move the tool holder to the target position (for example, Z= -50.000mm, X= 80.000mm) according to the coordinates displayed on the DRO, and then turn. This step is crucial, completely avoiding the cumulative errors caused by the step-by-step movement in the traditional method. Each dimension is independently referenced to the zero point, and the accuracy is fundamentally guaranteed.

3. DRO assists, and the taper problem is solved: How to deal with the long taper that makes people headache? The taper calculation function of DRO is very useful. We only need to enter the coordinates of the starting point of the taper (Z1, D1) and the coordinates of the end point (Z2, D2) in the DRO interface, and it will automatically calculate the precise angle (for example, 1.5°) that the small tool holder needs to rotate. We set the tool rest angle according to this prompt value, and the rest is to move the tool smoothly. The whole process is clear and controllable, and there is no need to worry about complex trigonometric calculation errors.

Final result: One-time success, a million-dollar victory

After the new shaft was machined, the customer couldn’t wait to use a coordinate measuring machine (CMM) for full-size inspection. The result was exciting: All dimensions passed at one time! The tolerance with the original part (theoretical dimensions after compensating for wear according to the repair requirements) was completely controlled within 0.015mm, a perfect match!

The value brought by this repair is real:

1. Zero scrap: Expensive alloy steel bars were successfully machined in one go, without wasting a penny of material.
2. Lightning delivery: It took only 2 days from receiving the task to delivering qualified parts. If the customer waited for a new pump or found CNC customization, he would have to stop work for at least a few weeks.
3. Huge loss prevention: The customer’s production line quickly resumed operation, directly avoiding millions of yuan in economic losses that might be caused by the shutdown. Hearing the sound of the production line roaring again, our team was also full of a sense of accomplishment.

Core revelation: DRO – the precision revolution of manual lathes

The deepest impression this case gave me is that for high-value, single-piece or small-batch precision repair and reverse engineering tasks, a good DRO system can completely change the “rules of the game” of manual lathes. It instantly upgrades a traditional device that relies on the experience and “feel” of the master craftsman to a “data-driven” precision machining platform. It provides positioning accuracy, repeatability and machining reliability close to CNC at a much lower investment cost than CNC. This success is not only a victory for technology, but also a victory for our choice of the right tool strategy. It proves that in the battlefield of “orphan” repair, precision manual machining combined with DRO is still an extremely sharp and cost-effective “scalpel”.

FAQ – Answers to your questions about lathe processing

1. What is DRO used for?

The core function of DRO (digital readout) is to display the position of the tool relative to the workpiece in real time and accurately. Its main functions are: to eliminate positioning errors caused by mechanical backlash; to achieve accurate and fast positioning, reduce the need for repeated measurements; and to assist in performing complex calculations (such as taper processing angles and hole position indexing).

2. What does it mean to taper on a metal lathe?

“Tapering” refers to machining a conical surface on a lathe with a diameter that increases or decreases uniformly along the axis of the workpiece. The typical operation is to rotate the small tool holder (compound slide) to a specific angle and then perform manual feed cutting. Using DRO can greatly simplify the calculation process of this critical angle.

3. Should I buy a lathe or a milling machine first?

The choice depends on your main processing object: if you often process circular and axisymmetric parts (such as shafts, sleeves, flanges, screws), you should give priority to lathes; if you often process parts with planes, slots, holes and square features (such as brackets, molds, and housings), you should give priority to milling machines. Lathes and milling machines are two basic and complementary core equipment in metal processing. Only by working together can more complex parts processing be completed.

Conclusion

DRO (Digital Readout) is a revolutionary upgrade for manual lathes. It elevates machining from “experience and feel” to a new level of “data and certainty”, significantly improving accuracy, efficiency and simplifying complex operations (such as taper calculations).

1. DRO helps flexible production: Lathes equipped with DRO are ideal for single-piece/small-batch prototyping.
2. When the demand escalates: If you pursue higher efficiency, perfect repeatability or need to process complex contours, the limitations of DRO will become apparent.
3. LS’s precision manufacturing solutions: At LS, we integrate DRO’s “digital precision” concept into fully automatic CNC machining centers to achieve:

• Unattended and efficient operation
• Micron-level repeatability
• Powerful processing capabilities for complex geometries
