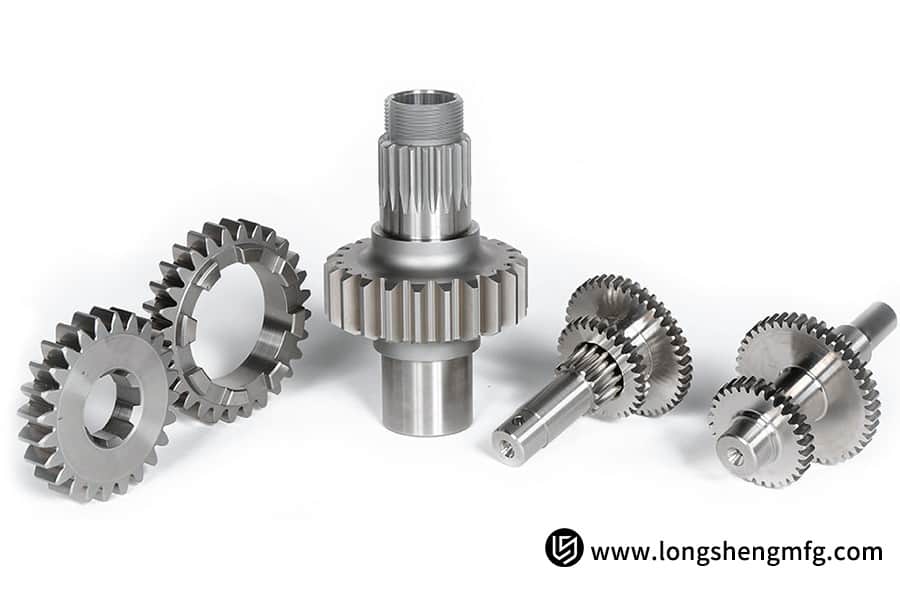

Gear machining plays a very important role in the precision machinery manufacturing industry, since it directly influences the geometric accuracy, surface quality. Therefore, high-level gear machining requires not only precise dimensional accuracy but also all-round control over material property, heat treatment process, and dynamic meshing performance.
LS Manufacturing is fully aware of this core demand. By applying advanced machining technologies and rich experience, we serve clients with comprehensive gear services. We are committed to ensuring that each and every gear leaving our factory achieves precise, quiet, and reliable transmission performance under complex operating conditions for the overall performance and reliability of the equipment.
Gear Machining Core Quick Reference Table
| Topic | Content Description |
| Core Concept | The technical process of manufacturing precision gear teeth by methods of cutting and forming. |
| Process Classification | Mainly includes forming methods such as hobbing and gear shaping, and finishing processes such as grinding. |
| Accuracy Grade | Classified according to ISO standards, the smaller the value, the higher the precision, affecting transmission performance. |
| Material Selection | Choosing alloy steel, stainless steel, etc., depending on operating conditions to meet usage requirements. |
| Heat Treatment | Carburizing, quenching, and other methods aimed at enhancing the surface hardness and improving the wear resistance of gears. |
| Quality Inspection | Using a gear measuring center to verify the accuracy of the tooth profile and the quality of machining. |
Gear machining is a key technology that integrates high precision, professionalism, and a systematic approach. Its ultimate goal is to manufacture gears that perfectly match dynamic transmission requirements, laying a solid foundation for superior performance and dependability of the entire mechanical equipment.
Why Trust This Guide? Practical Experience from LS Manufacturing Experts
The insights in this guide are derived from LS Manufacturing’s decades of professional expertise in gear machining. We have not only a comprehensive knowledge system from materials science to heat treatment processes but also successful experiences in providing precision gear solutions to numerous top industry clients. This deep professional foundation ensures that our guidelines go beyond generalities and directly address the core challenges and pain points in demanding transmission applications.
Each of the recommendations in the guidelines has been time and again confirmed in our production environments and under severe operating conditions. That is, from design optimization to mass production, LS Manufacturing is familiar with the practical challenges and solutions.
What we share here, therefore, is not just theory; it is valuable, practically proven experience that may be applied directly to improve gear performance and reliability.

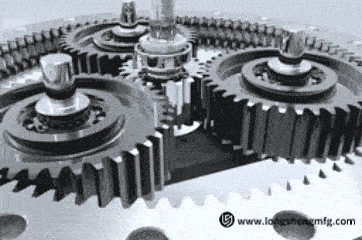

Why is gear machining considered a core technology of precision manufacturing?
Gear machining is considered the core technology of precision manufacturing because it determines directly the core performance of mechanical transmission systems. In high-speed and high-load conditions, the microscopic precision of gears determines directly the smoothness, efficiency, and noise level of transmission, serving as a key benchmark for measuring the level of equipment manufacturing.
1. The impact of precision grades on transmission:
Gear precision is classified by ISO; the smaller the number is, the higher the grade of precision. Each improvement in grade indicates more precise control over parameters such as tooth profile, tooth direction, and tooth pitch, directly influencing equipment vibration, noise, and longevity.
2. LS Manufacturing’s Technical Support:
We ensure precision through systematic capabilities: high-precision gear grinding and hobbing machines imported from Germany and Japan, a gear measurement center which can do the full-parameter test, and a complete quality management system ranging from raw materials and heat treatment to finished products guarantees high consistency and reliability in gear performance.
Gear machining represents high-level integration in theory, technology, and quality control. It is not only important in the manufacturing of parts but also the cornerstone for reliable transmission in precision equipment. Equipped with profound expertise in this area, LS Manufacturing offers truly high-precision gear solutions to customers.

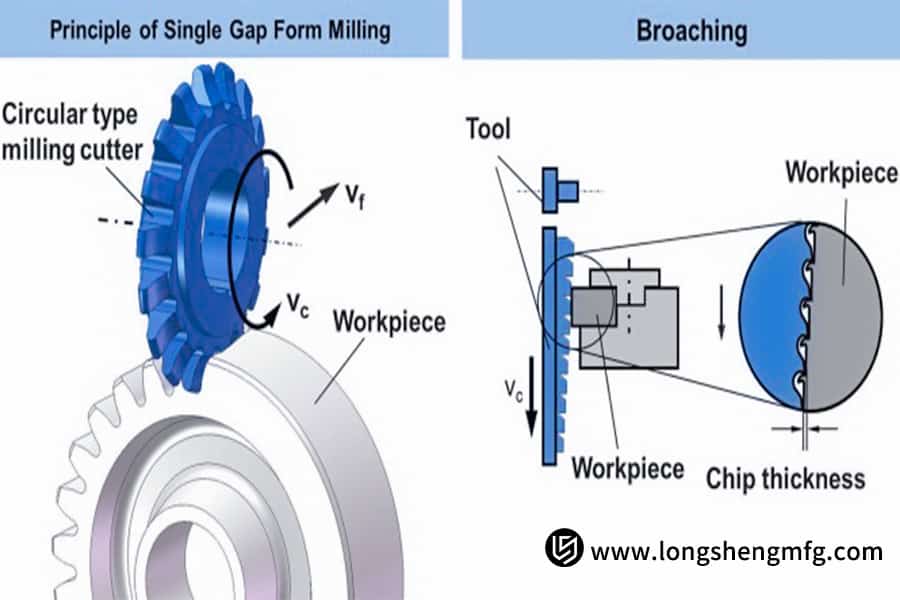

What major processes are used in contemporary gear manufacturing?
Modern gear manufacturing is a precision system with interdependent processes. Its high performance and reliability are rooted in the tight control of every important process within its realm. LS Manufacturing’s comprehensive process system and regular quality control ensure that each stage-from raw material to finished product-meets the standards set in advance. The main manufacturing processes include the following:
1. Preparation of blanks and rough machining of the gear profile:
The steel used is of high quality, with the initial blanks obtained through precision forging or blanking. Its internal structure and defects are strictly controlled, and the tooth profile is formed through efficient machining, such as gear hobbing and gear shaping. In this stage, basic dimensions and positional tolerances of the tooth profile have to be precisely controlled, laying the foundation for further processing.
2. Heat Treatment and Tooth Surface Finishing:
Heat treatment is a core processing step in improving the hardness, wear resistance, and fatigue strength of gear teeth. We will optimize the best fit of the hardened layer depth and core toughness by precisely controlling the parameters such as temperature, time, and atmosphere. After heat treatment, the tooth profile will be precisely corrected through finishing processes like grinding and honing to eliminate deformation, thus achieving micron-level high precision and excellent surface roughness.
The level of success gained by modern methods in gear manufacturing has been due to a deep understanding and precise execution of every key process. From systematic technical accumulation and strict process quality control, LS Manufacturing guarantees excellent quality stability and a long service life for every single gear it produces.

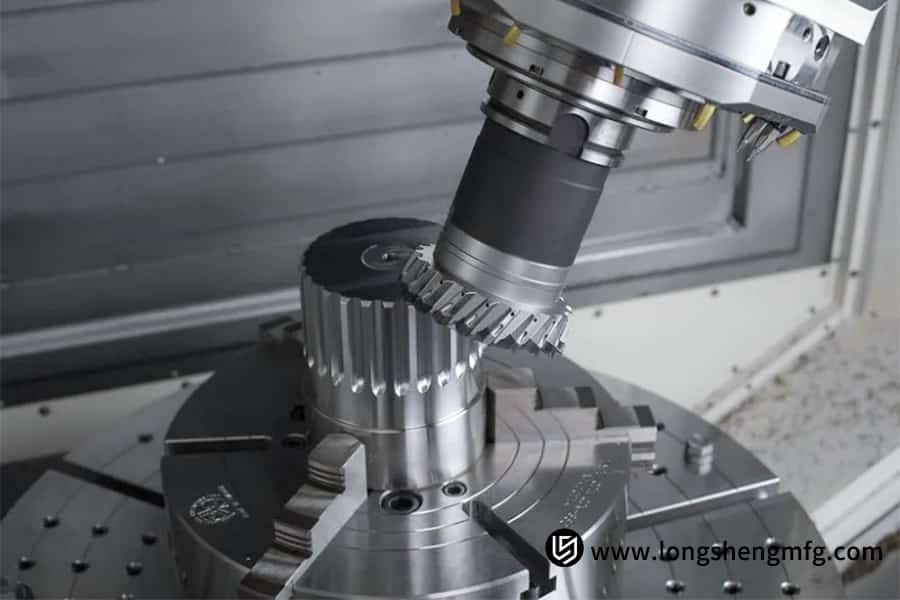

What are the advantages and application scenarios of gear cutting and gear hobbing processes?
Among the processes involved in the machining of gear tooth profiles, the two most critical and commonly used are gear cutting and gear hobbing. Scientific selection must be done to ensure the quality of gears and control the cost of production. These two methods are different in principle, efficiency, and application to meet different product needs. A detailed comparison is as follows:
| Comparison Dimensions | Hobbing Process | Gear Shaping |
| The principle of machining | Continuous generating method-the tool and workpiece are meshed like two interleaved helical gears, which means the relative movement is continuous and smooth. | Intermittent generating method-Application of tool reciprocating cutting motion, simulating a gear in mesh with a rack. |
| Machining Efficiency | High. Continuous cutting without any idle stroke, which is particularly suitable for the mass production of external gears. | Lower. Idle stroke exists, and thus relatively lower production efficiency. |
| Accuracy and Surface Finish | The result is high tooth-profile accuracy and good surface quality, suitable for transmissions that require very high precision. | Good accuracy but tool wrapping marks may remain on the tooth surface. |
| Core Application Scenarios | High-volume and high-efficiency production of external gears such as spur gears, helical gears, and worm gears. | Special structure processing has high flexibility: internal gear, multistage gear, shoulder gear, rack. |
Gear hobbing generally has obvious advantages in efficiency and precision for the machining of external gears, while gear cutting displays irreplaceable flexibility in dealing with internal gears and special structures.
For either process, at LS Manufacturing, we can scientifically select processes and develop the best-fit gear machining solutions according to your needs: gear type, batch size, and precision requirements within the cost budget, so as to achieve an optimum balance between product quality and economic benefits.
How to Choose the Most Suitable Gear Material for Service Life?
In designing the gear transmission system, scientific selection of gear materials is the cornerstone for the product service life and reliability. Different operating conditions have different requirements for material strength, wear resistance, toughness, and corrosion resistance. Correct selection can improve performance significantly, while incorrect selection can lead to premature failure.
1. Alloy Steel-Preferred for High-Load Conditions:
Alloy steels of the 20CrMnTi and 42CrMo varieties can achieve excellent “surface hardness and core toughness” through carburizing and quenching or tempering. They have high load-carrying and fatigue resistance, so they are a mainstream choice for heavy-duty, high-speed working conditions in vehicle gearboxes and industrial reduction gearboxes.
2. Stainless Steel and Engineering Plastics:
Solutions to Special Needs. Austenitic stainless steel (such as 304 and 316) is suitable for corrosion-resistant environments of food and chemical industries; engineering plastics, such as nylon and POM, possess self-lubricating, low-noise, and light-weight properties which play a very important role in light-load, corrosion-resistant, or quiet applications.
Material selection for gears should be comprehensive, considering a number of factors that include but are not limited to load, speed, environment, and cost.
LS Manufacturing, with extensive experience in materials science and a series of heat treatment processes, is able to provide professional material recommendations for customers to make sure each solution achieves the longest service life under specific operating conditions.
Proper Application of Gear Type in Transmission Systems?
In designing and optimizing transmission systems, correct gear type selection is the basis for guaranteeing equipment performance, efficiency, and reliability. Different gear structures can directly determine the transmission characteristics, so precise matching should be done according to a certain application scenario.
1. Spur gears and helical gears:
Spur gears and helical gears form the basis for parallel shaft transmissions. It has a simple structure and a lower price appropriate for medium-low speed work under conditions where noise is not a problem. Helical gears, because of their smooth meshing, high carrying capability, and noise reduction, are considered for applications that involve high power and speed transmission under heavy-duty conditions, such as gearboxes in automobiles. However, they create axial forces, which thrust bearings must bear.
2. Bevel gears and worm gears:
Bevel gears are used in the intersecting shaft drives for steering and high speed ratios, especially for 90-degree steering. Bevel gears find wide applications in vehicle rear axles and machine tools. Worm gears can achieve high speed ratios and self-locking functions, with a relatively compact structure. However, the efficiency of worm gears is relatively low. They are usually used in intermittent work, such as in lifting mechanisms and indexing devices.
Each type of gear has its particular merits and most suitable applications. Due to its abundant design and manufacturing experience, LS Manufacturing can provide the most optimal solutions for different customers in terms of their specific transmission systems’ needs-space layout, load, speed, efficiency requirements, and so on-to guarantee the economy and reliability of the whole design.
How does LS Manufacturing solve the noise and lifespan of the gearboxes in the industrial sector?
Abnormal noise from gear and premature failure are the core difficulties in industrial gearbox manufacturing, which directly influence equipment reliability. With professional gear solutions, LS Manufacturing has mature experience in improving gear lifespan and effectively controlling noise.
1. Customer Challenge:
A manufacturer of heavy equipment had a very serious problem: its gearboxes made much noise in abnormal conditions during full-load operation, while the tooth surface pitting developed long before attaining the designed service life, leading to frequent equipment downtime and sharp declines in customer satisfaction.
2. LS Manufacturing Solution:
We put together a team of experts to do a root cause analysis and used systematic improvements:
- First, by using advanced tooth profile and tooth direction modification technology, the meshing contact area has been precisely optimized while reducing edge stress concentration.
- Second, high-performance alloy steel material was selected and a computer-controlled deep carburizing and quenching process was adopted to ensure the best combination of high hardness on the tooth surface and toughness in the core;
- Finally, through strict process control, we minimized heat treatment deformation to ensure the final meshing accuracy of the gears.
3. Results and Value:
The service life of the improved reducer gears reached three times that of the target; operating noise was effectively controlled and reduced by 8 decibels. This achievement fully solved customer pain points, greatly improving the market competitiveness of its end products, and further achieving a solid long-term strategic partnership between the two parties.
LS Manufacturing offers not only gear products but also comprehensive gear solutions from analysis and design to manufacturing. Through systematic technical means, it has successfully achieved synergistic optimization of service life improvement and noise control, providing a solid guarantee for the reliability of customer products.
In what ways does heat treatment affect the performance of gears?
As one of the key factors that decide the performance of gears, such as their strength, wear resistance, and durability, heat treatment consists of a controlled heating, holding, and cooling process to change the internal structure of the steel so that different mechanical properties can be given to the tooth surface and core.
1. Targeted Enhancement of Different Processes:
It is mainly through the tempering and quenching that high-temperature tempering after quenching gives a strong and tough core matrix to gears, ensuring load-bearing capacity. While carburizing and quenching form a high-hardness, wear-resistant layer on the tooth surface with the assurance of core toughness, making it the choice for heavy loads and impact loads.
Nitriding, with its low temperature and minimal deformation, greatly improves tooth surface hardness and corrosion resistance, making it suitable for high-precision gears and gears operating under complex conditions.
2. Precise control at LS Manufacturing:
Our company is equipped with advanced controlled atmosphere heat treatment production lines and relies on a strict process control system to precisely manage and record key parameters like temperature, time, and carbon potential so that every batch of gears is consistently heat-treated and thus assures the best performance of gears.
Only scientific heat treatment design and precision process control can maximize the properties of gear materials. Based on its maturely applied heat treatment process, LS Manufacturing can ensure that gears meet high standards in key gear performance aspects: wear resistance, fatigue strength, and impact resistance.
Why is gear inspection and quality control equally important?
In precision gear manufacturing, gear inspection is not the last step of the production process but an integral part. Along with the manufacturing process, this forms a reliable quality control system-the fundamental basis to ensure precision in the product and its long-term stable operation.
1. Comprehensive Inspection Coverage:
Our inspection on gears ranges from key items like accuracy in tooth profile/direction, pitch deviation, and radial runout to ensure smooth meshing of gears with minimal noise. This prevents the loss of efficiency or abnormal wear because of microscopic deviations.
2. Advanced Equipment and Systematic Management:
The manufacturing provided by LS uses high-precision gear measurement centers and coordinate measuring machines, while adopting SPC methods to monitor the production line in real time. This comprehensive quality control system enables it to promptly identify and correct fluctuations, ensuring the consistency of batch products from the source.
Gear inspection is the benchmark that certifies design and manufacturing results, while systemic quality control is the cornerstone that guarantees the accuracy of this benchmark.
In this respect, LS Manufacturing ensures solid precision for customers by embedding stringent inspection criteria throughout the production flow, so that every gear can fulfill expected performances and lifespan.
How to acquire professional gear machining solutions?
The key to finding a reliable gear machining solution lies in supplier selection, which has deep technical know-how and comprehensive service capabilities. LS Manufacturing not only provides precision manufacturing but is also committed to providing clients with all-round professional services covering pre-production, production, and post-production.
- It starts with free and thorough technical consulting: You can provide gear parameters, operating requirements, or preliminary design drawings. Our engineering team will provide free technical consulting that includes design feasibility analysis, process optimization suggestions, and material selection recommendations, thus ensuring the best solution from the very start.
- It is achieved through systematic solution design and manufacturing: Based on consensus, we will offer a detailed machining plan, including process routes, precision levels, inspection standards, and budgets. Subsequently, precision manufacturing will be carried out with advanced equipment and a rigorous quality system that ensures controllability at every stage.
- Finally, it concludes with full-process support and collaborative optimization: We offer full-process tracking from trial production to mass production and provide timely data feedback to support the iteration of your products for long-term collaborative development.
Just a single professional technical consultation at the beginning will help you obtain your ideal gear machining solution. LS Manufacturing is looking forward to becoming your trusted gear technology partner through our professional services and enhancing product competitiveness jointly.
FAQs
1. What is the smallest module you can machine for gears?
Our precision machining capability is up to a module of 0.3, specializing in high-precision fields including instrumentation, micro motors, and robotics. We ensure that even at extreme dimensions, our tiny gears maintain excellent transmission smoothness and durability.
2. What is the average lead time from inquiry to delivery?
Standard gears take about 2-3 weeks, special gears (like big or high-precision) take 4-6 weeks. We have an expedited processing channel to flexibly adjust the production schedule according to the customer’s project urgency and minimize the delivery time.
3. What types of gears can you machine?
We manufacture all types of gears, such as spur gears, helical gears, bevel gears, and worm gears, up to a maximum machining diameter of 2 meters, covering a wide range of needs from micro-precision transmissions to heavy industrial equipment.
4. How would you ensure gear meshing accuracy?
Adopting high-precision CNC machine tool processing, individually designed chemical fixtures, and a gear measurement center, we strictly follow ISO precision standards to ensure consistency in tooth profile and direction for each batch of gears. It guarantees low-noise and high-efficiency transmission.
5. Do you accept small-batch orders?
We’re supporting orders from samples to small batches without any limit on the minimum quantity. The goal of our company is to help clients confirm the verification of product development, do the initial trial production, and provide process optimization suggestions to facilitate smooth project progress.
6. Is gear heat treatment completed in-house?
All heat treatment processes, such as carburizing and nitriding, are done in our workshop. By accurately controlling the parameters of the processes, the optimum matching of tooth surface hardness and core toughness is ensured, with full traceability of quality.
7. How to select gear materials based on operating conditions?
Our engineers will suggest alloy steel, stainless steel, or engineering plastics according to load strength, speed, and working environment requirements (like corrosion resistance needs) for the best performance-cost balance.
8. What information is required to request a quotation for gear machining?
Please provide gear drawings (including parameters), material requirements, precision grade, and estimated quantity. We’ll offer a transparent quote and process suggestions based on detailed data within 8 hours.
Conclusion
The technical sophistication of gear machining determines the transmission system’s performance and reliability. Every high-performance gear in modern industrial systems relies on scientific process design, precise material selection, and rigorous end-to-end quality control.
The experienced technical team, internationally advanced machining and testing equipment, and comprehensive quality management system at LS Manufacturing make sure that we provide deeply optimized comprehensive solutions to our customers, greatly improving the overall efficiency and lifespan of their equipment.
Professional collaboration starts with a dialogue; please contact LS Manufacturing and send us your technical requirements, operating parameters, or product drawings now, and you will receive a personalized gear machining solution including free design optimization suggestions and a transparent quote within 8 hours. Let’s use our professional technology and reliable quality to jointly build the core competitiveness of your products.
