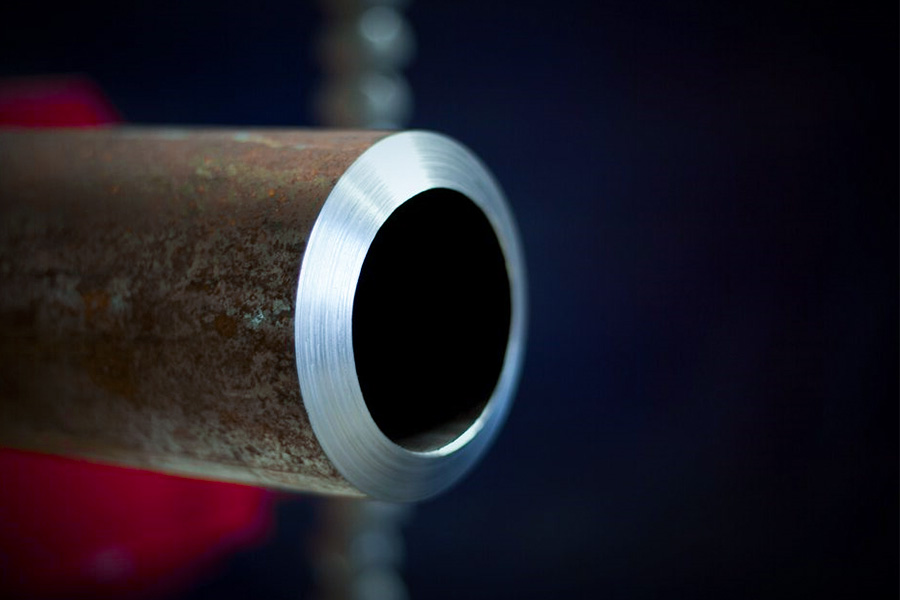

What is pipe beveling?

The “handshake” method of two pipe openings

Imagine: high-pressure steam roars and surges in the thick pipe, and the entire system operates under high temperature and huge pressure. Suddenly – a dull tearing sound comes from the weld! The hot steam bursts out like a beast that breaks free from its restraints, destroying the equipment and threatening safety. The entire production line may be paralyzed for days or even weeks… This is by no means alarmist, but a real nightmare in welding engineering.

And the foreshadowing of this disaster is often buried before the welding gun ignites the spark. The key lies in the seemingly simple “V” or “U” shaped groove at the ends of the two pipes to be connected – the pipe groove. It is the way of “handshake” between pipes and the basis for the molten metal to fully blend and crystallize. A precise and clean groove is the cornerstone that bears huge pressure, ensures long-term sealing, and gives the weld real vitality. Its shape, angle and finish directly determine the strength, toughness and reliability of the weld. Ignoring it is tantamount to burying a time bomb in the core of the high-pressure system.So, what exactly is this critical yet often underestimated “pipe beveling” ?

To save you some time, here are the core conclusions about pipe beveling.

Quick Reference: What is Pipe Beveling at a Glance?

This guide will thoroughly explain the purpose of beveling, detail standard pipe bevel angles, compare various processing methods from angle grinders to professional beveling machines, and finally tell you how to choose the right beveling for your project.

Here’s What You’ll Learn

1. An intuitive analogy: Why are groove welds stronger than flat welds? Just like how woodworkers increase the strength of glue.
2. The core role of grooves: How to achieve “full penetration welding” through V-shaped or U-shaped grooves, so that the weld strength exceeds the parent material itself.
3. Standardized parameters of grooves: The scientific basis for the industry gold standard – 37.5° groove angle, and the key role of root blunt edges and gaps.
4. Comparison of three groove processing methods: From manual angle grinders to CNC automation equipment, how to choose the best solution for your project.
5. Real-life case analysis: How a natural gas pipeline project increased its welding qualification rate from 65% to 99% through precise grooves, avoiding huge losses.
6. Common misunderstandings clarified: Answers to typical questions about groove angle calculation, flat pipe limitations, and the impact of grooves on welding quality.

Now, let’s explore the principles, techniques and practical applications of pipe beveling in depth to lay a solid foundation for your project.

Why trust this guide? A promise from LS Certified Welders and Fabricators

Because we’ve experienced the challenges you may face and turned them into proven experience. At LS, Certified Welders and Fabricators are not titles, but the core of what we do every day. We work on critical welds that need to pass rigorous X-ray inspections, and we know that quality cannot be compromised.

Let me share a real-life example: We once took on a project where the customer’s pipe welds repeatedly failed the flaw detection link, with a pass rate as low as 60%. It was a difficult problem, but after a thorough investigation, we found that the root cause was not the welding technology itself. The problem was at the starting point: the bevels prepared by the customer using a handheld angle grinder. We saw with our own eyes and hands that the bevels were uneven in angle, with rough scratches and irregular bumps on the surface. This unstable foundation makes it difficult for even the best welders to perform. Our solution? Resolutely remove all manually prepared pipe ends and replace them with our automated pipe beveling machine for reprocessing. The results speak for themselves: First pass weld rates jumped from a frustrating 60% to a reassuring 99%. This project taught us, and our customers, that a perfect weld begins with precise, consistent groove preparation.

That experience is the basis for the value of this guide. At LS, we don’t just “cut metal” or “weld pipes.” We understand the subtle but critical differences: a precise 37.5° V-groove and a J-groove with specific blunt edge requirements can make a world of difference in actual welding operations. We understand that a groove is more than just “cutting a bevel”—it’s a carefully constructed “home” for the molten solder. The shape, angle, and finish of this “home” determine whether the molten metal can flow and fill smoothly and evenly, ultimately achieving perfect penetration and a strong bond at the root of the weld. This understanding does not come from textbook theory, but from the practical experience accumulated from countless welds under our welding guns, countless test results under the flaw detector, and countless practical problems like the above cases.

This guide is the practical knowledge condensed from these practical experiences gained with sweat, technology and strict standards. We share it with only one purpose: to help you avoid risks from the beginning and ensure the safety, reliability and highest quality of the project’s welded joints. Believe in LS’s promise, because we practice it every day.

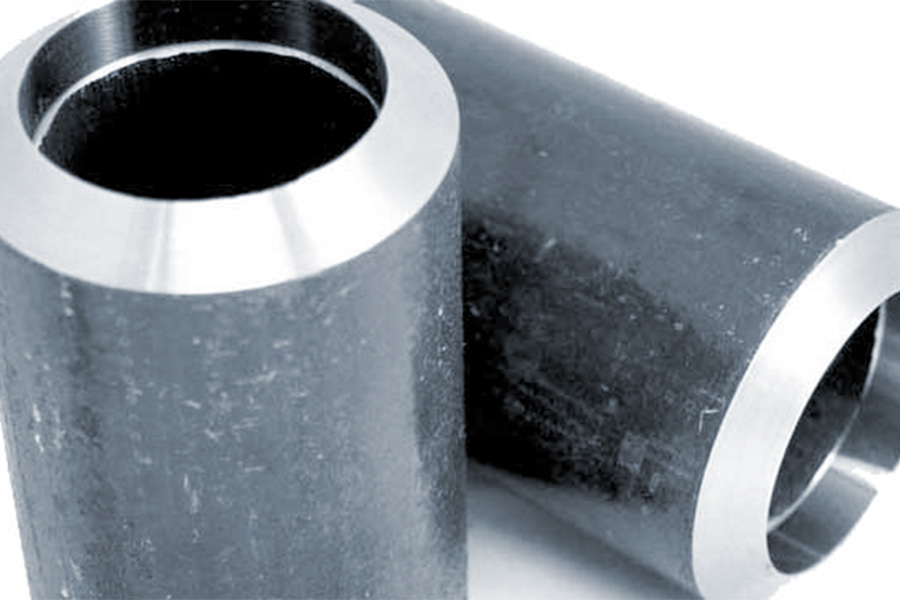

The fundamental purpose of pipe beveling: from “surface contact” to “deep integration”

“What would happen if two flat pipes were welded together?”
This is like trying to glue two flat pieces of glass together – they appear to be touching, but they will break at the touch. Bevel welding is the key design to solve this weakness.

The fundamental purpose of the pipe beveling is to transform the “surface contact” of the material into “deep fusion” by processing the welding edge into a specific shape (such as V-shape, U-shape, etc.), thereby increasing the weld penetration and contact area, and ensuring that the weld joint reaches the same strength as the parent material.

Core analogy:

① Limitations of flat welding

It is like simply gluing the ends of two untreated pieces of wood:

• Only a thin layer of surface bonding, the actual contact area is less than 10%
• Stress is concentrated at the edge of the weld, and a slight bend will cause cracks at the interface
• In the corresponding welding, the heat cannot penetrate the pipe wall, forming a “false weld” hidden danger

② Strengthening principle of pipe beveling welding

It is like the mortise and tenon structure made by carpenters:

• The V-shaped pipe beveling forms a wedge-shaped space of 120°-60° at the joint
• The solder is like an epoxy resin with extremely strong permeability, filling the entire pipe beveling
• After curing, metal crystals that penetrate the cross section are formed, and the contact area is increased by more than 300%

③ Technical implementation mechanism

• The pipe beveling angle accurately controls the penetration depth: 60° V-shaped pipe beveling can achieve full penetration of 6mm thick steel plate
• Multi-layer welding technology: the base weld ensures root fusion, the filling weld is strengthened layer by layer, and the cover weld is sealed and protected
• Application scenario: Nuclear power pipelines require pipe beveling error ≤ 0.5mm, and aerospace welds need to be verified by X-ray flaw detection

This “space for strength” design enables modern welded structures to withstand harsh tests such as 10,000 tons of water pressure and extreme temperature differences in space.

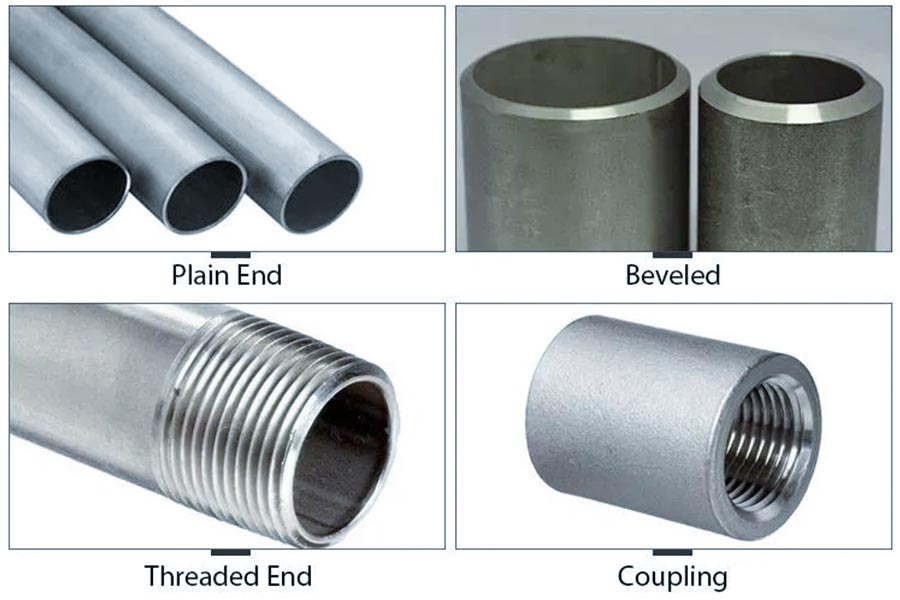

Anatomy of Pipe Beveling: Angles, Types, and Terminology

The most commonly used standard pipe welding groove is the V-bevel, which has a single-side bevel angle of 37.5° and usually allows a tolerance of ±2.5° (i.e. 35° – 40°). The main types of pipe bevels include V-bevel (standard), J-bevel (for thick-walled pipes) and compound bevel (for extremely thick-walled pipes).

1. Standard V-bevel

Bevel Angle: Single-side is usually 37.5° (±2.5°). This angle is widely regarded as the industry’s gold standard because it provides the best balance between providing sufficient welding operating space and effectively controlling the amount of solder filler.

Root Face / Land: When the pipe end is beveled, it is not completely sharpened, but a small flat surface with a width of about 1.6mm (1/16 inch) is retained. This blunt edge is crucial:

Prevent the arc from burning directly through the root of the pipe during welding.

Helps control the gap and penetration of the first weld (root weld).

Root Gap / Root Opening: When welding and assembling, a certain gap is intentionally left between the two pipe ends with V-bevels. This gap allows the solder to fully penetrate the interior of the pipe joint to form the necessary internal weld (root weld).

2. Other common bevel types

J-Bevel:

Mainly used for thicker wall pipes.

Its shape is similar to the letter “J”, usually with a relatively steep or nearly vertical root area, and then transitions to a gentler bevel (sometimes the top angle is less than the standard V-angle).

Main advantages: Compared with the standard V-bevel, the J-bevel design significantly reduces the volume of solder required to be filled, thereby saving welding materials, shortening welding time and reducing overall costs.

Compound Bevel / Combination Bevel:

Mainly used for pipes with extremely thick walls.

This type combines two or more different bevel angles and/or shapes (for example, combining V-shaped, J-shaped or U-shaped elements with different designs on the inside and outside of the tube wall).

Main advantages: Further optimization of the welding process through more complex groove geometry, more precise control of penetration depth, heat input and solder filling amount to meet extremely high standards of welding quality requirements (such as in critical application scenarios such as nuclear power, high pressure and high temperature).

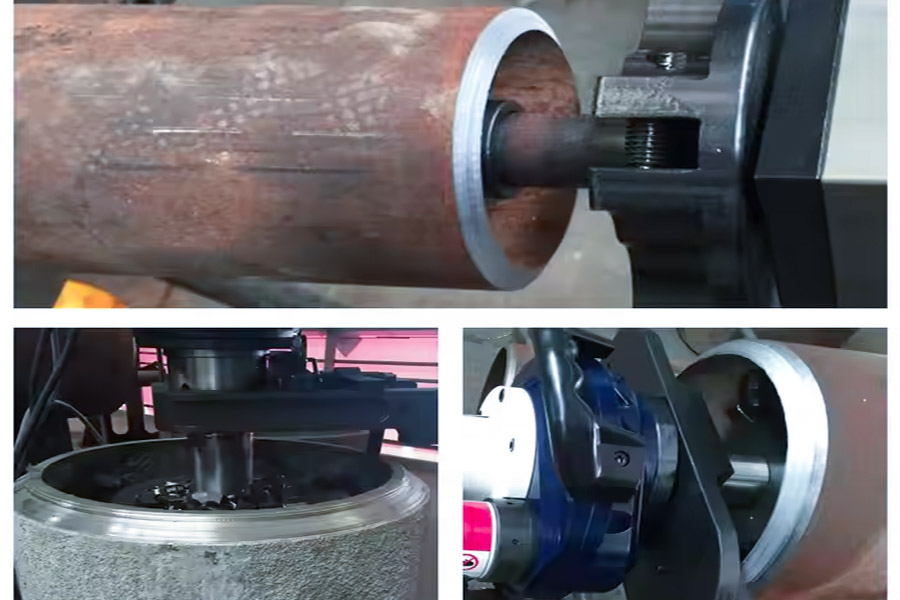

How to Bevel: Three Methods from Manual to Automated

Pipe beveling (grooving) is a critical process in preparation for welding, assembly or deburring. There are three main methods, depending on the accuracy requirements, production volume and budget: using a manual angle grinder, a portable bevel machine or a fixed/CNC bevel machine. Manual angle grinders rely on operator skill to grind and cut; portable bevel machines provide more consistent bevels by clamping the pipe and rotating the tool head; and fixed or CNC machines can achieve the highest accuracy, efficiency and automated processing of complex shapes.

1. Good – Hand Tools

(1) Representative tool: Angle grinder

(2) Operation method:

• Fix the pipe: Clamp the pipe firmly in a vise or special clamp.
• Choose a grinding wheel: Install a grinding wheel appropriate for the metal type (usually a cut-off wheel or a bevel grinding wheel).
• Wear protection: Always wear full personal protective equipment (PPE): face shield/goggles, cut-resistant gloves, ear plugs, dust mask and protective clothing.
• Manual grinding/cutting:

Start the angle grinder, wait for the speed to stabilize, and then contact the grinding wheel with the edge of the pipe end with a steady, controlled force.

Tilt the angle grinder body according to the required bevel angle (commonly 37.5° or 30°) and move slowly and evenly along the circumference of the pipe.

Control the angle and feed speed by visual inspection and experience, and grind repeatedly until the required bevel width, angle and finish are achieved.

Be careful to maintain uniform pressure and movement speed to avoid local overheating or inconsistent cutting depth.

(3) Advantages: The equipment cost is extremely low and very flexible. It can be used in almost any field environment and is suitable for various pipe diameters (limited by the size of the grinding wheel).

(4) Disadvantages:

• Highly dependent on operator skills: The quality of the bevel angle, width, flatness and finish depends almost entirely on the operator’s experience, feel and stability.
• Poor consistency: It is difficult to ensure that the bevel angle is completely consistent on the circumference of the same pipe or between different pipes.
• Unstable surface quality: Burrs, ripples or burn marks are likely to occur, and additional manual finishing may be required.
• Low efficiency: The processing time for a single pipe is long, which is not suitable for mass production.
• High safety risks: There are high risks of grinding wheel breakage, metal debris flying, dust inhalation, noise, and improper reaction force control.

2. Better – Portable beveling machine

(1) Representative tool: Chuck/chain portable pipe beveling machine.

(2) Operation method:

• Selection and installation: Select a chuck or chain clamp of matching size according to the outer diameter of the pipe.
• Clamp the pipe: Clamp the machine firmly to the end of the pipe. Make sure the center of the machine is aligned with the center of the pipe.
• Set the angle: Adjust the angle setting on the tool holder as required (usually with a dial or preset gear, such as 30°, 37.5°, 45°).
• Select the blade: Install a sharp, carbide blade suitable for the pipe material.

Start the process:

Start the motor (electric or pneumatic). The cutter head (usually contains 1-3 blades) begins to rotate around the end of the pipe.

The operator only needs to push the feed handle (or some models automatically feed) evenly and steadily, so that the rotating cutter head gradually cuts into the pipe wall to form a bevel.

The machine is usually designed to complete the beveling process of the entire circumference in one go.

After processing is completed, release the clamp and remove the machine.

(3) Advantages:

• Significantly improved accuracy and consistency: The preset angle and the machine’s own guide structure ensure that the bevel angle is highly consistent throughout the entire circle.
• Better surface finish: The sharp turning blade produces a smoother and flatter cutting surface than grinding with a grinding wheel, with fewer burrs and usually no need for secondary processing.
• Improved efficiency: Much faster than a manual angle grinder, and simpler and more direct operation.
• Relatively safe operation: The tool is enclosed by the machine casing, the risk of splashing is reduced, and the operator’s hands are away from the cutting area.

(4) Disadvantages:

• Still requires manual operation: Manual clamping, starting, feeding and disassembly are required. The operator still needs some training.
• Higher equipment cost: Much more expensive than an angle grinder.
• Limited pipe diameter adaptability: A single machine usually covers a certain range of pipe diameters, and the clamp needs to be replaced to adapt to different pipe diameters.
• Bottlenecks in mass production: Although faster than manual methods, the one-by-one clamping and operation method limits its absolute efficiency in large precast projects.

3. Best – Fixed/CNC Beveling Machines

(1) Representative equipment: Special pipe beveling machines, CNC lathes (with beveling function or powered turret).

(2) Operation method:

Programming/settings:

• Special beveling machines: Enter parameters such as pipe diameter, wall thickness, required bevel angle (single or compound angle), bevel width, etc. on the control panel.
• CNC lathes: Use CAM software or manually enter G code to define the tool path (including feed point, cutting angle, feed speed, and rotation speed). Special beveling tools may be required or standard turning tools may be used for profiling.
• Clamping the workpiece: The pipe is precisely clamped on the machine tool chuck or special fixture to ensure good concentricity and end face positioning. Large systems may be equipped with automatic loading devices.

Automatic processing:

Start the program.

The machine tool spindle drives the pipe to rotate (turning method) or the tool moves around the fixed/rotating pipe (special beveling machine).

The tool (carbide blade, milling cutter or special forming cutter) moves precisely according to the preset program to automatically complete the cutting of the bevel.

The entire process is highly automated, and the operator mainly monitors and loads materials.

(3) Advantages:

• Excellent precision and repeatability: CNC control ensures that the geometric dimensions (angle, width, depth) of each bevel are exactly the same with extremely small tolerances.
• Extremely high efficiency: Automated clamping (optional) and high-speed cutting greatly shorten the processing time of a single piece, which is particularly suitable for large-scale continuous production.
• Complex shape capability: In addition to easily processing standard V-shaped grooves, it can also accurately produce complex contours such as J-shaped grooves, U-shaped grooves, and compound angle grooves (different internal and external bevels).
• Excellent surface quality: Professional cutting technology and stable machine tool rigidity provide the best surface finish.
• Strong integration: It can be integrated with other prefabrication processes such as pipe cutting and marking on a production line.

(4) Applicable scenarios: Pipeline prefabrication plants, critical applications requiring the highest quality and mass production (such as nuclear power, chemical industry, shipbuilding, and pressure vessels).

Selection suggestions:

Occasional, small batches or emergency repairs on site: Manual angle grinders are sufficient, but be sure to pay attention to safety and accept accuracy limitations.

Medium batches, on-site or workshops require better quality and efficiency: Portable bevel machines are the best compromise.

High quality requirements, large-scale production, complex bevels or automated pipe prefabrication lines: Fixed/CNC bevel machines are the only and most efficient choice, and the return on investment is very significant in large-scale production.

Practical case analysis: How a natural gas pipeline project went from “edge of failure” to “first pass”

“In the field of engineering, theory is the navigation chart, and actual practice is the real navigation. Faced with a critical project crisis, how can a seemingly minor process detail – pipeline bevel preparation – become the key to turning the tide? Let us deeply analyze this real natural gas pipeline project case, which proves with ironclad facts: precision is efficiency, precision is safety, and precision is the core of cost control.”

Customer dilemma: High-pressure pipeline project crisis with out-of-control welding failure rate

Project background:

A large energy company is laying a high-pressure natural gas trunk line. The specification requires that 100% of the butt girth welds must pass X-ray non-destructive testing (NDT), which is a key standard for ensuring pipeline safety.

Core dilemma:

The on-site construction team faces severe challenges: Despite the rich experience of welders and qualified materials and processes, the first X-ray inspection pass rate of welds is only 65%. One out of every three welds is unqualified and needs to go through a rework cycle of “cutting → grinding → assembly → re-welding → re-inspection”, triggering a chain reaction:

Material waste: Expensive pipeline sections are cut off and scrapped;

Schedule delay: Rework squeezes out resources for subsequent processes, and delays in critical paths face huge fines;
Cost out of control: Material loss, labor additions, equipment rental extensions and potential fines devour the budget;
Team morale is frustrated: repeated rework causes welders and construction teams to be exhausted.

Impact of the crisis:

Project delivery and corporate business reputation are at risk due to the welding qualification rate problem, like a sword of Damocles hanging overhead, and a systematic solution is urgently needed.

LS’s precise diagnosis and radical solution: Breaking the welding quality crisis

On-site inspection: Locating the root defects
The LS engineering team focused on the preparation of the pipe port bevel and found three fatal problems:

Out of control of the bevel angle: The handheld angle grinder caused the angle to fluctuate between 35°-42°, far exceeding the ±2.5° tolerance, causing abnormal flow of the molten pool and poor root fusion;
Uneven blunt edge thickness: Manual grinding caused the blunt edge thickness to fluctuate between 1.0mm-2.0mm or more. Too thick resulted in unfused and too thin resulted in burn-through;
Surface roughness defects: The scratches and burrs left by the grinding wheel easily entrained slag and air, causing slag inclusions or pores.

Conclusion: The main cause of welding failure is not the welder’s technology or parameters, but the out-of-control quality of the upstream bevel preparation.

LS solution: mechanization replaces manual grinding

Introducing LS portable pipe bevel machine, core advantages:

Automatic centering clamping: the equipment is like a “steel octopus” holding the pipe end tightly to ensure the stability of the processing base;
Precision cold cutting process: carbide cutter replaces grinding wheel, one-click operation to complete bevel processing;
Quality standard breakthrough:
Bevel angle 37.5°±0.5° (in line with ASME/API standards);
Blunt edge thickness 1.6mm±0.1mm, to ensure root penetration;
Surface roughness Ra≤3.2μm, reducing defects and hidden dangers;
Efficiency improvement: single pipe end processing only takes 90 seconds, which is faster and more stable than manual grinding.

Brilliant results: 99% pass rate breaks the project dilemma

Quality leap:

After adopting LS bevel machine and standardized process, the first pass rate of X-ray inspection of the first batch of 50 welds soared to more than 99%, with only a few minor defects (below the rework standard), achieving “one-time pass”.

Quantified benefits:

Rework rate plummeted to 95%+: completely breaking the vicious cycle of rework;
Schedule reversal: recovering the delayed construction period and avoiding millions of dollars in delay penalties;
Cost savings: Pipeline/welding material waste was sharply reduced, labor efficiency was improved, and shielding gas and consumables consumption was significantly reduced.

Long-term value:

Safety guarantee: High-quality welds lay the foundation for decades of safe operation of energy pipelines, reducing leakage risks and maintenance costs;
Customer trust: Energy companies are full of confidence in project delivery and quality, and highly recognize LS solutions.

FAQ – Answers to all your questions about pipeline preparation

1. What does a “pipe beveler” do?

Pipe bevelers are workers who are responsible for beveling the ends of pipes. They use manual or mechanical tools (such as bevel machines or grinders) to cut the edges of pipes to a specific angle in preparation for subsequent welding; the core of their work is to ensure that a suitable bevel is formed at the pipe interface, which helps improve welding quality and efficiency while reducing the risk of welding defects such as lack of fusion or porosity.

2. Is there a calculation formula for the pipe bevel angle?

Yes, the pipe bevel angle is usually calculated based on the pipe wall thickness and welding specifications (such as ASME B31.3 or API standards). The common formula is angle = wall thickness × constant (for example, for carbon steel pipes, the standard angle is often 30-37.5 degrees), but the specific value needs to be adjusted according to the material type, welding method and design requirements to ensure that the weld has sufficient penetration and strength to avoid welding failure due to improper angles.

3. What is a flat pipe?

Flat pipe refers to pipes with flat cuts without bevel treatment at the end. They are often used in low-pressure or non-critical systems (such as drain pipes or mechanical connections). Their design simplifies the installation process, but they are prone to weak welds when welding. Therefore, they are usually used in scenarios such as flange connections or threaded connections, rather than high-strength welding applications.

4. How does the bevel help welding?

The bevel creates a sloped interface for the end of the pipe, significantly increasing the area of ​​the weld fusion zone, thereby promoting more uniform penetration and filling of the solder, and improving the integrity and strength of the weld; this reduces the risk of stress concentration, improves heat distribution to prevent deformation, and allows the use of multi-layer welding technology, ultimately achieving a more reliable and durable pipe connection.

Conclusion

Pipe beveling is not just a random cut, it is the core process that determines the quality of welding and the reliability of the pipeline system. A truly qualified bevel must have precise angle dimensions, flawless clean surface and high consistency. These three points are indispensable. Together, they ensure the best fusion effect, structural strength and the formation of defect-free welds during welding, which is the cornerstone of the safety and performance of the entire project.

Ignoring the quality of pipeline preparation, especially the quality of bevels, will directly endanger the safety, schedule and cost of your entire project (may cause leaks, failures, rework and even accidents). Don’t let the negligence of the first step ruin subsequent efforts. Contact our expert team now, starting from the key starting point of creating the “perfect bevel”, to provide you with a full range of professional services covering pipeline manufacturing and welding, laying the most solid and reliable foundation for the success of the project.
