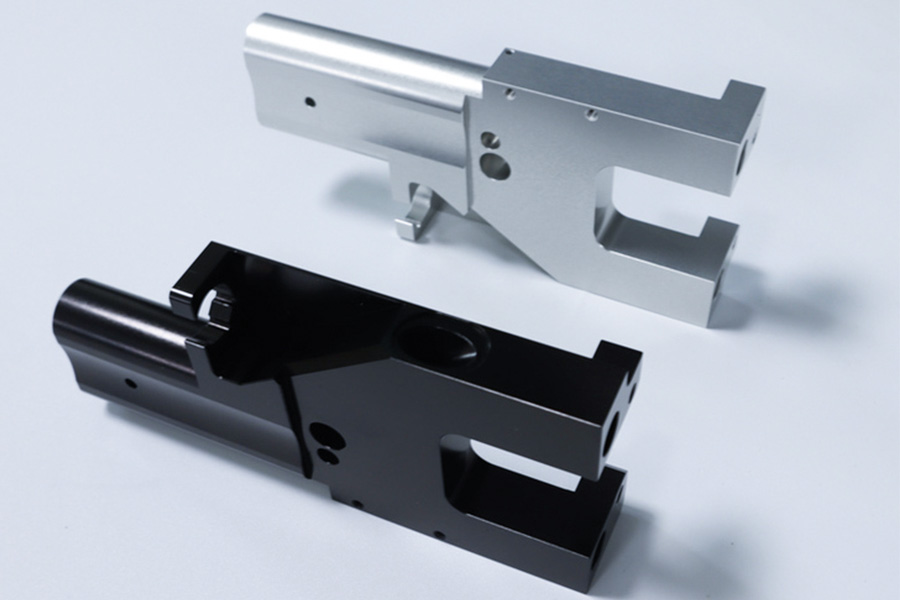

What is the difference between black anodized paint and black anodizing?

Two kinds of “black”, two completely different fates

Imagine: you hold a brand new aluminum part in your hand, with a smooth surface reflecting a cold metallic luster. You need to give it a deep, professional matte black appearance to match design requirements or enhance the texture. There are two seemingly different options in front of you: one method is low-cost and easy to operate; the other is slightly more expensive and the process is relatively complicated. You may prefer the former, after all, “it all looks black.”

However, the gears of fate began to turn quietly a few months later. The proud black surface of the part that chose the low-cost solution gradually showed frustrating signs – fine scratches began to spread, and even unpleasant partial peeling appeared at the corners, and the original matte black became mottled and cheap. On the other hand, the black surface of the other part that used the “slightly higher” cost solution is still as solid as before, and the matte texture is calm and restrained, as if time has stopped on it.

This is by no means an accidental deviation of luck, but a destined outcome of the deep and fundamental differences between the two technical routes of “coating” and “conversion”.

When you are faced with the demand of “making aluminum black“, why do black anodized paint and black anodizing, which have similar names and the same goals, ultimately present such a huge gap in durability, texture and cost? What is the essential difference between them?

Black Anodized vs. Black Anodized Paint Quick Facts Chart

This guide will thoroughly explain the fundamental differences between anodizing and painting, delve into the three types of anodizing, answer the difference between ‘black oxide’ and ‘black anodizing’, and ultimately tell you how to make the right choice for your project.”

Here’s What You’ll Learn

• A 60-second decision framework: Quickly determine whether to choose anodizing or “imitation paint” for your project.
• Three-minute chemistry lesson: Revealing how anodizing “grows” a protective shell on the aluminum surface instead of “painting” it.
• 5 performance life-and-death battles: Wear resistance, adhesion, precision, heat dissipation, cost – a comprehensive comparison of who wins and who loses.
• Breaking through material limitations: Why can’t steel be anodized? Alternative solutions are revealed.
• Real case analysis: From LS machining workshop – how choosing the wrong surface treatment leads to premature scrapping of injection molds.
• Expert FAQ: Overcome the most confusing issues (fading? Black oxidation? Aluminum itself?).
• Conclusion and action: Lock in the right “black” surface solution based on your core needs.

Now, let’s clear the market fog and explore the essential differences between these two “black” processes to make a wise choice for your key components.

Why should you trust this guide? Practical experience from LS mold and material experts

At LS, we specialize in custom injection molds and are well aware of the importance of aluminum prototype molds for rapid customer verification. Ensuring their life and part quality is our core responsibility, which makes us rely heavily on hard anodizing technology.

We have encountered many times that customers require “black spray painting” of prototype molds to reduce costs. Based on a deep understanding of the injection molding conditions (high temperature melt, mechanical friction), we must point out its major risks: the spray paint layer is very easy to peel off, contaminating the entire batch of plastic parts, causing unacceptable defects and losses.

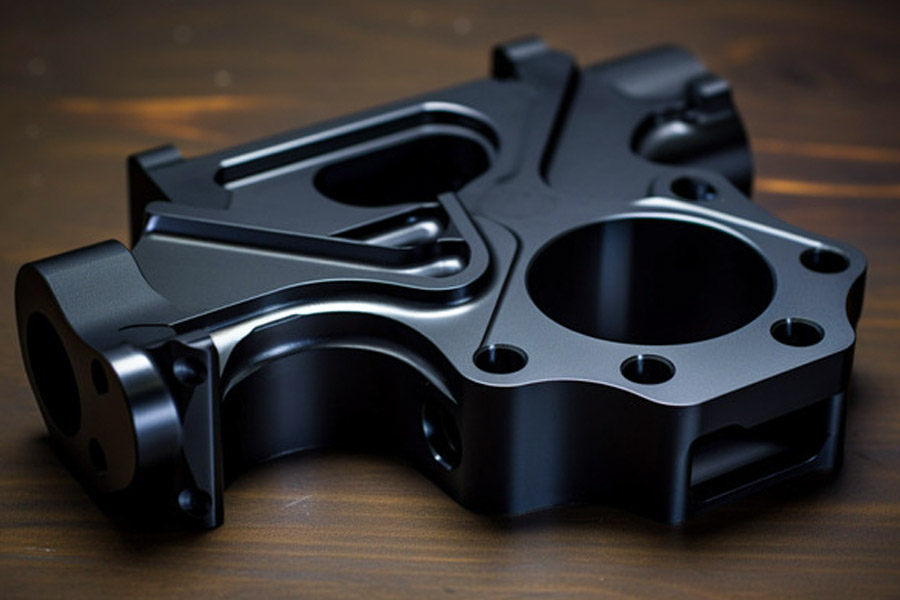

Therefore, we insist on recommending hard anodizing. This is not a simple coloring: it grows a dense α-Al₂O₃ ceramic layer (corundum) in situ on the surface of the aluminum substrate to achieve metallurgical bonding. Its core engineering value lies in:

Ultra-high hardness (HV 400-500+): significantly improves wear resistance and resists plastic (especially glass fiber) erosion.

Excellent wear resistance: several to dozens of times that of the substrate, greatly extending the mold life and the amount of parts that can be produced.

Absolute bonding: eliminate the risk of peeling contamination and ensure the purity of parts.

Excellent heat resistance and easy cleaning: conducive to dimensional stability and demolding maintenance.

Every recommendation in this guide is based on our experience in design, manufacturing, production tracking and failure analysis accumulated in hundreds of aluminum prototype projects. We recommend hard anodizing because it is the best surface strengthening solution verified by engineering practice, protecting your mold investment and ensuring consistent part quality. Trusting this guide means trusting LS to protect your project success with professional knowledge and practical experience.

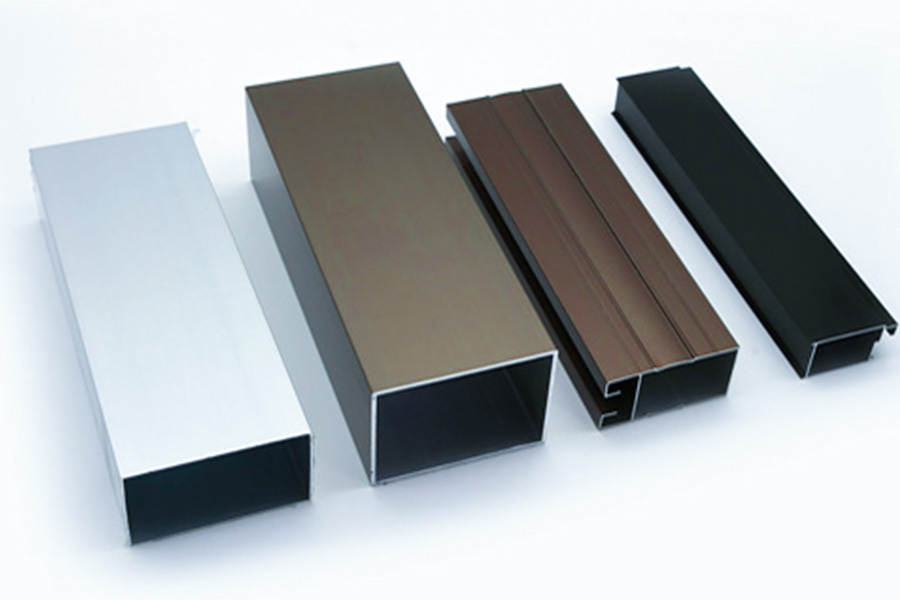

What is Black Anodizing?

Anodizing is not about ‘adding’ a layer of something, but about making the aluminum ‘grow’ a solid protective shell.

At LS, the core of the True Black Anodizing we implement is to grow a dense and uniform aluminum oxide (Al2O₃) layer in situ on the aluminum alloy substrate through electrochemical conversion, and achieve deep and lasting black coloring. Its essence is not a simple coating adhesion, but a deep transformation and optimization of the aluminum substrate surface.

Our process strictly follows the following key steps:

Precision pretreatment: First, the workpiece is thoroughly degreased, pickled and neutralized to ensure that the surface is absolutely clean and free of impurities, which is the basis for obtaining a uniform oxide layer.

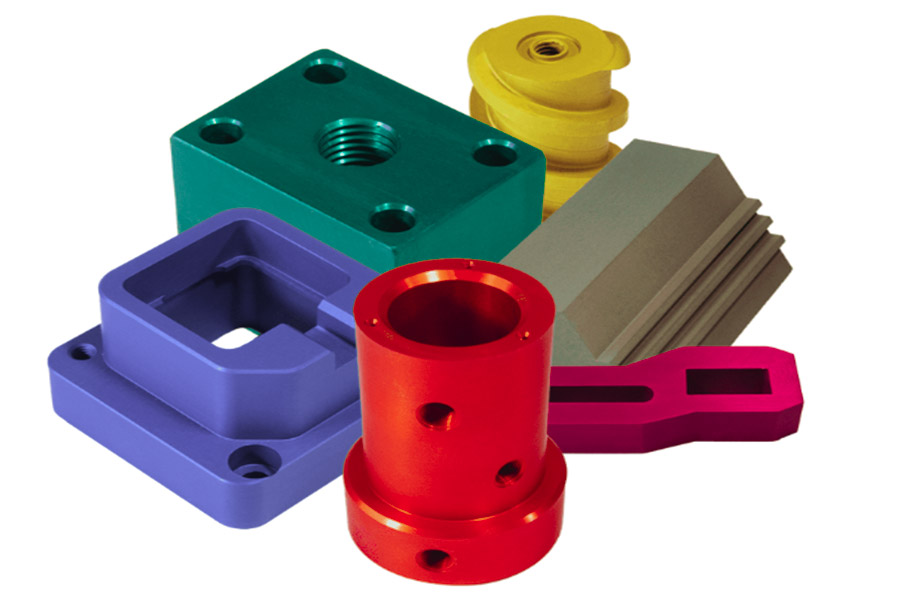

Anodizing: The workpiece is used as an anode and immersed in a sulfuric acid electrolyte with strictly controlled temperature and concentration. When direct current is applied, an oxidation reaction occurs on the aluminum surface, and an Al2O₃ layer with a highly ordered, vertical microporous structure is grown in situ. The thickness of this layer (usually 5-25μm) and the microporous structure directly determine the final performance and dyeing effect.

Black dyeing: The surface with active micropores after oxidation is then immersed in a specifically formulated organic black dye tank. The dye molecules penetrate deeply and evenly fill the microporous network through physical adsorption and capillary action. The selection of dyes and process control are crucial to ensure the required pure black color and color fastness.

High temperature sealing: The micropores must be completely sealed after dyeing. We use high temperature hydration sealing or optimized nickel salt sealing process to hydrate and expand the oxide layer, or deposit compounds to permanently seal the micropore openings. This step firmly locks the dye inside the oxide layer and greatly improves its corrosion resistance, wear resistance and weather resistance.

Final characteristics: The black color of the workpiece treated by this process is formed by the physical locking of the dye molecules in the microporous structure of the converted oxide layer. The black color is integrated with the substrate (not a surface coating), presenting a deep and uniform color, while giving the surface excellent hardness, wear resistance, corrosion resistance and excellent durability. It is one of the preferred surface treatment solutions for LS’s high-end aluminum parts.

LS’s engineering practice conclusion

In mold surface treatment, we only define black anodizing as a technology that forms a nanoporous structure through controllable electrochemical conversion and realizes permanent sealing of dye molecules. Its core advantages are:

① Structural integrity: the color layer and the protective layer are formed in one piece, without the risk of interface failure;
② Designability: the film thickness and porosity are precisely controlled by voltage/temperature/time;
③ Functional expansion: provides a base for subsequent lubrication (PTFE filling) and wear resistance (composite plating).
In LS, this process is applied to scenes such as precision mold identification and anti-glare cavity. It is not a decorative treatment, but a key engineering means to ensure the service reliability of the mold.

What is Black Anodized Paint?

As the person in charge of surface treatment technology at LS, I must clearly point out that “black anodized paint” is a technically misleading term in marketing. Its essence has nothing to do with the anodizing process. In fact, it is a specially designed coating system that imitates the appearance of anodizing. The following is an analysis from the essence of the technology:

1. Differences in the essence of the process

Anodizing: The aluminum oxide layer is grown in situ on the aluminum substrate through electrochemical conversion (metallurgically bonded to the substrate), and the microporous structure achieves molecular-level penetration and permanent lock-in of the dye.

“Anodized paint”: It is essentially an organic coating (solvent-based spray paint or powder coating), which is covered on the surface of the substrate by physical spraying and relies on physical adsorption (non-chemical bonding).

2. Core process steps

Substrate pretreatment: Simple cleaning (such as sandblasting or phosphating), only to improve the adhesion of the coating, and no oxide layer is generated.

Paint application:

Formula design: Add matting agent, metal powder, etc. to simulate the matte/satin texture and metallic color of anodizing.

Coating method: spraying or electrostatic powder spraying to form an outer film (thickness is usually >30μm).

Curing molding: relying on solvent evaporation or thermal cross-linking reaction to form a film, no microporous structure, the dye is directly mixed in the resin (not later penetration).

3. Performance and structural defects

When it comes to choosing a black finish for your metal parts, especially aluminum, black anodizing and black spray paint that simulates the look of anodizing are the two main options. They may look similar, but there are significant differences in performance, cost, and suitability. This guide will provide an in-depth comparison of key dimensions to help you make an informed choice.

Core Comparison Dimensions
