What’s Different Taper Bit vs Saddle Bit？

This guide will thoroughly clarify the differences between these two tools, take an in-depth look at the uses of each, and use a real-world manufacturing example to show you why understanding the ‘tube opening’ is more important than you think when working with bent tube parts.

Here’s What You’ll Learn

1. A 60-second decision guide: Quickly determine whether to use a tapered drill bit or a saddle drill bit for your processing task, and avoid the danger of choosing the wrong tool.
2. In-depth analysis of the core differences: Reveal the three fundamental differences between the two drill bits in terms of design purpose, working principle and final effect – why they should never be used interchangeably.
3. The key three steps to create a perfect pipe joint: Master the professional process of using a saddle drill bit (or equivalent process) to achieve high-strength and beautiful welded joints (especially focusing on the order of bending and opening).
4. Practical case: The “seamless” revolution of industrial safety handrails: In-depth analysis of a 50-meter industrial platform handrail project to see how precision saddle openings can increase installation efficiency by 50% and pass rigorous strength tests.
5. Expert Q&A: Clarify the most common confusions and misunderstandings: Answer key questions such as “Can a tapered drill bit be used to connect pipes?” and “What other options are there besides saddle drill bits?” to avoid potential risks.

Now, let’s clear the fog and thoroughly understand these two key tools with similar names but very different uses, so that we can become experts in choosing and applying them.

Why trust this guide? Practical wisdom from LS pipe bending and fabrication workshops

I am Longsheng, an engineer with 15 years of experience in the LS bending workshop. We know that customers need more than just bent parts with set angles and radii. We deliver complete components that can be directly welded or assembled. This means that for each bend, we must ensure that it fits perfectly into the final structure – considering assembly gaps, welding space, and avoiding any “unreasonable” deviations. This is the core of LS: looking at each bending process from the perspective of overall assembly.

This persistence comes from lessons learned from blood. For example, 90% of the strength of industrial safety handrails depends on the welded joints! We have seen too many failures: the bend itself is qualified, but because the joint treatment or the shape of the bend is not optimized for welding, the weld is thick, ugly, and has internal defects, and the strength is completely lost. This not only requires rework, but also buries safety hazards.

Therefore, the value of LS is far more than “online bending service“. Our core is to transform the practical experience of countless times integrating independent bends into solid, reliable, and beautiful products into your guarantee. We know:

• What bending sequence can reduce stress and avoid welding deformation;
• How critical it is to reserve appropriate grooves and gaps in the design stage;
• How to optimize parameters according to materials and applications to create the best conditions for welding or other connections.

This guide is not just a theory, it is tempered from countless pipes, welding sparks, successes and lessons in the workshop. Sharing it means that you can stand on our shoulders, avoid the pits you have stepped on, and directly obtain safe and reliable results. Because for us, delivering a perfect pipe bending component is a solid commitment to the success of your final product.

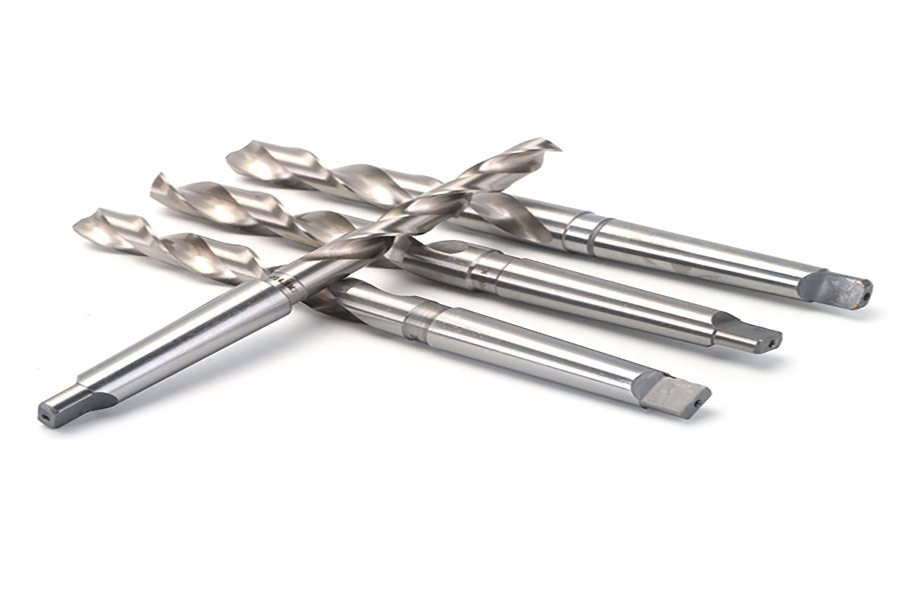

Tool Analysis #1: Tapered Bit – Hole Finisher

The core task of a tapered drill is not to open a new hole, but to modify an existing hole.

Working principle and purpose

Core mechanism
The tapered drill acts on the edge of the pre-drilled hole by means of a rotary cutting method with its unique tapered cutting edge (usually at an angle of 60°, 82° or 90°). The drill gradually enlarges the hole, transforming the original cylindrical hole into a smooth conical concave surface. This process is gradual and the depth of cut is controlled by the operator.

Core purpose

• Form conversion: Convert a straight hole into a tapered surface to meet specific assembly requirements.
• Precision improvement: Provide a precise and matching “seat” for fasteners or dowel pins.
• Surface optimization: Eliminate burrs and improve workpiece safety and aesthetics.

Detailed explanation of key application scenarios

1.Countersinking:

• Requirement: When using flat head screws and countersunk rivets, the head must be completely sunk below the surface of the workpiece to form a flat appearance.
• Function: The conical drill cuts a conical groove (countersink) that matches the head of the screw/rivet hole, providing a perfect “seat”.
• Result: The fastener head is flush with the workpiece surface to avoid protrusions, ensuring safety, beauty and subsequent processes (such as painting and sliding).

2.Deburring:

• Requirement: After drilling, sharp burrs and sharp edges often remain on the edge of the hole, which can easily scratch the operator or affect the assembly accuracy.
• Function: The tapered drill lightly sweeps the edge of the hole, and its tapered cutting edge can remove burrs efficiently and smoothly.
• Result: Obtain a smooth and safe hole, improve the quality of the workpiece, and reduce subsequent processing steps.

3.Tapered Pin Holes:

• Requirement: Tapered pins are often used in precision machinery (such as molds and fixtures) for high-precision positioning and alignment. The pin and the hole must have an excellent tapered surface fit.
• Function: The tapered drill bit finely trims a precise tapered hole wall that is exactly the same as the pin taper in the pre-drilled hole (with a diameter slightly smaller than the small end of the pin).
• Result: Achieve a gap-free fit between the tapered pin and the hole wall, providing strong positioning force and self-release during disassembly.

Key Differences from Taper Taps – Clearing Up Confusion

This is a very confusing concept, the essential difference lies in the functional objectives and processing results:

Key clarification points:

• The “Taper” of a taper tap refers to the taper-shaped front end (the height of the cutting teeth gradually increases), which is to facilitate the taper to be smoothly introduced into the pre-drilled hole and gradually start cutting the thread, reducing the difficulty and risk of breakage in the initial tapping. The threaded hole it finally processes is usually straight-walled (unless it is a special taper thread).
• The “Taper” of a tapered drill refers to the fact that the overall cutting edge shape of the drill is tapered, and the processing result is directly a tapered hole or hole wall.

To summarize the differences:

A tapered drill creates a tapered surface (Shape), and a tapered tap taps a thread (Thread). Although both have “Taper” in their names, their functions are very different. The former changes the shape of the hole, and the latter creates an internal thread.

The tapered drill is an indispensable “finisher” in machining, specializing in optimizing the shape of holes. Understanding its core applications of countersinking, deburring, and taper pin holes, and clearly distinguishing its functional boundaries from tapered taps, is the key to correctly selecting and using this tool. It ensures that the hole not only “exists”, but also perfectly “fits” its final mission.

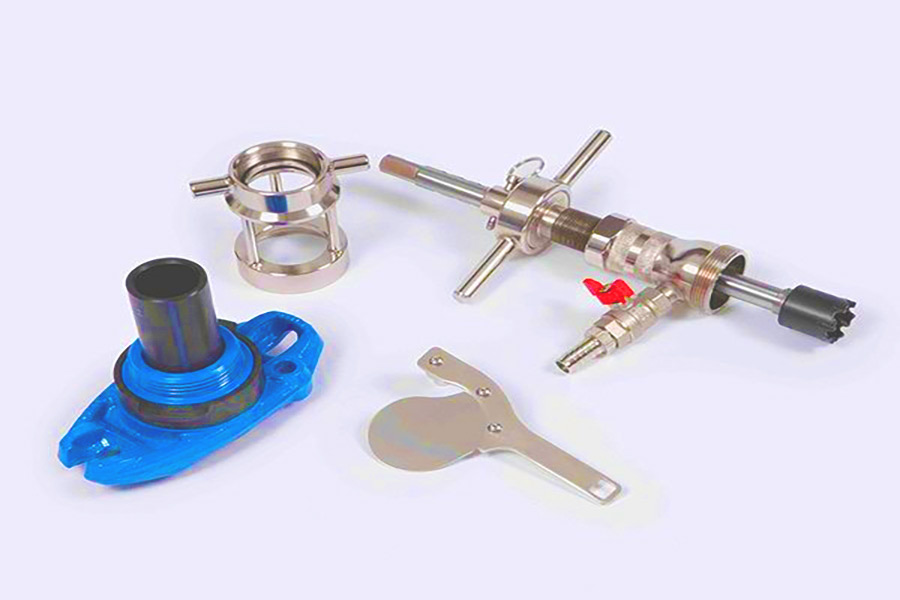

Tool Analysis #2: Saddle Bit – The Tailor of Tubes

The Saddle Bit (more generally known as a Tube Notcher) is the secret weapon of all tube frame builders.

How it works and what it does

Imagine you need to connect two metal pipes together, not simply end-to-end flat welding, but to make the side of one pipe (main pipe) fit perfectly with the end face of the other pipe (branch pipe) to form a T-shaped, Y-shaped or any angle connection. This is one of the most common and challenging joints in pipe frame construction – the intersecting joint.

• Core problem: The end of the branch pipe needs to accurately match the outer arc surface of the main pipe to achieve close contact. Simply cutting a flat surface or roughly grinding will leave an unsightly gap of varying sizes between the two pipes.
• Saddle drill bit solution: The saddle drill bit is essentially a specially shaped hole saw or end mill. Its cutting edge profile is designed to match the outer diameter of the target pipe (main pipe). When you mount it on a drill press, milling machine or a dedicated pipe opener fixture and drive it to rotate:

1. Positioning: The branch pipe is firmly fixed, and the saddle drill bit is precisely aligned with the position that needs to be cut at the end of the branch pipe (that is, the area that will contact the main pipe in the future).
2. Cutting and forming: The rotating drill bit feeds downward or horizontally, and its special cutting edge will cut a perfect concave surface on the end face of the branch pipe like a precise mold. The radius of the arc of this surface is consistent with the outer diameter radius of the main pipe.
3. Forming a “saddle”: After cutting, the end face of the branch pipe is no longer flat, but a concave surface that is highly consistent with the outer diameter of the main pipe. The shape is similar to a saddle – low in the middle and high on both sides. This “saddle” can just “sit” steadily on the arc surface of the main pipe.

• Core purpose: The only and core purpose of the saddle drill is to efficiently and accurately process a contour that fully matches the outer circle of the main pipe at the end of the branch pipe that needs to be connected, providing a nearly perfect basic matching surface with the minimum gap for subsequent welding.

Application Scenarios

Saddle drills are the cornerstone tool for high-strength and beautiful pipe connections, and are widely used in any field where round pipes need to be connected at angles:

1. Bicycle/Motorcycle Frame Manufacturing: This is the most classic application. The frame is welded from a large number of pipes at different angles (upper tube, lower tube, seat tube, rear fork, etc.). Saddle drills ensure the precise fit of all joints (such as the connection between the seat tube and the upper/lower tube, and the connection between the rear fork and the seat tube), and are an indispensable tool for manufacturing lightweight, strong and reliable frames.
2. Roll cages and safety guardrails: Whether it is a racing roll cage or an industrial safety guardrail, its structural strength is crucial. The intersecting joints processed by the saddle drill provide the largest welding contact area, significantly improve the node strength, and better absorb and transfer energy in a collision.
3. Railings and handrails: Stair handrails, balcony railings, platform guardrails, etc. often require the connection of columns (branch pipes) to beams (main pipes). The joints processed by the saddle drill bit are not only strong, but also smooth and smooth in appearance after welding, which greatly reduces the workload of later grinding and polishing, and improves the overall aesthetics and professionalism.
4. Any structure that requires T-shaped or Y-shaped pipe connections: This includes:

• Customized furniture (metal frames)
• Display racks
• Small building structures (pavilions, canopy frames)
• Agricultural machinery frames
• Experimental equipment brackets
• Art installations
• Ship/RV frames
• In short, saddle drills can be used wherever round pipe angle connections are involved and strength and quality are pursued.

Why is it so important?

In tubular structure manufacturing, joints are life. The importance of the saddle drill is directly reflected in the profound impact it creates on the quality of the weld and the performance of the final product:

Maximize weld area and strength:

• Perfect fit is key: The larger the contact area between the two tubes and the smaller the gap, the more area the molten metal can penetrate and bond when welding.
• Uniform stress: A perfect fit allows the welding heat to be evenly distributed across the entire joint area, and the resulting weld can more effectively transfer loads from one tube to the other.
• Significantly enhance structural integrity: Compared with joints with large gaps or only partial contact, the joint weld processed by the saddle drill bit is longer and has better penetration, which greatly improves the strength, stiffness and fatigue resistance of the connection node. This is crucial for structures that are subject to dynamic loads (such as frames, roll cages) or safety-critical structures (such as guardrails).

Reduce filler (solder/wire) and labor time:

• Eliminate “pits”: If the pipe end is cut flat or roughly formed, a large gap will inevitably be formed when it contacts the main pipe. The welder needs to use a lot of solder to fill these “pits”, which not only wastes expensive welding materials (wire, electrode, shielding gas).
• Improve efficiency: Reduced filler means faster welding speed, more concentrated and controllable heat input (reduced risk of deformation), and significantly shortened welding time.
• Reduce costs: Savings in welding materials and labor time directly translate into lower production costs.

Improve aesthetics and professionalism:

• Clean starting point: The perfect “saddle” formation provides an ideal starting point for welding. The weld pool is easier to control and can form a smoother and more uniform weld shape.
• Minimize post-processing: Due to the good initial fit, the amount of excess solder that needs to be polished off after welding and the amount of work to fill uneven areas is greatly reduced.
• Professional Quality Appearance: The end result is smooth transitions in joint areas, clean and even welds, and the entire structure looks more refined, stronger, and more professional. This high-quality appearance speaks for itself and is especially important for custom frames, high-end railings, or display structures.

The saddle drill (pipe opener) is more than just a punching tool. It is the core process equipment for achieving high-precision, high-strength, high-efficiency, and high-aesthetic angle connection between pipes. It solves the most critical matching problem in the manufacture of pipe joints, and transforms the traditional process that relies on manual grinding, which is laborious and difficult to ensure precision, into fast, accurate, and repeatable mechanical processing. For pipe frame manufacturers who pursue excellent quality, it is indeed an indispensable “secret weapon” and a “pipe tailor” that ensures reliable structural performance, efficient process, and beautiful finished products. In the field of pipe connection, it represents the triple guarantee of precision,efficiency, and strength.

Practical case analysis: Customizing “seamless connection” safety handrails for industrial platforms

Challenges faced by customers:

We encountered a modern warehouse that needed to install a safety handrail system with a total length of more than 50 meters for its second-floor work platform. The core difficulties are:

• Strength requirements: OSHA side thrust standards must be strictly met to ensure worker safety.
• Aesthetic requirements: As part of a modern facility, customers reject rough and bloated welds and require a neat appearance.
• Efficiency and cost: The project schedule is tight, and the customer is comparing the prices of pipe bending processing from multiple sources to seek the most cost-effective overall solution. The handrail needs to be bent 90 degrees multiple times along the edge of the platform and supported by columns every 1.5 meters. The processing of the connection points becomes the key.

LS’s core solution: Beyond a single bend, providing a prefabricated “system”

After in-depth analysis, we realized that what customers really need is not a simple superposition of a “bend” or “column”, but a prefabricated, precise, easy-to-install, and strong and beautiful overall handrail system. The key to success lies in how to perfectly handle the connection points between dozens of handrail tubes and columns. Our solution focuses on this:

• Precision CNC tube bending: All horizontal handrail tubes with 90-degree bends are manufactured using high-precision CNC tube bending machines to ensure accurate dimensions and smooth lines, laying the foundation for the system.
• Industrial-grade saddle opening process: This is our core advantage. Instead of simply cutting the end of the column, we use a professional saddle drill (tube opener) to precisely machine a concave “saddle mouth” on the top of each column that is exactly the same as the outer diameter of the horizontal handrail tube. This ensures a perfect fit at the connection point.
• Prefabricated kit delivery: All columns and handrail tubes that have been precisely bent and opened are delivered to the customer’s installation team as a complete, clearly marked “ready-to-install kit (Kit)”.

Significant results for customers:

• Installation efficiency leap: The on-site team reported that all joints were perfectly prefabricated, without any on-site cutting, trimming or laborious adjustment. Welding operations became extremely simple and fast, and the overall installation welding time was shortened by an astonishing 50%, greatly saving customers’ labor costs.
• Strength and safety far exceed standards: Thanks to the large and precise welding contact surface provided by the saddle mouth, the welds are uniform and firm. The final strength test results were 30% higher than the stringent OSHA standards, and passed the acceptance smoothly in one go.
• The best overall value: Although our initial pipe bending quotation may not be the lowest in the market, due to the significant savings in installation costs, zero rework risk, and the high-quality, high-reliability products presented in the end, customers highly recognize that our solution has the highest overall comprehensive value.

LS’s core revelation:

This case vividly illustrates that when choosing a manufacturing partner, you should not only focus on the unit price of a single process (such as bending a pipe). Professional manufacturers (such as LS) will focus on the full life cycle cost of the project. We know that wise investment in early processes (such as investing in precise saddle openings) will bring far more efficiency and cost savings in subsequent assembly and welding links, and ultimately deliver a safer, more beautiful and more reliable product. This is the real value.

FAQ – Answers to your more questions about tube processing

1. Can I use a tapered drill bit to connect pipes?

Absolutely not. Using a tapered drill bit to drill holes at the end of a column to connect horizontal pipes will produce extremely dangerous joints. The result can only be an extremely unstable “point contact” or “line contact” instead of the required stable surface contact. This tiny contact area will be subjected to huge stress concentration, far exceeding the material’s bearing capacity. After welding, the stress will be highly concentrated in the weld area, which is very likely to cause fatigue cracking or even instant failure of the weld, posing a serious safety hazard. Be sure to use special tools (such as saddle drill bits) or methods to ensure that the connection surface has sufficient and uniform contact area to disperse stress.

2. In addition to saddle drill bits, are there other ways to make pipe openings?

Yes, there are many alternative methods. In industrial mass production environments, hole saws with precision fixture positioning are often used for cutting to ensure roundness and position accuracy; vertical milling machines with forming milling cutters can process high-quality, complex-shaped openings; the most efficient is the laser tube cutting machine, which can be programmed to complete high-precision, arbitrary-shaped cutting, especially suitable for mass production. For DIY enthusiasts or small batch processing, a hole saw with a special positioning fixture is usually the most cost-effective choice. It can significantly reduce the cost and technical threshold while ensuring a certain degree of accuracy, and is a practical alternative to saddle drill bits.

3. Should I bend the pipe first or open it first?

The order of selection depends on the complexity of the joint and the accuracy requirements. For simple T-joints, it is usually recommended to accurately open the main pipe in a straight state, and then weld the branch pipe, which is easy to operate and easy to position. However, for structures with complex spatial angles (such as bicycle racks and special-shaped frames), the best practice is to bend the main pipe to the final shape and position of the design first. After the main pipe is fixed, the connection point of the branch pipe is accurately measured and located according to its actual spatial curve and angle for opening. This “bend first and open later” method can compensate for the slight deformation and angle deviation during the bending process to the greatest extent, ensuring that the branch pipe opening and the main pipe surface are perfectly matched, avoiding assembly difficulties or strength reduction due to cumulative errors.

Conclusion

The core difference between a taper drill and a saddle drill is their application scenarios: the former is used for finishing holes, while the latter is designed for pipe connection openings. In the field of structural manufacturing, a deep understanding and correct application of saddle drills (or their equivalent opening processes) is the key cornerstone to ensure joint strength and project success. This marks the leap of manufacturers from a single “parts thinking” to a global “system thinking”.

Does your next project involve complex pipe bending and connection? Don’t let weak joints ruin perfect pipe bending results. LS not only provides high-precision pipe bending parts, but also is committed to creating a complete, forward-looking manufacturing solution for you that considers subsequent assembly. Upload your design now, experience our professional online pipe bending service, and get an accurate quote that truly reflects comprehensive value!
