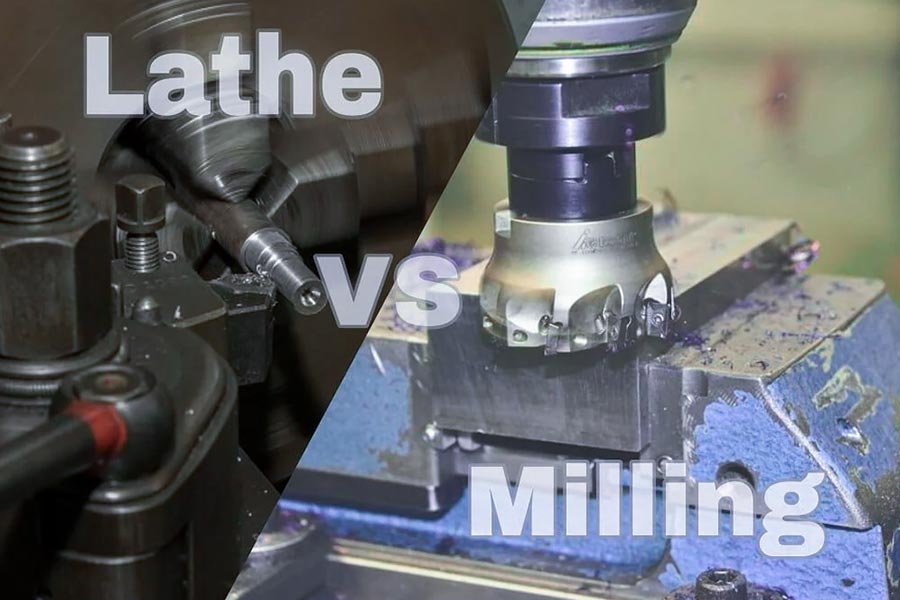

Which is better, a lathe or a milling machine?

Two giants in the manufacturing world

You have a design for a precision part in your hands. It could be a smooth, round shaft that needs to fit perfectly into a bearing, or it could be an angular, square block with grooves and holes that need to be precisely machined. Before it goes from blueprint to the physical object in your hand, it must pass through one of the two indispensable “giants” in the machine shop: a lathe or a milling machine. However, this seemingly simple choice is like standing at the first fork in the road of manufacturing.

The consequences of making the wrong choice are far more than inefficiency. It may mean that precious time and materials are wasted on the wrong machine tool; it may mean that the machined part has dimensional deviations, rough surfaces, or even fails to achieve the core functions of the design; ultimately, it may directly translate into project budget overruns and delivery delays. Faced with the round or square outline on the design drawing, how can you make that critical decision with confidence: should the drawing go to the rotating lathe or enter the world of milling?

The answer is not a simple judgment of one or the other. Lathes and milling machines are not in a competitive relationship of “better” and “worse”, but rather precision manufacturing partners with complementary functions and strengths. Understanding their core working principles and areas of expertise is the key to solving this manufacturing puzzle. It’s like asking “Which is better, a hammer or a screwdriver?” – the answer depends entirely on whether you want to hammer a nail or screw a screw.

To save you time, here is a quick chart between lathes and milling machines.

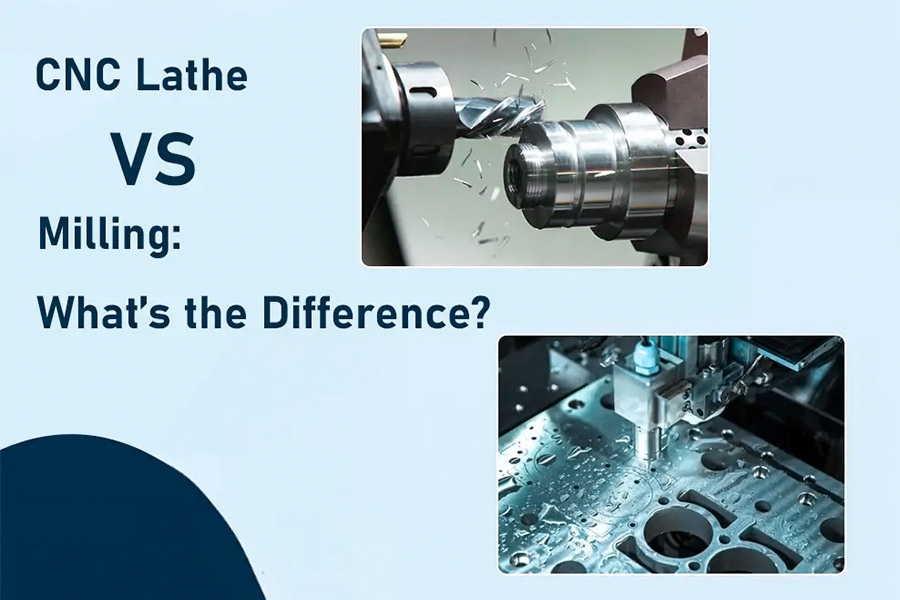

Lathe vs Milling Machine Core Answer Summary

This guide will thoroughly demystify the fundamental differences between lathes and mills using a simple analogy, clear up common misconceptions about ‘CNC’, and ultimately help you decide whether you need a lathe or mill for your next project

This article will answer your questions

• A fundamental visual decision-making rule: Just observe the shape of the part (is it “round” or “square”?), and lock the type of machine tool that best suits you within 60 seconds.
• The core difference in cutting methods: “The art of rotation” vs. “The science of carving” – does the workpiece move or the tool move? How does this determine the world they can create.
• The ultimate limitation of geometric shapes: Why can lathes almost only make “circles” while milling machines can shape almost “any shape”? (Key dimension comparison)
• The truth about efficiency and cost: In what scenarios is the lathe the king of efficiency? What is the price of the flexibility of the milling machine? (Material removal rate and cost analysis)
• The fusion revolution of modern manufacturing: When the lathe “learns” milling (power turret) and the ultimate hybrid (turn-milling center) how to break the traditional boundaries?
• A practical selection guide from the machining workshop: For typical parts such as shafts, flanges, brackets, and housings, the optimal processing solution is revealed.
• Answers to the most confusing FAQs: For example: “Can a lathe replace a milling machine?”, “What are the fatal shortcomings of each?”, “Which one should a beginner buy first?”.

Now, let’s clear the fog and find the “right” machine to empower your project.

Why should you trust this guide? A practical perspective from the LS machine shop

I am an engineer in the LS machine shop. This guide is not copied from a textbook, nor is it an advertisement from an equipment supplier, but comes from workshop practice.

We focus on effectiveness and are unbiased. The workshop has five-axis milling machines and CNC lathes. We are proficient in both because we need to find the best solution for different customers. For example, the five-axis milling machine processes turbine blades for aviation customers, and the CNC lathe produces drive shafts for large automobile manufacturers. We often choose between “complex surfaces” and “precision mass production”.

The core of this guide is the practical experience of “making choices every day”. It is not a theoretical deduction, but the accumulation of countless real-life projects. For example, a part is placed in front of you: the main body is cylindrical, but it happens to have several key planes or special-shaped grooves. At this time, the real choice comes:

• Option A: Use a turning and milling compound center with a “powered turret”, clamp once, turn the outer circle and inner hole, and the turret turns, and the milling cutter goes directly to make the plane features. Save the second clamping, high efficiency? It sounds beautiful.
• Option B: Honestly turn the main body on the CNC lathe first, and then transfer it to the vertical machining center to mill those planes. There are more processes and longer turnover time. Do you think the cost will go up?

Choose A or B? This is definitely not a decision made on the spur of the moment! We make this kind of strategic decision for our customers’ CNC milling and turning parts every day. We will carefully discuss:

• How big is the batch size of this part? Power turrets are efficient, but the equipment hourly rate is also high, and small batches may not be cost-effective.
• How high are the precision requirements for those plane features? How strict are the position requirements? One-time clamping (power turret solution) can often guarantee higher position accuracy.
• Is the cost of secondary clamping fixtures high? Design, manufacturing, and debugging all require money and time.
• What is the material? How to adjust the processing parameters? How much impact do tool life and tool change time have on overall efficiency?
• Where are the equipment scheduling and production capacity bottlenecks in the workshop?

This guide is the crystallization of our experience as your true manufacturing partner, after careful calculation and repeated verification for customers’ costs and efficiency day after day. We know which solution can really save money, save time, and ensure quality under what circumstances. We are not selling a certain machine, we are selling proven manufacturing solutions that can help customers win.

So, believe it, because it is the “dry goods” we have summed up from the spark-flying workshops, from the piles of drawings and process cards, and from countless successful deliveries and optimization improvements. We share it in the hope that we can use our experience to pave a more efficient and economical path for your project.

How do they carve? The art of spinning versus the science of carving

“To understand what differentiates the two, forget the technical jargon and picture two simple scenarios.”

In the machinist realm, milling machines and lathes are two master craftsmen of outstanding quality. Both are capable of giving new forms to metal, but their basic mode of operation is completely different. To understand their basic difference, you don’t have to be overwhelmed by unclear parameters, simply keep your focus on the most elementary and most critical point: Who is the focal point of the movement? Imagine two completely different environments of craftsmen, and the answer will emerge.

1. Lathe – Turning workpiece, stationary tool (e.g., pottery)

(1) Central philosophy: Make the material move. The lathe is entirely about the art of turning.

(2) Imagine the working setting: Imagine a turntable before a potter. The clay (workpiece) is securely fastened in the center of the turntable and rotates at high speed together with the turntable (lathe spindle). The potter holds a slender scraper (turning tool) and slowly approaches the rotating clay. The scraper does not rotate but is precisely manipulated by the potter to travel along the axis of the clay (axial feed) or to cut slowly into the center of the clay (radial feed).

(3) Explanation of the working principle:

①Rotation and clamping: A metal bar (or a partly finished blank) is securely clamped onto the chuck of the lathe. The chuck is connected with the spindle, making the workpiece rotate at high speed and stability. It is the centralized power source of the entire processing process.

②The function of the tool: There is a single-point cutting tool (turning tool) on a tool holder. The tool is usually stationary (relative to its own axis of rotation), or at most makes auxiliary linear or angular motions in specific situations, but the principal cutting edge itself does not rotate.

③The cutting nature: The operator (or CNC program) precisely moves the tool holder such that this stationary tool:

Travel along the rotating workpiece axis (X-axis travel – longitudinal feed), like the scraper is moved by a potter over the height of the clay.
Travel to or from the centerline of the rotating workpiece (Z-axis travel – lateral/radial feed), like the depth of the scraper into the clay is controlled by a potter.

④The secret of forming: The surface of the workpiece is constantly “colliding” with the stationary but strongly controlled sharp tool tip. The tool tip is an extremely precise “skinner”, peeling off the metal chips layer by layer and constantly. The result of this dynamic contact is:

• Milling a flawless cylindrical outer circle or inner hole surface.
• Conical surfaces, spherical surfaces, threads and other rotating body features turn out easily.
• Turn the face at the end of the workpiece (end turning).

It is similar figuratively to peeling an apple – the apple (workpiece) is being reversed, the peeling knife (turning tool) is stationary but in motion, and then a rotating smooth body (peeled apple) is attained.

Result characteristics: The machined surface will generally be extremely smooth (continuous tool contact), and it is best for making axisymmetric parts such as shafts, sleeves, flanges, threaded rods, etc.

2. Milling Machine – Fixed workpiece, rotating tool (or similar to carving)

(1) Core philosophy: Move the tool. The milling machine’s essence lies in the carving art.

(2) Work scene imagination: A sculptor, carving a wooden object (workpiece). The wood is clamped tightly on the workbench and does not shift. The sculptor holds a rotating carving knife (milling cutter) or an electric carving knife. He needs to be careful in moving the rotating carving knife to carve top and side of the wood. He goes up and down, left and right, and forward and backward, taking away the excess material and removing planes, grooves, holes or complex three-dimensional structures.

(3) Detailed explanation of the working principle:

① Fixed and fixed: A metal block (or blank, shaped part) is clamped or set firmly on the workbench of the milling machine. The workbench is the middle bearing platform. During the entire process of processing, the workpiece itself doesn’t move relative to the machine tool base (does not actively rotate).

② Tool drive: The spindle holds a multi-edged rotating cutting tool (an end mill, face mill, drill, T-slot mill, etc.). The motor is used to drive the spindle, which drives the tool to rotate at high speeds. This is the active source of the cutting force for milling.

The nature of cutting: The operator (or CNC program) has complete control over
The motion of rising and falling of the rotating tool in the direction of the Z-axis (cutting in/out from the workpiece).
The table upon which the workpiece is mounted moves left to right (X axis) and forward and backward (Y axis) in the plane horizontal to it.

(On advanced milling machines, the spindle head itself will also move in the X/Y/Z direction). Direction of rotation axis of the tool (vertical/horizontal) also indicates direction of machined surface.

③The mystery of shaping: The high-speed, multi-edged rotating tool (every tooth is a small turning tool) is precisely shifted to different positions and depths of the stationary workpiece. The rotating cutting edge is like countless tiny “chisels”, which “gnaw” or “plough” material away from the workpiece surface periodically or continuously. This relative movement allows for:

• Machining precise planes (e.g., top and side of workpiece).
• Milling grooves of varied forms (straight grooves, T-slots, dovetail grooves).
• Drilling, boring, and machining cavities.
• Creating highly complex two-dimensional contours and three-dimensional surfaces.
• Comparable to drilling or grooving wood with a rotating drill bit – the wood (workpiece) doesn’t move, and the drill bit (milling cutter) rotates and moves to cut.

Result properties: Adaptive processing methods, capable of making planes, grooves, hole systems, complex profiles and non-rotating parts, such as molds, cases, brackets, gear cases, printed circuit boards, etc. The surface may leave very fine knife marks (periodic cutting properties), but the accuracy and complexity are extremely high.

Understanding this most fundamental difference between “who rotates and who moves” will help you clearly understand the essential differences between turning and milling, and the areas in which they excel. Rotation gives symmetry, movement creates freedom – this is the most basic and profound duality in the world of metal forming.

Turning vs. Lathe, Milling vs. Milling Machine, and the Role of “CNC”

Understanding the basic terminology of machining is essential to mastering the manufacturing process. The key here is to distinguish between the machine itself and the action performed by the machine, and the role of “CNC” in it:

1. Lathe vs. Turning

• Lathe: Refers to a specific type of machining machine. The core feature of a lathe is that the workpiece (the material being machined) is clamped by a spindle and rotated at high speed.
• Turning: Refers to the main machining action or process performed on a lathe. In this process, a fixed or movable single-point cutting tool is pressed against the rotating workpiece to remove material. Turning is mainly used to machine rotationally symmetrical features such as cylindrical surfaces, end faces, tapers, threads, grooves, etc. Simply put: a lathe is a machine that does turning work.

2. Milling Machine vs. Milling

• Milling Machine: Refers to a specific type of machining machine. The core feature of a milling machine is that the tool (milling cutter) is clamped by the spindle and rotates at high speed, while the workpiece is usually fixed on the worktable (the worktable can move).
• Milling: refers to the main processing action or process performed on a milling machine. In this process, a rotating multi-edge milling cutter moves relative to a fixed workpiece in different directions (X, Y, Z axes), using the rotating cutting edge of the tool to remove material. Milling can process various complex planes, curved surfaces, grooves, cavities, gears and other features. Simply put: a milling machine is a machine that does milling work.

3. The role of “CNC” (Computer Numerical Control)

(1)CNC is not a type of machine. It is an abbreviation that stands for “Computer Numerical Control”.

(2)CNC is a control method. It is essentially a set of automated control systems driven by computers.

(3)CNC can be applied to lathes and milling machines:

Lathes equipped with CNC control systems are called “CNC Lathes”.

Milling machines equipped with CNC control systems are called “CNC Milling Machines“, and are sometimes simply called “Machining Centers”, especially those with advanced functions such as automatic tool changing.

(4)The core role of CNC: CNC systems accurately and automatically control all operations of machine tools, such as motion axes (movement direction, speed, position), spindle speed, feed speed, tool changing, etc., by reading and executing preset program codes (G codes, etc.) generated by CAM software or written manually. This replaces traditional manual operation or cam-controlled automation.

(5) Advantages and significance of CNC:

Extremely high precision and repeatability: Computer control eliminates human error and ensures that each part is processed strictly according to the program.

Complex geometric shapes: Complex surfaces and contours that are difficult or impossible to achieve by manual operation can be easily processed.

Automation and efficiency: Once the program is verified, it can be run unattended (or with a small amount of supervision), greatly improving production efficiency.

Flexibility: Changing the processed parts usually only requires changing the program and tool, without complex mechanical adjustments.

(6) CNC is the foundation of modern precision manufacturing: It is the popularization and application of CNC technology that enables today’s manufacturing industry to efficiently, accurately and mass-produce simple parts to extremely complex high-precision parts (such as aerospace parts, medical devices, molds, etc.). It is one of the core driving forces of digital manufacturing.

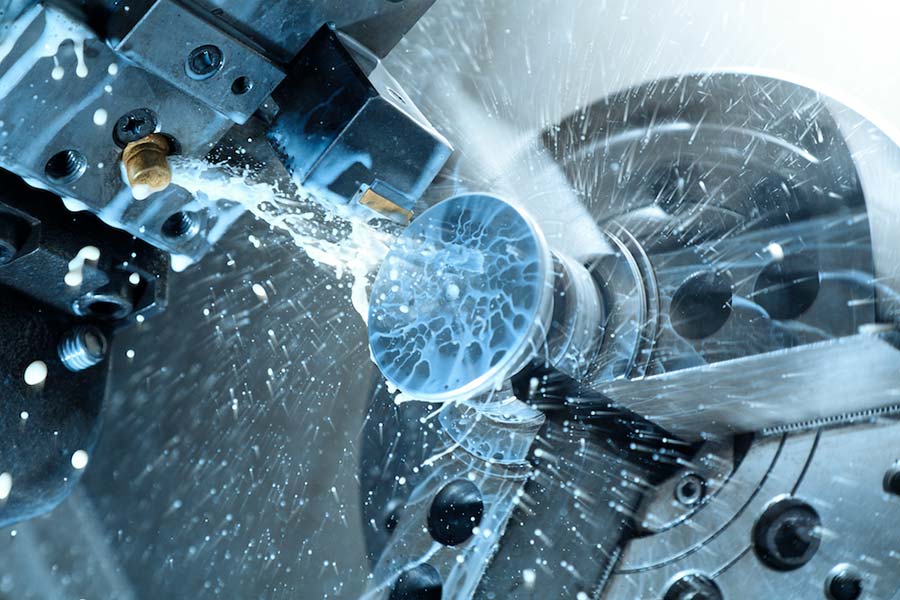

Lathe vs. Milling Machine Detailed Comparison

In the field of mechanical manufacturing, lathes and milling machines are the two most basic and widely used machine tools. Their working principles and processing capabilities are fundamentally different, and they are suitable for completely different types of parts and processing tasks. Understanding their core differences is the key to efficient and precise manufacturing.

Not opponents, but partners
Lathes and milling machines are not pure competitors, but complementary processing tools:

Choose a lathe when: You need to efficiently and accurately process cylindrical, conical or other rotationally symmetrical parts (shafts, sleeves, threads, etc.). It is the first choice for mass production of rotating parts.

Choose a milling machine when: You need to process planes, cavities, grooves, complex contours, non-rotating parts or parts that require multi-faceted processing. It is indispensable in the processing of small batches, multiple varieties and complex parts.

In modern manufacturing, turning and milling composite machining centers are becoming more and more popular. They integrate the functions of lathes and milling machines into one device, allowing turning and milling operations to be completed in one clamping, greatly improving the processing efficiency and accuracy of complex parts and reducing clamping errors. This just proves the strong complementarity of these two basic technologies. Understanding the core advantages of each is the basis for choosing the best processing solution.

When the lathe learns milling: powered turret and turning-milling center

“In modern manufacturing, the boundaries between lathes and milling machines are becoming blurred.” This is not a prophecy, but a revolution that is happening. Power turrets and turn-milling centers are integrating the world of rotary turning with the field of multi-directional feed milling, reshaping the way complex parts are manufactured.

1. Power turret (power tool lathe):

• Core: An independently rotatable power head is integrated on the turret of a CNC lathe.
• Work: After turning, the workpiece stops and locks, the power tool (milling cutter/drill) rotates, and the X/Z axis of the lathe is used for simple milling, drilling, and tapping (mainly in the radial or end surface).
• Advantages: Turning + simple milling/drilling can be completed in one clamping; significantly reduce turnover errors and time; economically expand the functions of the lathe.
• Applicable: Flanges, shafts (with keyways/holes), connectors and other parts with medium complexity.

2.Mill-Turn Centers:

• Core: Deep integration of lathe (chuck/spindle) and milling machine functions, the key is a milling spindle with a B-axis swing head (can be tilted at multiple angles) and a Y-axis (radial movement), often equipped with a large-capacity tool magazine.
• Work: One clamping, seamless switching between turning and milling modes. Utilize the linkage of B/Y/C axis and X/Z axis to realize multi-angle, five-axis linkage milling, drilling of complex spatial features (such as bevels, curved surfaces, eccentric holes), and even simultaneous turning and milling.
• Advantages: Complete almost all processes (turning, milling, drilling, boring, etc.) in one clamping; eliminate multiple clamping errors, achieve ultra-high precision and complex geometric processing; efficiency leap.
• Applicable: Aerospace engine parts, complex medical equipment, high-precision hydraulic/optical components and other parts with extremely complex geometry and strict requirements.

Comparison and selection:

• Capability: Power turret – simple milling and drilling; Turning and milling – complex spatial geometry, five-axis processing.
• Precision: Both benefit from one clamping, and turning and milling can usually reach higher limits.
• Cost: Power turret – economic upgrade; turning and milling – major investment (the price is usually several times that of the former).
• Efficiency: Both improve efficiency, and turning and milling has greater potential (especially when processing simultaneously).

The power turret expands the basic capabilities of the lathe, and the milling center achieves deep integration of milling and turning through the B/Y axis, representing the pinnacle of single-machine multi-task processing. The choice depends on the complexity, accuracy, output and budget of the parts, and together promotes the development of efficient, precise and flexible manufacturing.

FAQ – Answers to all your questions about workshop equipment

1. Should I buy a lathe or a milling machine first?

This depends on your main processing needs: lathes are preferred if you often process rotating parts (such as shafts, threads, holes), while milling machines are preferred if you need to process planes, grooves, contours or special-shaped parts. If the budget is limited and you only want to choose one, lathes are more basic and general, but milling machines are more applicable; if the needs of the two are similar, it is recommended to buy a milling machine first (it can partially replace the functions of lathes with tooling).

2. Can lathes do everything that milling machines can do?

No. Lathes mainly process by rotating the workpiece and are good at rotating features such as cylindrical surfaces and conical surfaces; milling machines rely on tool rotation and can complete non-rotating body processing such as planes, grooves, gears, 3D surfaces, etc. Even if a lathe-milling machine (with a powered turret) is used to achieve some milling functions, its efficiency and accuracy are still far behind those of dedicated milling machines.

3. What are the respective disadvantages of lathes and milling machines?

Disadvantages of lathes: It is difficult to efficiently process non-rotationally symmetrical parts (such as plane milling), the ability to process complex contours is weak, and multi-faceted processing requires frequent re-clamping; Disadvantages of milling machines: When processing long-axis parts, multiple clamping is required, resulting in cumulative errors, the efficiency of turning circular holes/external circles is lower than that of lathes, and the equipment cost and programming complexity are usually higher. Both have operational safety risks (lathes are prone to entanglement of workpieces, and milling machines are prone to splashing chips).

Conclusion

There is no absolute “better” between lathes and milling machines, only “more suitable”. Lathes are the king of round parts processing, while milling machines are masters of shaping square and complex structures. Understanding this fundamental difference is the key first step to accurately match the manufacturing process for your project.
You don’t need to be proficient in machinery to find the best manufacturing solution for your parts. Leave this professional problem to us! LS engineers will deeply analyze your design and tailor the most efficient and cost-effective processing path for you – whether it is pure turning, pure milling, or a perfect combination of the two. Upload your CAD file now to get an instant quote and a professional manufacturability analysis report. Let us use precise technology to efficiently turn your creativity into reality!
