Laser cutting is a versatile and precise technology that excels at carving precise and reusable contours. Its effectiveness depends largely on the material being processed, especially when it comes to plastics. Different types of plastics may have very different chemical responses to the “touch” of the laser. It is true that some plastics are not suitable or even prohibited for laser cutting, but at the same time, there are many plastic materials that are perfectly compatible with laser cutting technology and complement each other.
Today, LS will lead you to explore in depth those plastic materials that complement laser cutting technology, aiming to provide you with a clear material guide when seeking customized laser cutting services, so that you will no longer be confused when faced with a wide range of plastic options and can calmly make the most suitable choice!
What is plastic laser cutting?
Plastic laser cutting involves cutting or engraving plastic using a laser beam. The laser causes the plastic to melt, burn, or vaporize, allowing for very precise cuts with minimal waste.
This method is particularly useful for cutting complex designs and shapes because it can cut a wide variety of plastics accurately and quickly. Whether it’s cutting plastic sheets or engraving intricate patterns, laser machines can help manufacturers get the job done easily.
How does plastic laser cutting work?
In fact, it uses a high-energy laser beam to focus light on a small area of plastic, causing it to generate high heat. This heat causes the plastic to melt, evaporate or burn along the path of the laser.
The laser beam is controlled by a machine, and it will move according to the pattern or path we designed in advance, so that the cutting effect will be very consistent. However, different plastics (such as acrylic, polyethylene, and polycarbonate) react differently to lasers, so we need to adjust the laser settings to get the best cutting effect.

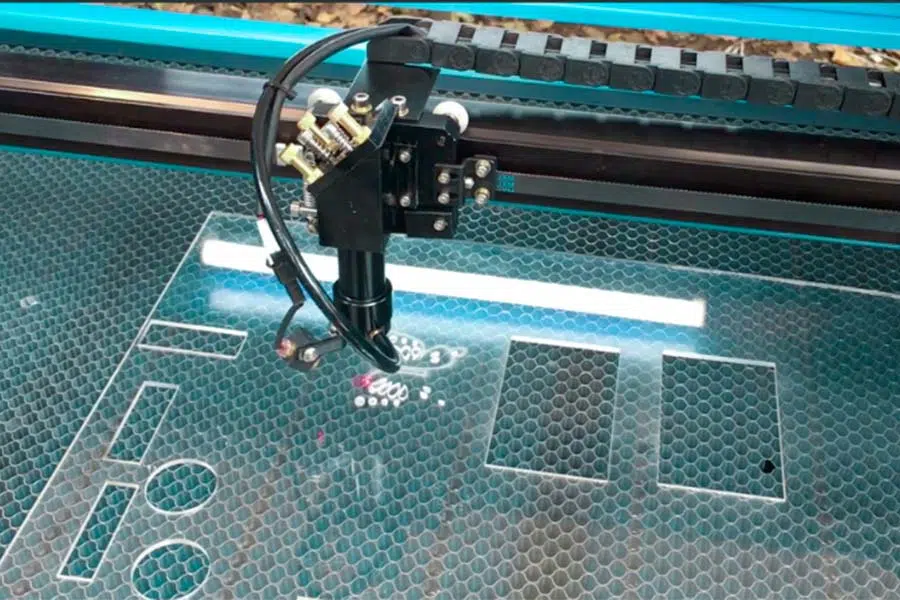

CO2 lasers are the most commonly used machines for cutting plastics because they can handle a wide variety of materials, including acrylic and PETG. The laser wavelength is particularly suitable for processing plastics, and the cut edges are smooth and clean with minimal residue.
Also, the air assist function can help blow away the molten plastic particles, keeping the cut area clean. This way, we can get a sharper edge and prevent the material from overheating during processing.
Which plastic is suitable for laser cutting?
In the field of laser cutting, a variety of plastics are suitable for different application scenarios due to their unique characteristics. Common plastics that can be used for laser cutting include acrylic (PMMA), polyethylene (PE), polypropylene, polycarbonate, etc. These materials differ in melting point, flexibility and durability, which also determines their suitability for a wide range of laser processing projects. Selecting the right plastic for a laser cutting project is key to achieving clean, precise cutting results and reducing material waste.
| Material | Description |
| Acrylic (PMMA): | Acrylic is a popular choice for laser cutting due to its transparency, ease of cutting, and ability to produce clean edges. |
| Polyurethane (PU) | Polyurethane can be laser cut, and it is known for its flexibility and abrasion resistance. It is commonly used in the production of gaskets and seals. |
| ABS (Acrylonitrile Butadiene Styrene) | ABS is a thermoplastic known for its strength and impact resistance. It can be laser cut, but proper ventilation is important. |
| Polycarbonate (PC) | Polycarbonate is a durable and impact-resistant plastic that can be laser cut with good results. It is commonly used in applications requiring high strength. |
| Polyvinyl Chloride (PVC) | PVC is a versatile plastic that can be laser cut, but it’s important to note that the process may release chlorine gas, so adequate ventilation is necessary. |
| Polyoxymethylene (POM) | Also known as Delrin, POM is a high-performance engineering plastic suitable for laser cutting. It has excellent dimensional stability. |
| Polyester (PET) | PET is a strong and transparent plastic that can be laser cut. It is commonly used in packaging materials and other applications. |
| Polyethylene (PE) | High-density polyethylene (HDPE) and low-density polyethylene (LDPE) are both suitable for laser cutting. HDPE is often used for its rigidity, while LDPE is more flexible. |
| Polypropylene (PP) | Polypropylene is another thermoplastic that can be laser cut effectively. It is known for its chemical resistance and lightweight properties. |
| Polyethylene Terephthalate Glycol-Modified (PETG) | PETG is a clear plastic with good impact resistance. It is often used as a substitute for acrylic in some applications |
What Thickness of Plastic Can Be Laser Cut?
The thickness of laser-cut plastics is limited by a variety of factors, including the power and type of laser, the type and characteristics of the plastic, etc. Here are some approximate thicknesses for which common plastics can be laser cut:
- Acrylic (PMMA): In general, common laser cutting machines can cut acrylic sheets with a thickness of about 1 – 20 mm. If it is a high-power laser machine, it is even able to cut thicker acrylic.
- Polyethylene (PE): The thickness that can be cut is usually between a few millimeters and a dozen millimeters. However, the exact thickness will vary depending on factors such as the difference between HDPE and LDPE, as well as additives.
- Polypropylene (PP): Generally, the thickness that can be cut is also in the range of a few millimeters to ten millimeters. The cuttable thickness is also affected by the properties of the material itself and the laser cutting conditions.
- Polycarbonate (PC): Typically cuttable thicknesses of around 1 – 15 mm. Polycarbonate’s impact resistance and other physical properties play a role in its cuttable thickness.
For some special plastics or plastics with special additives, the thickness that can be cut can vary greatly. At the same time, the thickness of laser cutting is also closely related to process parameters such as cutting speed and focus position. In practice, it is necessary to test and debug the specific plastic material and the laser cutting equipment to determine the optimal cutting thickness and related process parameters to achieve the desired cutting result.
How to Set Laser Parameters for Xtool F1 on Plastics?
When setting the laser parameters of the Xtool F1 for plastic cutting, you have to adjust them accordingly to the type of plastic, its thickness and the desired cutting result. Here’s how to set it up and what to keep in mind:
Clarify the type of plastic
First of all, figure out what type of plastic you are going to cut, such as acrylic, PETG, polypropylene, etc. Because different types of plastics have different levels of laser absorption, melting point, and cutting characteristics. Only when the type of plastic is clearly defined can the subsequent setting parameters be targeted.
Set the laser power
Adjust the laser power according to the type and thickness of the plastic. Generally speaking, larger thicker plastics, or plastics that absorb less laser, require higher laser power. For example, when cutting acrylic, you might just use medium power; However, if you want to cut polypropylene, you may need more power to ensure the cutting effect.
Adjust the cutting speed
The cutting speed has an impact on the quality and efficiency of the cut. If the speed is too fast, it may result in incomplete cutting and rough edges; If the speed is too slow, the plastic is easy to overheat or even melt. Therefore, the cutting speed should be adjusted appropriately according to the characteristics of the plastic and the laser power. For example, cutting thinner plastics with low melting points can be appropriately faster; Cut thick plastics with high melting points at a slower pace.
Choosing DPI (Resolution)
DPI determines how fine the cut line is. If you have high requirements for plastic cutting accuracy, you should choose a higher DPI. However, it is also important to note that setting the DPI too high will increase the time it takes to cut. So find a balance between precision and time.
Adjust the focal height
The focal height refers to the position where the laser beam is focused on the plastic surface. The right focal length ensures that the laser beam forms the smallest spot on the plastic, which improves the quality of the cut. The focal length height needs to be adjusted according to the thickness of the plastic and the characteristics of the laser. In general, thicker plastics need to be optimally focused to ensure that the laser energy can be effectively applied to the material.
Consider assist gases
For some plastics, such as polypropylene, it is helpful to use an assist gas such as nitrogen during the cutting process. Assist gases prevent fumes during cutting, reduce plastic melting, and make the cutting process smoother.
Test cutting
Before you start large-scale cutting, it is recommended to do a small area of trial cutting. Test cutting to check whether the previously set parameters are suitable. Then, according to the results of the trial cutting, the parameters are finely adjusted until the satisfactory cutting effect is obtained. This avoids the problem of material waste and poor cut quality due to inappropriate parameters during formal cutting.
Which Plastics Cause Laser Machine Damage?
In the process of using laser machines to process plastics, some plastics may cause damage to the laser machine, and here is a detailed description of these plastics and the causes of damage:
PVC (Polyvinyl Chloride)
PVC emits toxic gases and fumes when cut or other processing operations by lasers. These toxic substances are corrosive and can corrode critical components such as lenses and guide rails of laser machines. Long-term exposure to such toxic gases and fumes will erode the lens of the laser machine, affecting the transmission and focusing effect of the laser beam. When the guide rail is corroded, it will reduce the accuracy and stability of the equipment operation. In addition, toxic substances can shorten the life of the laser tube and increase the frequency of equipment repairs and replacement parts.
Contains fiberglass material
When laser cutting or processing materials containing glass fibers, the glass fibers can have a wear effect on the nozzles of the laser machine. As the processing time increases, the degree of nozzle wear gradually increases, which eventually leads to nozzle damage, which affects the injection effect of the auxiliary gas during laser processing, and thus reduces the quality of the cut or processing. At the same time, glass fibers may drift into the optical system of the laser machine during processing, contaminating the optical components. Once the optical system is contaminated, the quality of the laser beam will be seriously affected, resulting in a significant reduction in cutting or processing results, and the expected accuracy and quality requirements cannot be achieved.
Solutions for plastic-induced laser machines
Clean the lens regularly
In order to prevent dust, dirt and other impurities from adhering to the surface of the laser lens and affecting the transmittance and focusing effect of the laser beam, it is necessary to clean the lens regularly. When cleaning, you should use a professional lens cleaner with a soft cloth to wipe the lens with gentle movements. This can maintain the cleanliness of the lens, ensure the normal working performance of the laser machine, prolong the service life of the lens, and ensure the quality and stability of laser processing.
Equipment Warranty
When buying a laser machine, it is crucial to choose a supplier with good after-sales service. Before purchasing, it is important to understand the warranty policy and terms of the equipment in detail, and clarify the repair process and responsibilities in the event of equipment failure or damage. When the laser machine has a failure or damage caused by normal use, it can get in touch with the supplier in time to repair or replace the parts according to the warranty policy, so as to reduce the downtime of the equipment and reduce the cost of use.
Disclaimer verification
Before buying a laser machine, be sure to read the warranty terms and disclaimers of the equipment carefully. Clearly know under what circumstances the equipment is not covered by the warranty, such as the equipment damage caused by the operator’s illegal operation and failure to operate in accordance with the equipment manual; or the use of materials that are not suitable for laser machining, such as the aforementioned PVC, fiberglass-containing materials, etc., resulting in damage to the equipment is usually not covered by the warranty. Understanding this information in advance will help to standardize the operation during the use of the equipment, reasonably select the processing materials, and avoid unnecessary economic losses.
Conclusion
Laser cutting technology provides a high-precision, high-efficiency solution for plastic processing. When selecting plastics suitable for laser cutting, it is necessary to consider the characteristics of the plastic itself, processing requirements, cost factors, and laser equipment compatibility. Plastic types such as acrylic (PMMA), polyethylene (PE), polypropylene, and polycarbonate are popular because of their good laser cutting effects and wide range of applications.
Contact us now to get exclusive CNC machining solutions!
📞 Phone: +86 185 6675 9667
📧 Email: info@longshengmfg.com
🌐 Website: https://www.longshengmfg.com/
Disclaimer
The content appearing on this webpage is for informational purposes only. LS makes no representation or warranty of any kind, be it expressed or implied, as to the accuracy, completeness, or validity of the information. Any performance parameters, geometric tolerances, specific design features, quality and types of materials, or processes should not be inferred to represent what will be delivered by third-party suppliers or manufacturers through LS’s network. Buyers seeking quotes for parts are responsible for defining the specific requirements for those parts. Please contact to our for more information.
Team LS
This article was written by various LS contributors. LS is a leading resource on manufacturing with CNC machining, sheet metal fabrication, 3D printing, injection molding,metal stamping and more.
FAQs
Which plastics can be cut using laser technology?
There are many plastics that can be processed using laser cutting technology, including polycarbonate (PC), polyester (PET), polypropylene (PP), polyethylene (PE, especially high-density polyethylene HDPE in certain cases), polyamide (PA, also known as nylon), acrylic acid (PMMA) and polyvinyl chloride (PVC). Under normal circumstances, these plastics can achieve good results after laser cutting. However, the final cutting effect will be affected by many factors, such as the thickness of the plastic itself, the power and specific parameter settings of the laser equipment used, and the environmental conditions during cutting.
Which material is best for laser cutting?
There is no absolute standard answer to the “best material” for laser cutting. This is because the “best” is determined based on the actual cutting requirements and the specific application scenario. Generally speaking, transparent or translucent plastics, such as acrylic (PMMA) and polycarbonate (PC), are often regarded as the preferred materials for laser cutting. This is because they absorb lasers well, have smooth edges after cutting, and have a small area affected by heat. However, if the application scenario has special requirements, such as high requirements for material strength or wear resistance, then polyamide (PA) or some specially formulated polyethylene (such as ultra-high molecular weight polyethylene UHMW – PE) may be more suitable.
Is it safe to cut high-density polyethylene with a laser?
In theory, it is possible to cut high-density polyethylene (HDPE) with a laser, but safety issues must be taken into consideration during operation. HDPE is a thermoplastic, and during laser cutting, the material may drip after melting, and harmful gases may be produced. Therefore, when cutting, a good ventilation system must be equipped to exhaust the harmful gases in time. In addition, operators must wear appropriate personal protective equipment, such as protective glasses, masks, and protective clothing. In addition, the cutting parameters must be flexibly adjusted according to the thickness of the HDPE and the power of the laser equipment to prevent the material from burning due to overheating.
Can laser cut PVC plastic?
The answer is yes, PVC plastic can be cut by laser. However, it should be noted that in the process of laser cutting PVC, harmful gases such as hydrogen chloride will be released, which will not only threaten the health of the operator, but also have adverse effects on the environment. Therefore, when using laser to cut PVC plastic, strict ventilation measures must be taken, and the operator must take personal protection. At the same time, the appropriate laser parameters and cutting speed must be carefully selected to avoid overheating of the material, fire or unsatisfactory cutting effect. In general, although laser cutting of PVC is achievable, it must be operated with caution and strictly follow the relevant safety regulations.
