CNC milling is a highly advanced and precise manufacturing process used to create complex partsand components. The process involves the use of computer-controlled machines that precisely cut and shape metal or other materials to match the exact specifications of a digital model. Here’s a step-by-step guide on how CNC milling parts are processed
The process of CNC milling machining involves several steps, each of which is critical to ensuring that the finished part meets the required specifications. The first step is designing a digital 3D model of the part to be manufactured. This is done using computer-aided design (CAD) software, which allows designers to create highly detailed and accurate models. The 3D model serves as a blueprint for the manufacturing process and contains all the necessary information about the part’s dimensions, tolerances, and other specifications.
Once the design is complete, the CAD file is transferred to a computer program that generates the instructions needed to operate the CNC milling machine. This process involves specifying the tool paths, cutting speeds, and other parameters needed to create the part. The computer program generates a set of instructions that are sent to the CNC milling machine, which then executes these instructions to produce the part.
The next step is to prepare the material to be milled. This typically involves cutting the material to the appropriate size and shape and securing it to the milling machine using clamps or other fixtures. The material may be metal, plastic, or other materials, depending on the requirements of the part being produced.

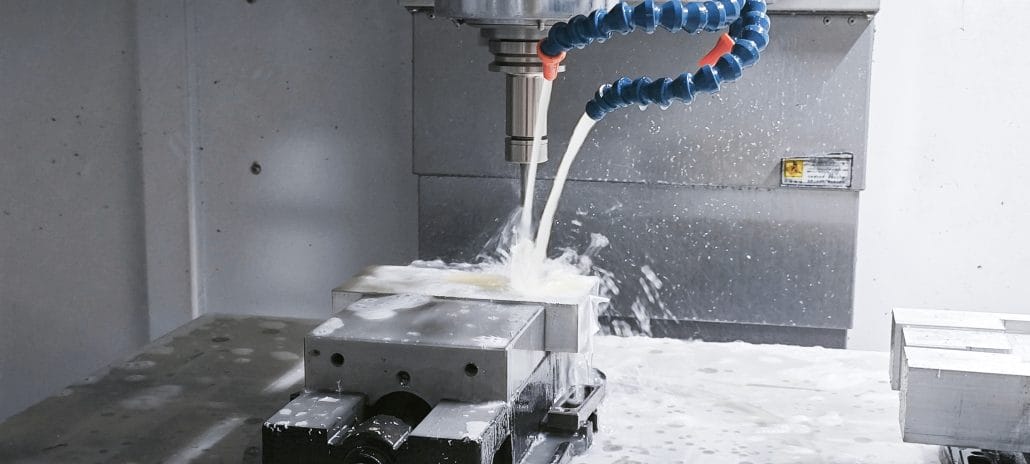

With the material in place, the CNC milling machine begins cutting the cnc machining parts according to the instructions generated by the computer program. The machine uses a spinning cutting tool to remove material from the workpiece, gradually shaping it into the desired form. The cutting tool may be a drill bit, an end mill, or other types of cutting tools, depending on the shape and complexity of the part being produced.
After the milling process is complete, the part may require additional finishing to achieve the desired surface finish and tolerances. This may involve sanding, polishing, or other post-processing techniques. The finishing process is important to ensure that the part meets the required specifications and is suitable for its intended use.
Before the part can be used, it must be inspected to ensure that it meets the required specifications. This typically involves using precision measuring tools to check the dimensions and tolerances of the part. The inspection process is critical to ensure that the part is of high quality and meets the requirements of the customer.
Finally, the finished part may be assembled with other components to create a larger assembly or product. The assembly process may involve welding, soldering, or other joining techniques, depending on the materials and requirements of the product.
In conclusion, CNC milling is a highly advanced and precise manufacturing process used to create complex parts and components. The process involves several steps, including design, programming, material preparation, milling, finishing, inspection, and assembly. By following these steps, manufacturers can produce high-quality parts that meet the exact specifications of their customers. CNC milling is a versatile and efficient process that is essential in modern manufacturing.
