What is Dry Run in CNC Machining

If you’re into CNC machining, you might have heard of the term “dry run” several times. But what exactly is it? In CNC machining, a dry run is when you simulate the program on a machine without cutting or removing any material. It’s a crucial part of the machining process as it helps detect any errors in the program before actual production runs.

In the simplest terms, a dry run is a simulation of a CNC program with no actual cutting involved. Essentially, it means running the machine through its paces to detect any issues before executing the actual machining operation.

In this article, we will dive deeper into what a dry run is, how it works, and the benefits of incorporating it into your manufacturing process.

What is dry run in CNC machining?

Dry Run is a CNC programming command that instructs the machine tool to run the tool paths without performing any cutting action. In essence, it is like a simulation, the machine moves, and cuts the air instead of the actual material. The purpose of the dry run is to verify the accuracy and correctness of the CNC program before executing the actual cutting operation.

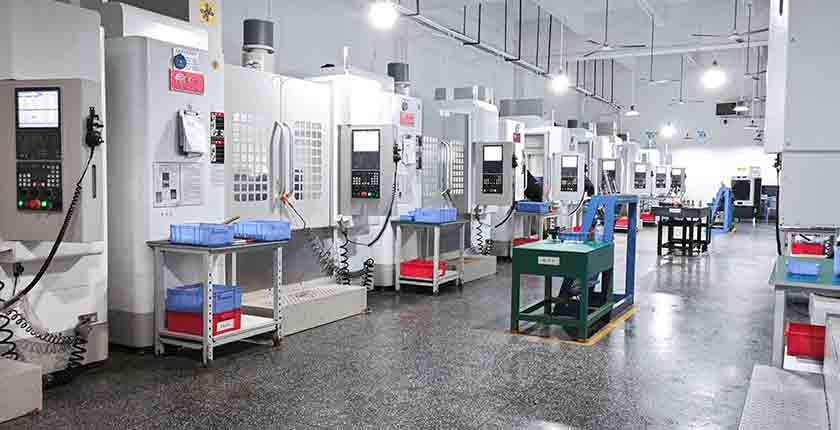

What is Dry Run in CNC Machining

During dry run, the CNC machine performs the same movements and actions it would perform during the cutting process. However, the cutting tool is raised above the material to ensure no damage is done to the product. Dry run is typically performed before the start of any CNC machining operation to avoid product damage, tool breakage, and other potential errors.

Significance of dry run in CNC machining

Dry run offers a range of benefits in CNC machining. The first advantage is error prevention. Before the process begins, the machine tool verifies the accuracy of the programmed tool paths. Dry run helps in detecting and correcting programming errors that can cause costly damage to the machine, cutting tool, and the material.

The other benefit of dry run is to optimize machining time. By identifying and correcting programming errors before starting the manufacturing process, it saves money and time. Dry run exposes the issues that can cause delays in the manufacturing process, such as wrong tool selection, incorrect cutting parameters, collision detection and prevention, and cutting path optimization.

Moreover, dry run also helps in improving the efficiency of the manufacturing process. By eliminating programming errors, it ensures high-quality parts production, reduces waste, and lowers the frequency of tool changes. It also leads to increased machine uptime, reduced maintenance costs, and extended tool life.

How Does a Dry Run Work in CNC Machining?

A dry run is a straightforward process that can be done by anyone familiar with a CNC machine’s controls. Typically, the process involves loading the CNC code into the machine’s memory, followed by running it through the machine’s control panel.

The machine moves its axis according to the programmed instructions, but instead of cutting into the workpiece, the cutting tool remains in the up position. This process allows operators and programmers to verify that the tool path and other parameters are correct before cutting material.

Benefits of Dry Run in CNC Machining

Dry runs help catch errors in the code before the actual machining process. As mentioned above, it’s a fundamental element of the setup process and ensures that the program runs smoothly. It helps detect potential collisions, which can cause serious damage to the machine, tooling, and the finished part. In other words, dry runs act as a preventive measure for your CNC machining operations.

Besides detecting errors, another significant benefit of dry runs is that they help operators fine-tune the parameters. Essentially, you can optimize the program for speed, accuracy, and quality without wasting any material. For instance, by simulating the cutting process using the dry run feature, an operator can predict whether the number of cuts and their speeds are appropriate for the tooling. If not, you need to adjust the parameters until you get it right.

Another significant advantage of dry runs is that they help operators save time and minimize the risk of wasting material. With dry runs, you can identify errors and make necessary adjustments. This ensures that the actual machining process is faster and more efficient, and the material waste is significantly reduced. Additionally, since it’s a simulation, you can experiment with different programs, speeds, and cuts without wasting any material, which significantly reduces production costs.

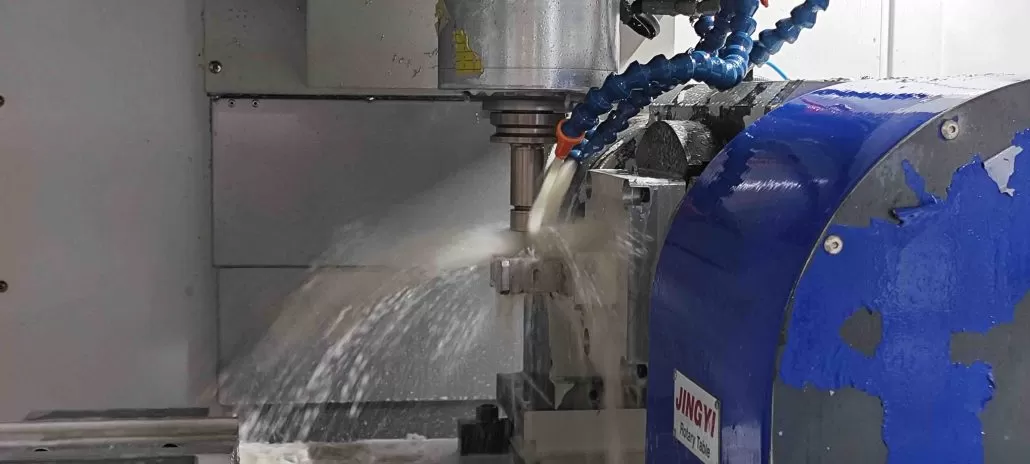

Benefits of Dry Run in CNC Machining

Drawbacks of Dry Runs in CNC Machining

One of the main drawbacks of dry runs is that they can be time-consuming. The process requires a lot of steps and can take a lot of time to ensure everything runs smoothly. Another drawback is that dry runs may not always detect every potential issue in the program. In more complex programs, it can be challenging to identify errors, and as such, some problems might only be noticed when the actual machining process starts.

Dry runs can also result in significant thermal expansion, leading to incorrect measurements. When you run a dry run, there’s no material to absorb the heat generated during the simulation process. In turn, the machine is likely to vibrate more than when cutting material, this vibration can affect the accuracy of the subsequent cuts.

Conclusion

Dry run is an essential step in CNC machining. It is a simulation that is run on the machine tool before the actual cutting operation to verify the accuracy of the programmed tool paths. Dry run offers a range of benefits, including error prevention, optimized machining time, and improved efficiency of the manufacturing process. It helps to avoid costly mistakes and ensures high-quality parts production. In short, dry run saves time, money, and enhances the process in CNC machining. So, if you want a flawless CNC machining process, don’t overlook the dry run!
