Choose right vacuum casting Materials help you save money


Vacuum casting, called urethane spreading or polyurethane casting, is a functional production procedure primarily used for very accurate and comprehensive prototypes or parts in little sets. It entails putting fluid products into a silicone mold under a vacuum cleaner. Then, the material loads the mold and mildew without air bubbles or problems. In a decision, you have several vacuum-casting product choices to select from. It assists in finding the best-fit product resin according to the preferred properties and capabilities in the final part. The prominent vacuum casting materials are ABS-like, PC-like, PPMA, and soft rubbers. Each of these materials supplies unique properties and benefits for vacuum actor components. This post will discuss the various materials that will assist you in choosing a vacuum casting product.

Significance of Material Selection in Vacuum Casting

Significance of Material Selection in Vacuum Casting The properties of the final vacuum casting items depend on the raw product you initially select. This affects the spreading part’s performance, visual appeal, and longevity. Various materials provide differing degrees of flexibility, strength, solidity, look, warm resistance, and optical quality. Below are the values of material choice in vacuum casting;

Performance and Durability

The product option significantly influences the efficiency and durability of vacuum-casted parts. For instance, materials with high tensile toughness and heat resistance are crucial for elements exposed to tension and high temperatures. Conversely, applications needing flexibility and impact resistance take advantage of softer products.

Aesthetics and Finish

Another relevance is looks and finish. The flow attributes of the picked product decide the surface’s top quality. If the molten product streams smoothly inside the cavity, it will cause a penalty and superior finish. Furthermore, it is crucial for prototypes and top-quality components where visual appeal is as important as performance, such as customer electronic devices and premium automotive elements.

Cost of Vacuum Casting Project

The raw material price accounts for a large share of the general vacuum casting price. As a result, the exact cost of the picked product impacts the project’s affordability. Some products are more cost-effective without jeopardizing quality, making them ideal for prototypes and small production runs. The product option can also affect the mold’s lifespan, directly affecting the overall manufacturing price.

Compatibility with Application Requirements

The material you choose needs to meet the particular demands of the desired application. For example, clinical devices demand biocompatible materials, and outdoor applications might call for UV-resistant products. Furthermore, application needs also entail a production range, as some products can take a long time to process and make automation impractical. Nonetheless, there are several reasons to use vacuum casting for quick prototyping, regardless of cycle-time restrictions.

Types of Materials Used in Vacuum Casting

Considering that we recognize the significance, let’s elaborate on regular vacuum casting materials so you can decide which one matches your needs.

ABS-Like Resins

Among the products, ABS-like and polyurethane (PU) materials provide strength, resilience, reduced thickness, and thermal stability. This eliminates a smooth surface area that can be conveniently repainted or completed for aesthetic functions. Additionally, the dimensional security of ABS maintains the items structurally intact for an extended period.
Key Properties Applications
PU8150 Resistant to abrasion & wear, high strength, hardness, semi-transparent, and chemical & oil inertness. Gasket and hoses for various applications.
PU8260 It is a flexible polyurethane resin with high  Impact & tear resistance, durability, flame retardancy, elasticity, and shock absorption capacity. Flexible joints, automotive seals, protective casings, bent tubes.
PU8263 Wear and high-temperature resistance, excellent mechanical strength, and flame retardancy. It is suitable for high flame retardancy applications ( UL94 V-0 and 5VA), industrial machinery components, and automotive under-hood parts.
PX100 It is a rigid resin that offers an excellent blend of strength, impact resistance,  and low viscosity. Parts requiring similar properties to thermoplastics, aerospace components, and electronics housings.
PX215 Dimensional stability, heat resistance, soft touch, and balance of flexibility & toughness. Wearable devices, high-impact resistance products, grips, and soft-touch prototypes.
UP4280 An easy-processing polyurethane with toughness, detail accuracy, and no inherent colors. Detailed prototypes, complex parts with a blend of mechanical properties.

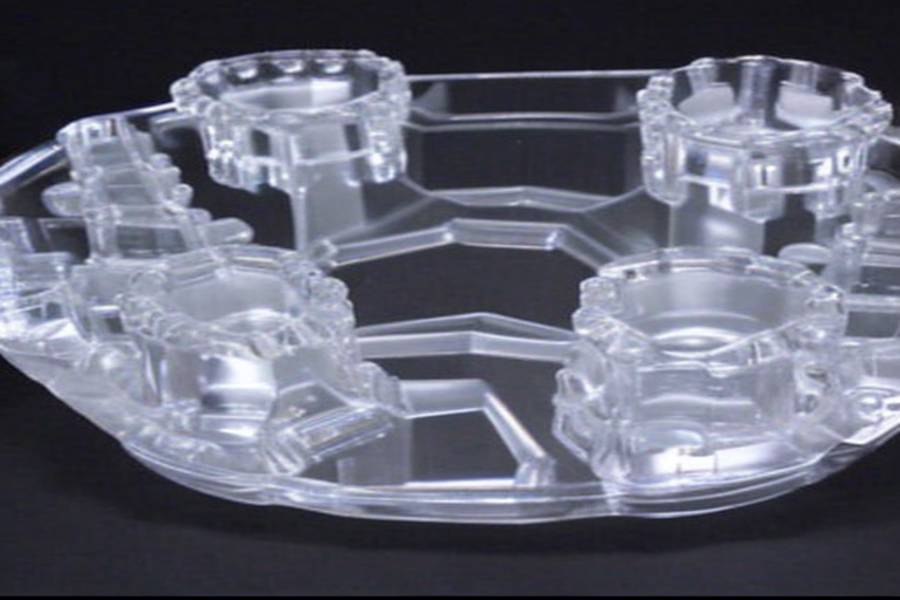

PC-Like Resins

PC-Like Resins These resins mirror the properties of polycarbonate plastic in vacuum casting. They have Po yol and Isocyanate in ideal ratios. Meanwhile, they also supply optical quality, as does PC plastic. Advantages: PC-like materials stand up to influences and stresses without breaking. Convenience fit and dimension. Thermal resistance. More affordable options for glass parts or products. Furthermore, they are excellent for producing sturdy, transparent parts with high accuracy, making them a favorite vacuum casting material in industries requiring clear and robust components.
Key Properties Applications
PU8098 It is highly heat resistant up to 120 °C, less dense, offers valuable mechanical strengths, and is durable. Automotive bumpers and dashboards, durable industrial components, and hosing for tools.
PX510 High strength, stiffness, UV resistance, and superior thermal stability. Transparent prototypes, electrical and lighting fixtures, models & toys, under-hood automotive parts, etc.
UP6160 Easy to process, high-temperature resistance, and detail casting capability. Low-weight automotive components, thermal applications, electronic casing, and enclosures for medical devices.
PX223HT It opposes the impact forces & offers low viscosity, toughness, chemical inertness, and excellent thermal resistance. Thermal resistant applications, machinery parts, aerospace cabin components, and electrical insulators.

PP-Like Resins

PP-Like Resins What makes polypropylene different from other thermoplastics? It has natural stability, reduced weight, exhaustion resistance, and chemical inertness. Therefore, P-like resins bring these buildings to the vacuum-casting components. These vacuum-casting products or resins are attained by polymerizing propylene with a driver, producing adjustable polymer chains for numerous applications. At the same time, readjusting parameters during polymerization permits the circulation of residential or commercial properties, influence resistance, and customization of thermal security. Advantages High Flowability: The material’s flow homes ensure it can fill up silicone mold efficiently, catching elaborate details of dental caries. Low Shrinking: Marginal shrinkage during cooling causes the loss of high dimensional accuracy. Flexibility and Strength: They offer versatility and durability for sturdy components that withstand cracking and tiredness.
Key Properties Applications
8550 Dimensional stability, excellent elongation, moderate impact resistance, and sound clarity. PP& PE plastic prototyping, Transparent or translucent components, automotive prototypes.
PU8570 Wear resistance, durability, good toughness, and outstanding flexibility. Seals and gaskets in machinery, automotive interiors, joints, and connectors.
UP5690 High toughness, impact-resistance, flexibility, and inert to many chemicals & solvents.  Vibration-damping components & bumpers, dashboards, machinery enclosures, and consumer electronics casings.

PMMA/Acrylic Materials

PMMA/Acrylic Materials Among many products, it is recognized for optical transparency, mechanical strength, stamina, thermal stability, and put-on & scratch resistance. In addition, manufacturing Acrylic/PMMA involves methyl methacrylate monomer polymerization in bulk, service, or suspension. His process yields a polymer that combines the aesthetic appeal of glass with longevity. Advantages Cosmetically appealing: PMMA uses an outstanding look (countless shades are feasible). Furthermore, it does not disappear with light (UV) and weather in time. Precision and Detail: Vacuum casting can cast PMMA without elaborate information and tight tolerances. t very closely duplicates the master version’s design. Adaptability in Applications: Its optical clarity makes it suitable for various applications, including lenses, light overviews, and transparent real estate.
Key Properties Applications
PX5210HT High transparency, minimal shrinkage,  excellent UV resistance, and high toughness Automotive lighting, medical device components, and optical lenses
UPX5210 It has good impact strength, is easy to paint and color, and has UV stability. Electronics casings, decorative items, and protective covers.
X522HT Superior thermal resistance, high clarity, and durability. Outdoor fixtures, aerospace components, and high-temperature applications

Transparent Soft Rubber

This ingenious vacuum-casting material combines the elasticity and flexibility of rubber with the clarity of glass. Oft rubbers are commonly made from silicone or polycarbonate elastomers. In addition, it gives diverse application possibilities for designers and item programmers. Advantages Design Freedom: The vacuum cleaner cast process with transparent soft rubber facilitates complicated shapes and information, which are impossible quickly with traditional production processes. Transparency: Rubber casting is comparable to transparent plastics or glass. However, it can make interior parts visible without sacrificing material integrity. Versatility and Longevity: Combines the ability to bend and extend with resistance to impact and wear.
Key Properties Applications
UPX8400 High elongation, flowability, easy to work with casting and tear resistance  Medical prototyping, Wearable technology components.
T0387 Durable resin, optical transparency, good elastic properties, thermal resistance, and flexibility.  Automotive lighting prototypes, consumer products, and various flexible components.

Factors Influencing Vacuum Casting Material Selection

It would be best to get an idea of the functions, properties, and potential applications of vacuum casting materials before choosing one that fits your casting requirements. Let’s discuss which aspects affect the material option.

Environmental Factors

Considering the environment in which the vacuum cast part will operate is critical. Each product resin behaves uniquely towards ecological elements like moisture, chemical or other solvent exposures, UV radiation, and temperature level variation. Therefore, I identify and consider the application’s environment while picking the material. For example, PC-like PX510 resin supplies excellent breathability for outdoor applications.
Material Thermal  Exposure Humidity Chemical and Solvents UV Exposure
PU8150 Moderate High High Moderate
PU8260 Moderate Moderate High High
PU8263 Highly suitable Moderate Highly suitable Highly suitable
PX100 Low Moderate Moderate Low
PX215 Moderate High Moderate Moderate
UP4280 Highly suitable Moderate High Moderate
PU8098 Highly suitable Low Moderate Low
PX510 Moderate Moderate Moderate Moderate
UP6160 Moderate Moderate High Moderate
PX223HT Highly suitable Moderate Highly suitable Highly suitable
8550 Low High Low Low
PU8570 Moderate Highly suitable Moderate Moderate
PU5690 Low Moderate Low Low
PX5210HT Highly suitable High Moderate Highly suitable
UPX5210 Highly suitable High Moderate Highly suitable
X522HT Highly suitable High Moderate Highly suitable
UPX8400 Moderate High Moderate Moderate
T0387 Low High Low Low

Cost Considerations

The rate of materials utilized in vacuum casting work can vary widely, affecting the overall job budget. For instance, high-performance product resins provide superior residential or commercial properties but cost even more. Therefore, stabilizing specific product requirements on residential or commercial properties with spending plan restrictions is essential for economical vacuum casting. Furthermore, the per-part product cost must also be taken into consideration. The product ct expenses add less to the general vacuum casting cost if it is for high-volume manufacturing. B low, you can n get even more versatility on expense and efficiency equilibrium.

Production Volume and Lead Times

Production Volume and Lead Times You could question how the designated manufacturing quantity affects the vacuum casting product option. However, the manufacturing quantity influences the cofactors, such as material accessibility and casting cycle time. For example, a material like PU8150 is perfect for prototyping or small sets as it provides brief cycle periods. Thus, you can cast a few duplicates in a shorter time. The preparation connects with the material choice, as private materials’ healing time is distinct. For example, choose a straightforward process product with a brief curing period if you require a faster turnaround.

Selecting the Right Material for Your Vacuum Casting Project

Now you might understand what type of material suits your application after going over the usual Vacuum casting materials and option factors to consider. It depends upon the application setting, essential mechanical physical & homes, designated production quantity, lead time, and other job specifications. Nevertheless, speaking with vacuum casting manufacturers and seasoned professionals is advised. In context xt, no person can provide the most effective vacuum-casting services except RapidDirect. We have years of experience working on various market applications. R engine can help suggest suitable vacuum casting materials for the job with a comprehensive Style for Manufacturability (DFM) analysis of your layout. You can publish your design below.
