Understanding the Basic Functions of CNC Milling Machine Parts

CNC milling machines have become an integral part of modern manufacturing processes, offering precision, versatility, consistency, and efficiency. These machines are used in various industries such as aerospace, electronics, and automotive to manufacture high-quality components with precision and accuracy. However, understanding the basic functions of CNC milling machine parts is crucial in achieving the desired results.

In this article, we will explore the basic functions of CNC milling machine parts and their applications to help you choose the right tool for the job.

Understanding the Basic Functions of CNC Milling Machine Parts
Understanding the Basic Functions of CNC Milling Machine Parts

End Mill

The end mill is a cutting tool used to cut and shape various materials, including metal, wood, and plastic. It has a cylindrical shape and comes in different sizes and shapes, including square, ball, and corner radius. End mills are commonly used in the aerospace, automotive, and electronics industries for producing complex shapes and geometries. They are ideal for producing precise cuts and creating detailed designs.

An end mill can be used for roughing, finishing, or semi-finishing operations. Depending on the material being machined, different coatings can be applied to the end mill, such as TiN, TiCN, or TiAlN, to improve its wear resistance and extend its lifespan. Additionally, some end mills have specialized geometries, such as tapered end mills, which are ideal for creating angled surfaces and chamfers.

Face Mill

The face mill is a cutting tool used to cut flat surfaces. It has a circular shape and comes in different sizes and shapes, including square and round. Face mills are commonly used in the automotive and aerospace industries for producing large, flat parts. They are ideal for producing flat surfaces with high accuracy.

Face mills come in different types, such as shell mills, fly cutters, and insert face mills. These different types of face mills allow for different cutting strategies, such as high-speed milling, which is ideal for producing fine surface finishes.

CNC Milling Machine Parts
CNC Milling Machine Parts

Drill Bit

The drill bit is a cutting tool used to drill holes in various materials, including metal, wood, and plastic. It comes in different sizes and shapes, including twist, step, and spade. Drill bits are commonly used in the construction, automotive, and electronics industries for producing holes in various components. They are ideal for creating holes with precision and accuracy.

Drill bits come in different types, such as jobber drills, twist drills, and spade drills. These different types of drill bits allow for different cutting strategies, such as peck drilling, which is ideal for drilling deep holes.

Reamer

The reamer is a cutting tool used to create precise and accurate holes in various materials. It comes in different shapes and sizes, including straight and tapered. Reamers are commonly used in the aerospace and automotive industries for producing high-precision components. They are ideal for creating holes with tight tolerances and precise dimensions.

Reamers come in different types, such as hand reamers, machine reamers, and adjustable reamers. These different types of reamers allow for different cutting strategies, such as interrupted cut reaming, which is ideal for reaming holes with interruptions.

CNC machining Parts

Chamfer Mill

The chamfer mill is a cutting tool used to create chamfers on the edges of components. Chamfers are commonly used in the automotive and aerospace industries for reducing stress concentrations and improving aerodynamics. Chamfer mills come in different sizes and shapes, including pointed and flat. They are ideal for producing consistent and precise chamfers on various materials.

Chamfer mills come in different types, such as single-angle chamfer mills, double-angle chamfer mills, and deburring chamfer mills. These different types of chamfer mills allow for different cutting strategies, such as contour chamfering, which is ideal for producing complex chamfers.

In conclusion, understanding the basic functions of CNC milling machine parts is crucial in achieving the desired results. End mills, face mills, drill bits, reamers, and chamfer mills are just a few examples of the different types of CNC milling machine parts available. By understanding their functions and applications, manufacturers can choose the right tool for the job and produce high-quality components with precision and accuracy.

It’s important to note that the quality of the final product depends on the quality of the parts used in the CNC milling machine. Therefore, manufacturers need to consider the material to be machined, the dimensions, and the level of precision required when selecting the appropriate CNC milling machine parts.

Basic Functions of CNC Milling Machine Parts
Basic Functions of CNC Milling Machine Parts

Moreover, manufacturers must also consider the cutting parameters such as spindle speed, feed rate, and depth of cut. These parameters can affect the quality of the components produced, as well as the efficiency and productivity of the machining process.

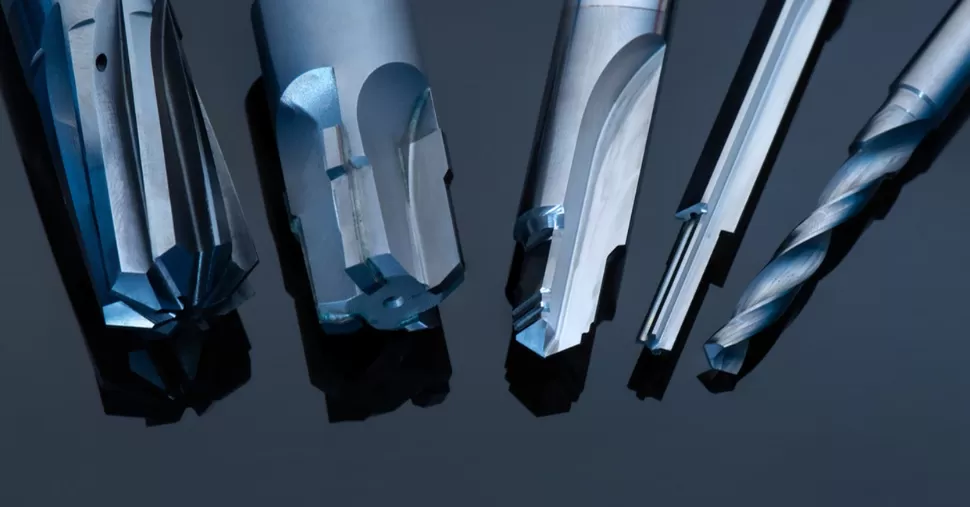

It’s also worth noting that the CNC milling machine parts mentioned in this article are just a few examples of the many types of parts available. Manufacturers can choose from a wide range of cutting tools, including taps, countersinks, and broaches, to name a few.

In conclusion, CNC milling machines offer a wide range of parts that can be used to produce high-quality components with precision and accuracy. By understanding the different types of CNC milling machine parts available and their applications, manufacturers can choose the right tool for the job and produce components that meet the necessary specifications.
